4 Programming: Fundamentals of NC, File Management,
Programming Aids, Pallet Management
4.3 Standard File Management
Use the standard file manager if you want to store all of
the files in one directory, or if you are used to working
with the file manager on old TNC controls.
Set the MOD function PGM MGT to Standard (see
Section 12.5) .
Calling the file manager
Press the PGM MGT:

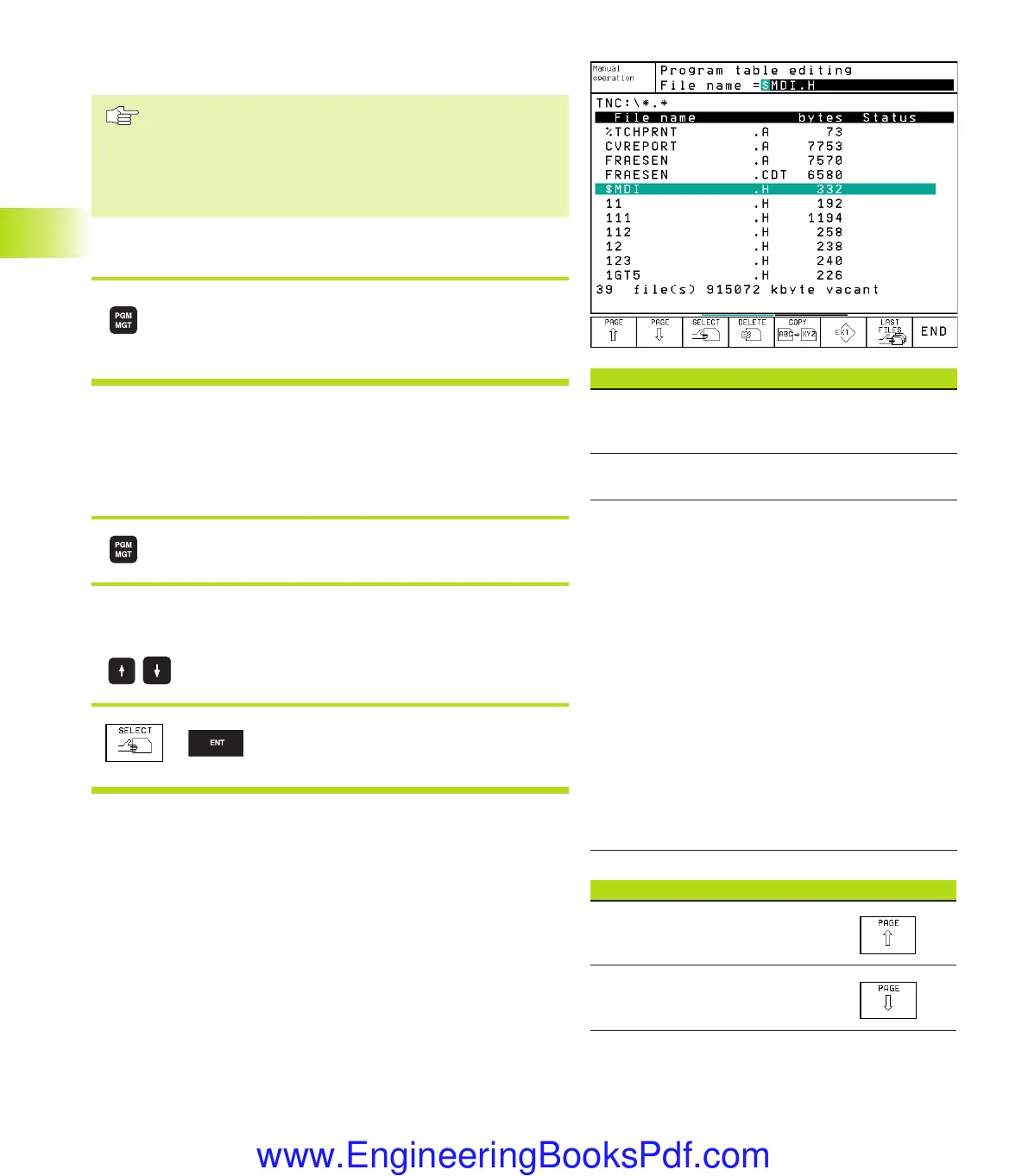

The TNC displays the file management window
(see Fig. at top right)
The window shows you all of the files that are stored in the TNC.
Each file is shown with additional information, see table at center
right.
Selecting a file
Calling the file manager
<
Use the arrow keys to move the highlight to the file you wish to
select:
Move the highlight up or down.
<
or Select a file: Press the SELECT soft key
or ENT
4.3 Standard File Management
Display of long file directories Soft key
Move pagewise up through
the file directory.
Move pagewise down through
the file directory
Display Meaning
FILE NAME Name with max. 16 characters
and file type
BYTE File size in bytes
STATUS Property of the file:
E Program is in the
Programming
and Editing
mode of operation
S Program is in the
Test Run
mode of operation
M Program is in a
Program Run mode of
operation.
P File is protected against
editing and erasure
(Protected)
