8 Programming: Cycles
200

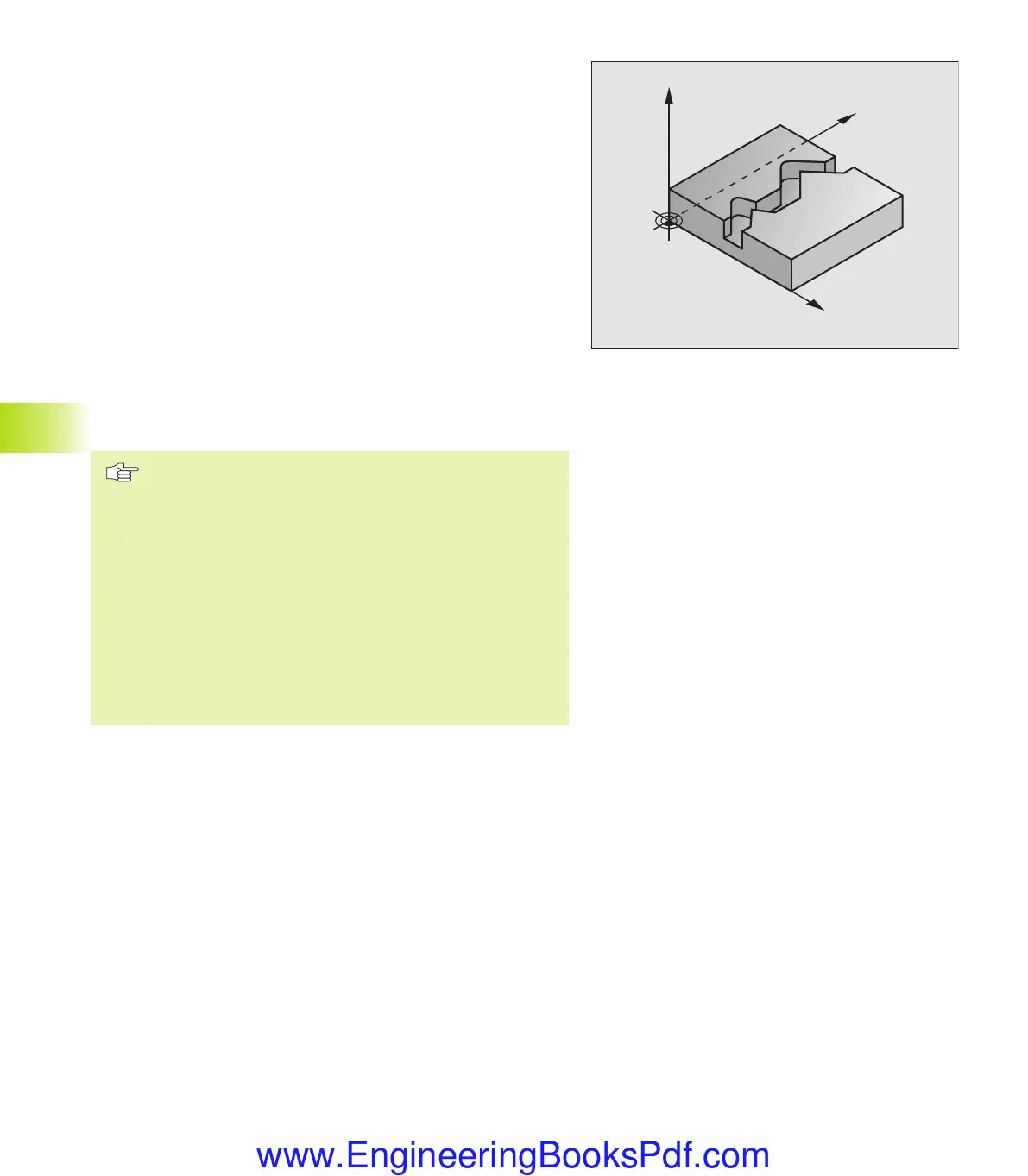

CONTOUR TRAIN (Cycle 25)
In conjunction with Cycle 14 CONTOUR GEOMETRY, this cycle
facilitates the machining of open contours (where the starting point
of the contour is not the same as its end point).
Cycle 25 CONTOUR TRAIN offers considerable advantages over
machining an open contour using positioning blocks:
■
The TNC monitors the operation to prevent undercuts and
surface blemishes. It is recommended that you run a graphic
simulation of the contour before execution.
■
If the radius of the selected tool is too large, the corners of the
contour may have to be reworked.
■
The contour can be machined throughout by up-cut or by climb
milling. The type of milling even remains effective when the
contours are mirrored.
■
The tool can traverse back and forth for milling in several infeeds:
This results in faster machining.
■ Allowance values can be entered in order to perform repeated
rough-milling and finish-milling operations.
Before programming, note the following:
The algebraic sign for the depth parameter determines
the working direction.
The TNC takes only the first label of Cycle 14 CONTOUR
GEOMETRY into account.
The memory capacity for programming an SL cycle is
limited. For example, you can program up to 128 straight-
line blocks in one SL cycle.
Cycle 20 CONTOUR DATA is not required.
Positions that are programmed in incremental
dimensions immediately after Cycle 25 are referenced to
the position of the tool at the end of the cycle.
Y
X
Z
8.5 SL Cycles
kkap8.pm6 30.06.2006, 07:03200
