8 Programming: Cycles
226

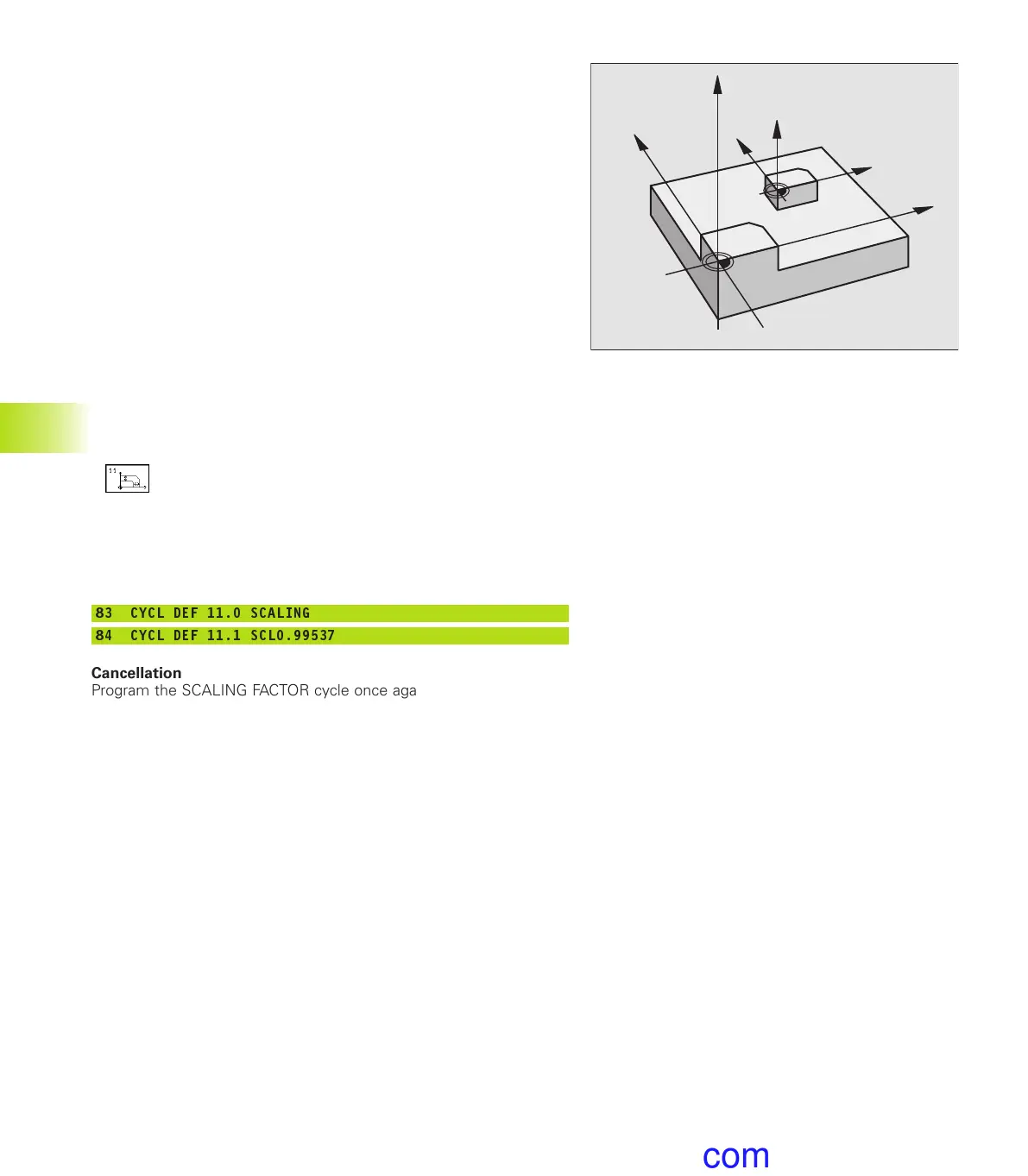

SCALING FACTOR (Cycle 11)
The TNC can increase or reduce the size of contours within a
program, enabling you to program shrinkage and oversize
allowances.
Effect
The SCALING FACTOR becomes effective as soon as it is defined in
the program. It is also effective in the Positioning with MDI mode of
operation. The active scaling factor is shown in the additional status
display.
The scaling factor can be applied
■
in the working plane, or on all three coordinate axes at the same
time (depending on machine parameter 7410)
■
to the dimensions in cycles
■ to the parallel axes U,V,W
Prerequisite
It is advisable to set the datum to an edge or a corner of the contour
before enlarging or reducing the contour.
ú Scaling factor ?: Enter the scaling factor SCL. The TNC
multiplies the coordinates and radii by the SCL factor
(as described under “Activation” above)
Enlargement: SCL greater than 1 (up to 99.999 999)
Reduction SCL less than 1 (down to 0.000 001)
Example NC blocks:
83 CYCL DEF 11.0 SCALING
84 CYCL DEF 11.1 SCL0.99537
Cancellation
Program the SCALING FACTOR cycle once again with a scaling
factor of 1.
You can also enter scaling factors for axis-specific scaling
(see Cycle 26).
8.7 Coordinate Transformation Cycles
Z
Z
X
X
Y
Y
kkap8.pm6 30.06.2006, 07:04226
www.EngineeringBooksPdf.com
