User Manual of Digital Video Recorder
45

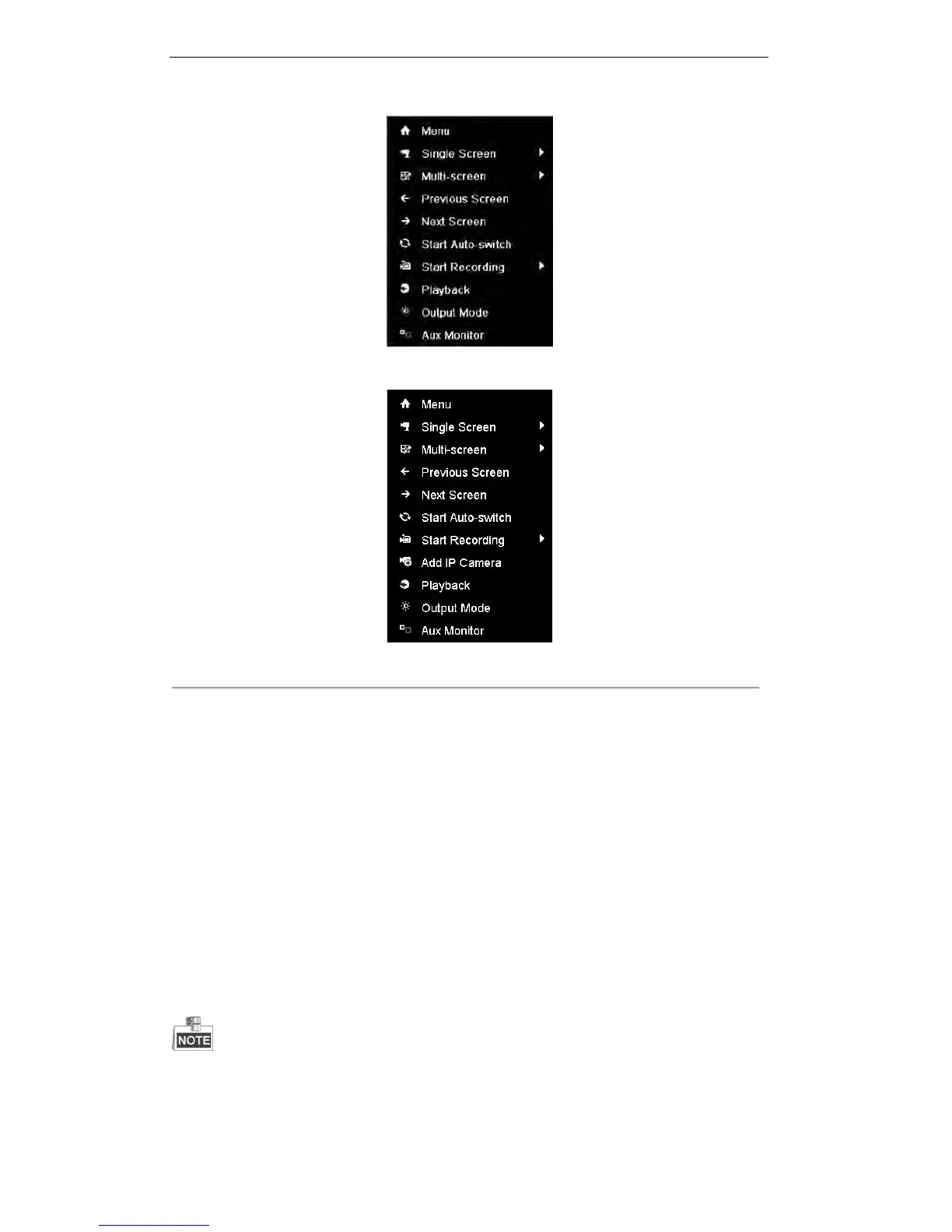

Figure 3. 1 Right-click Menu-DVR Series
Figure 3. 2 Right-click Menu-HDVR Series
3.2.3 Using an Auxiliary Monitor
Certain features of the Live View are also available while in an Aux monitor. These features include:
• Single Screen: Switch to a full screen display of the selected camera. Camera can be selected from a
drop-down list.
• Multi-screen: Switch different display layout options. Layout options can be selected from a drop-down
list.
• Next Screen: When displaying less than the maximum number of cameras in Live View, clicking this
feature will switch to the next set of displays.
• Playback: Enter into Playback mode.
• Output Mode: Set the video output mode to Standard, Bright, Gentle or Vivid.
• Main Monitor: Enter Main operation mode.
In the live view mode of the main output monitor, the menu operation is not available when Aux output mode is
enabled.
