User Manual of Digital Video Recorder
74
5.3 Configuring Motion Detection Recording
and Capture
Purpose:
Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event
takes place, the device can analyze it and do many actions to handle it. Enabling motion detection function can
trigger certain channels to start recording/capture, or trigger full screen monitoring, audible warning, notify the
surveillance center and so on. In this chapter, you can follow the steps to schedule a record which triggered by
the detected motion.
Steps:
1. Enter the Motion Detection interface.
Menu > Camera > Motion

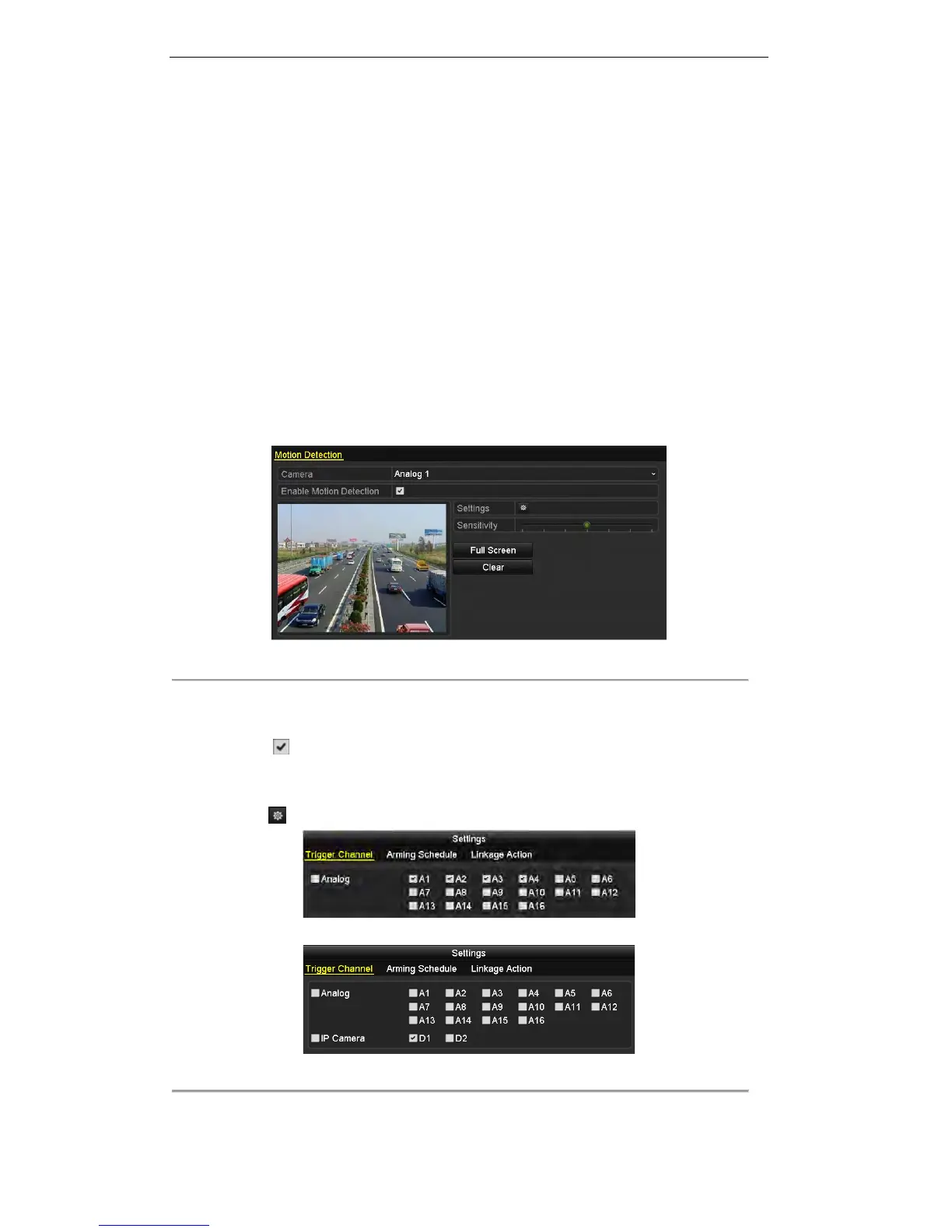

Figure 5. 18 Motion Detection
2. Configure Motion Detection:
1) Choose camera you want to configure.
2) Check checkbox to enable motion detection.
3) Drag and draw the area for motion detection by mouse. If you want to set the motion detection for
all the area shot by the camera, click Full Screen. To clear the motion detection area, click Clear.
4) Click to configure the motion detection settings in the pop-up message box.
Figure 5. 19 Motion Detection Settings for DVR Series
Figure 5. 20 Motion Detection Settings for HDVR Series
