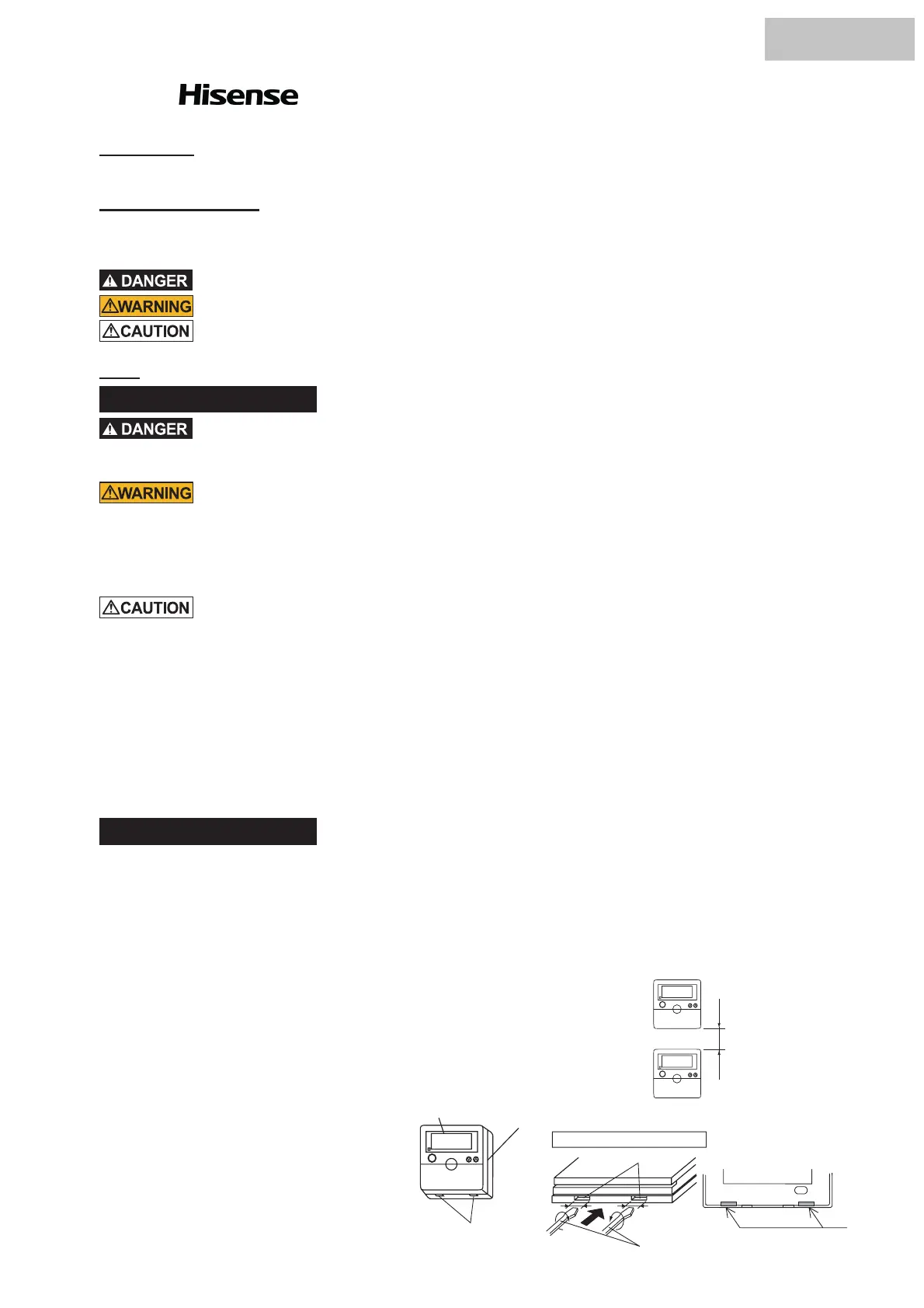

IMPORTANT:
READ AND UNDERSTAND THIS MANUAL BEFORE USING THIS CENTRAL STATION.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPORTANT NOTICE:
#
No part of this manual may be reproduced without written permission.
#
Signal words (DANGER, WARNING and CAUTION) are used to identify levels of hazard seriousness.
Defi nitions of identifying hazard levels are provided below with their respective signal words.
: Immediate hazards which WILL result in severe personal injury or death.
: Hazards or unsafe practices which COULD result in severe personal injury or death.
: Hazards or unsafe practices which COULD result in minor personal injury or product or property
damage.
NOTE : Useful information for operation and/or maintenance.
#
DO NOT pour water into the central station. This product is equipped with electrical parts. If poured, it will cause
a serious electrical shock.
[2.1 Selection of Installation Place]
'
1) Select a suitable place for handling and determine the installation place of the controller with the customer's
acceptance. Do not install the central station at such place as;
#
where children can touch
#
where the air from the air conditioner is directly discharged
[2.2 Before Installation]
'
This packing contains the following parts ([A] and [B]);
[A] Central Station (Q'ty: 1),
[B] Screw <M4 x 16L> (Q'ty: 2, for Fixing the Holding Bracket onto the Wall)
[2.3 Installation Place]
'
1) In case of installing the central stations in vertical direction, keep
a distance more than 50mm between the central stations vertically.
If the distance is insuffi cient, the front cover of the central station
can not open wide enough.
[2.4 Installation Procedures]
'
1) Insert the edge of the screwdriver into the
slot parts at the bottom of the case, push
and turn the screwdriver and remove the
control part from the power supply part.
Do not insert the screwdriver into the
nail near the slot part, or the nail will be
damaged.
1. Safety Summary
2. Installation W
ork
Figure Seen from Bottom Side
Slot Part
Approx.
6mm
Screw Driver
Slot Part
Power Supply Part
Control Part
Nail
More than 50mm
Installation & Operation Manual
Central Station (Model: )
#
DO NOT perform installation work and electrical wiring connection by yourself. Contact your distributor or dealer
of Hisense and ask them for installation work and electrical wiring by service person.
#
When performing the insulation test, withstand voltage test and so on, ensure to remove the FG terminal
connection of TB1. If performing aforementioned test with the FG terminal connected, the malfunction will occur.
#
DO NOT turn OFF the power supply within 3 minutes after operation by the controller. It may cause the malfunction.
#
DO NOT install the indoor unit, outdoor unit, central station and cable at such places as;
1. where there is oil vapor and the oil is dispersed
2. where the hot springs are near (in a sulfuric environment)
3. where generation, fl owing, staying or leaking of fl ammable gas is detected
4. where the sea is near (in the saline environment)
5. an acid or alkaline environment
#
DO NOT install the indoor unit, outdoor unit, central station and cable within approximately 3 meters from strong
electromagnetic wave radiators such as medical equipment. In case that the central station is installed in a place
where there is electromagnetic wave radiation, shield the controller and cables by covering with the steel box and
running the cable through the metal conduit tube.
#
In case that there is electric noise at the power source for the indoor unit, provide a noise fi lter.
HYJE
‐ D02H
HYJE-D02H
To Next Page
