c. Select of Zone To Be Set.
Depress the "ZONE" switch, and the fl ickering indication of zone No.
is changed in order as shown below.
* The zone, in which there is no group with the master unit already set,
is not indicated.
a. Screen Change for Slave Unit Setting.
Keep depressing the "CHECK" switch for 3 seconds during all the
indoor unit is stopped (with "RUN" indicator OFF). The "CHECK"
indicator turns ON, and it shows the state is changed to the CHECK
mode. When "1" (master unit setting mode) is turns ON at the
7-segment indicator for checking, depress the "CHECK" switch again,
and then the checking indication is changed to "2" (slave unit setting
mode).
4.2 Setting of Slave Unit
When using the remote control switch ( ) or receiver kit
station automatically set the slave unit.
Check for the setting state by the slave unit setting mode.

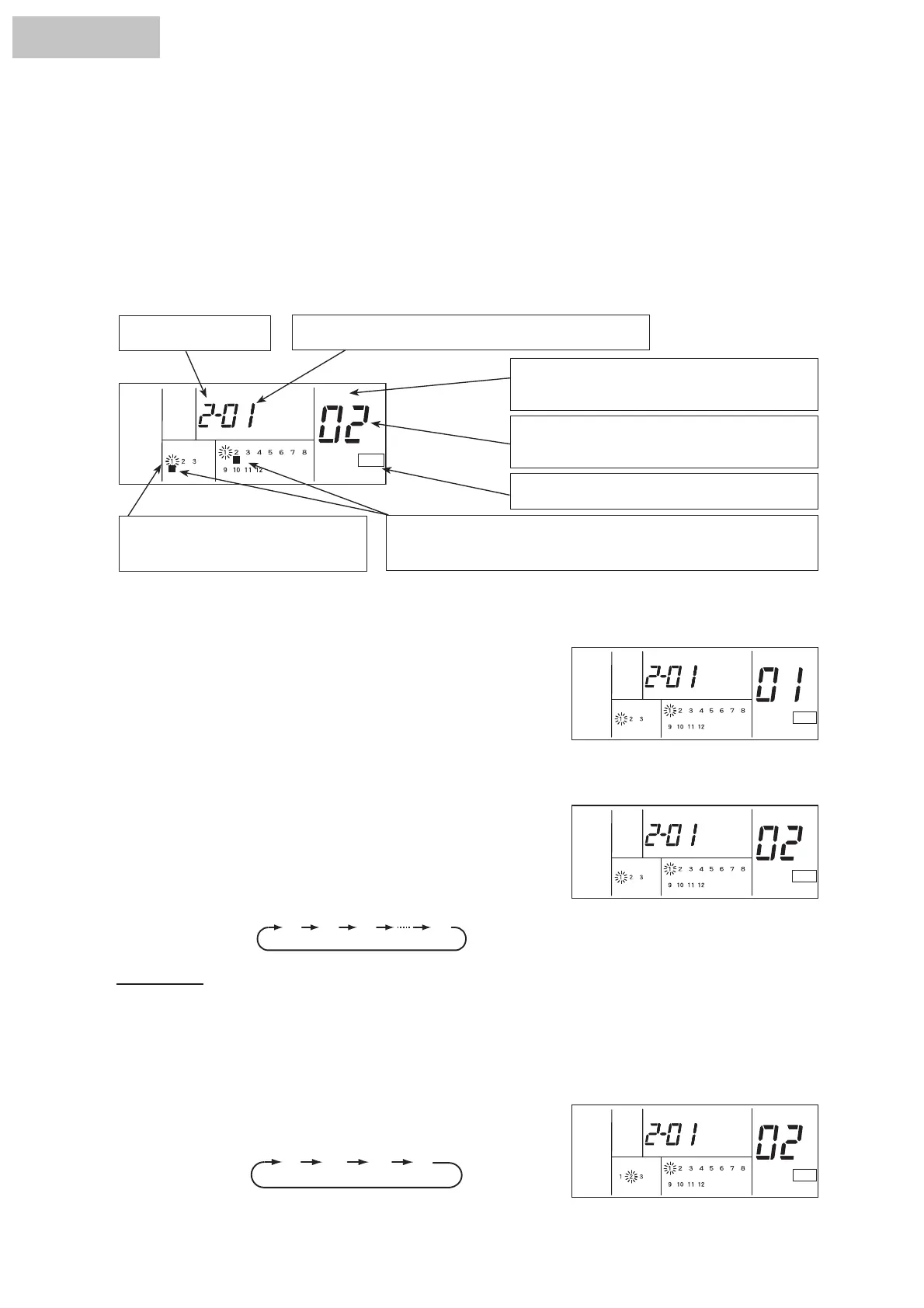

(1) Indication of Slave Unit Setting Mode
When the central station is changed to the slave unit setting mode, the LCD indication on the central station is as
shown below. The indication of the setting target zone and the group to be set is fl ickered. The Ref. No. and I.U.
Add. indicates the address of the indoor unit with the smallest address among the slave units of the group to be
set. The "
!
" indication of zone and group fl ickers in case that the slave units are already set. In case that the
slave units are not set, "- -" is indicated at Ref. No. and I.U. Add.
SET
CHECK
ZONE GROUP
"2" shows the slave unit
setting mode.
Ref. No. of Indoor Unit To Be Set
(Can be changed by depressing the "
,
" (TEMP) switch.)
When the "SET" indication appears, the indicated
indoor unit is set as the slave unit. (When "SET"
does not appear, the slave unit is not set.)
Address of Indoor Unit To Be Set
(Can be changed by depressing the "
,
" (TEMP)
switch.)
When the "CHECK" indication appears, the central
station is in the check mode.
Only the zone including the group with
the master unit already set is indicated.
The zone to be set is fl ickered.
"
!
" shows the zone and the group with indoor units to be set (The
above fi gure shows that the indoor unit of Ref. No.1 and I.U. Add. 2 is
set as the slave unit of zone 1, group 2).
CHECK
ZONE
GROUP
CHECK
ZONE GROUP
CHECK
ZONE GROUP
(2) Procedure of Slave Unit Setting
1 2 3 4
b. Select the refrigerant system address and indoor unit address to set.
The refrigerant system address is changed by depressing "
,
" (TEMP)
switch and the indoor unit address is changed by depressing "
,
"
(TEMP) switch in order as shown below. In this case, the switch is
kept depressing, and the indication of the refrigerant system address
or the indoor unit address is fast-forwarded.
00 01 02 63
ATTENTION:
A. Ref. No. with no indoor unit connected and I.U. Add. not connected are not indicated.
B. When the selected unit is already set as slave unit, the zone and the group No. indication "
!
" of the unit
and "SET" indication appear.
C. The indoor unit already set as the master unit is not indicated.
The above fi gure shows the case of
selecting Ref. No. "1" and I.U. Add. "2".
The above fi gure shows the case of
selecting Zone "2".
HYXE‐A01H
(HYRE-V01H), after the setting of master unit, the central
HYJE-D02H
