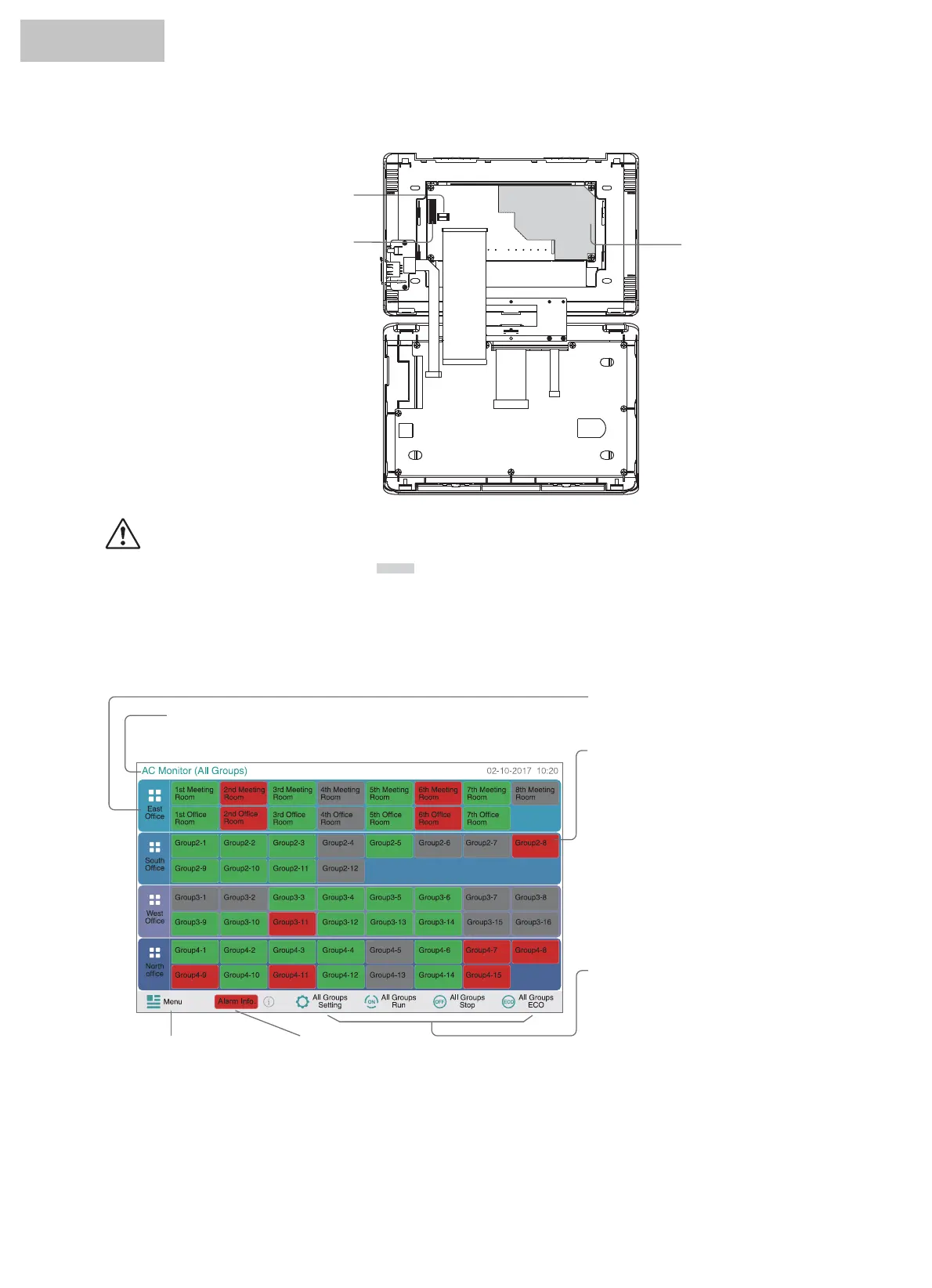

When Unit Body is opened
DANGER
DO NOT remove the covers of marked with “ ” for safety. If remove these and touch inside, it may cause a serious
electrical shock.
Present Indication
To display the present
indication (all groups)
Block Button
To change the screen display into “Block” AC
Monitor (Block) indication by touching this button.
Group Button
To indicate the operating condition of each
group as follows:
Green : Run
Gray : Stop
Red : Abnormal
If the target group button is touched, “Settings”
of the target group screen will be indicated.
(Refer to Run/Stop for each group section)
“All Groups Stop” Button
To stop all the units simultaneously which are
controlled by the central controller.
“All Groups Run” Button
To run all the units simultaneously which are
controlled by the central controller.
“Menu” Button
To indicate the menu items
such as “Filter Sign Reset”,
“Schedule Setting”, etc.
To indicate the abnormality
Tap the button for details.
“Alarm Info.” Button
“All Groups Setting” Button
To change the setting of the units simultaneously
which are controlled by the central controller.
“All Groups ECO” Button
To start ECO mode of the units simultaneously
which are controlled by the central controller.
3.1 SCREEN DISPLAY
3.1.1 “AC Monitor(All Groups)”
Fuse for Power Supply
For protection of power
circuit
Fuse for H-NET Transmission Line
For protection of H-NET transmission line
SP1
For terminating resistance
It is used for transmission line recovery.
HYJM-S01H
To Next Page
