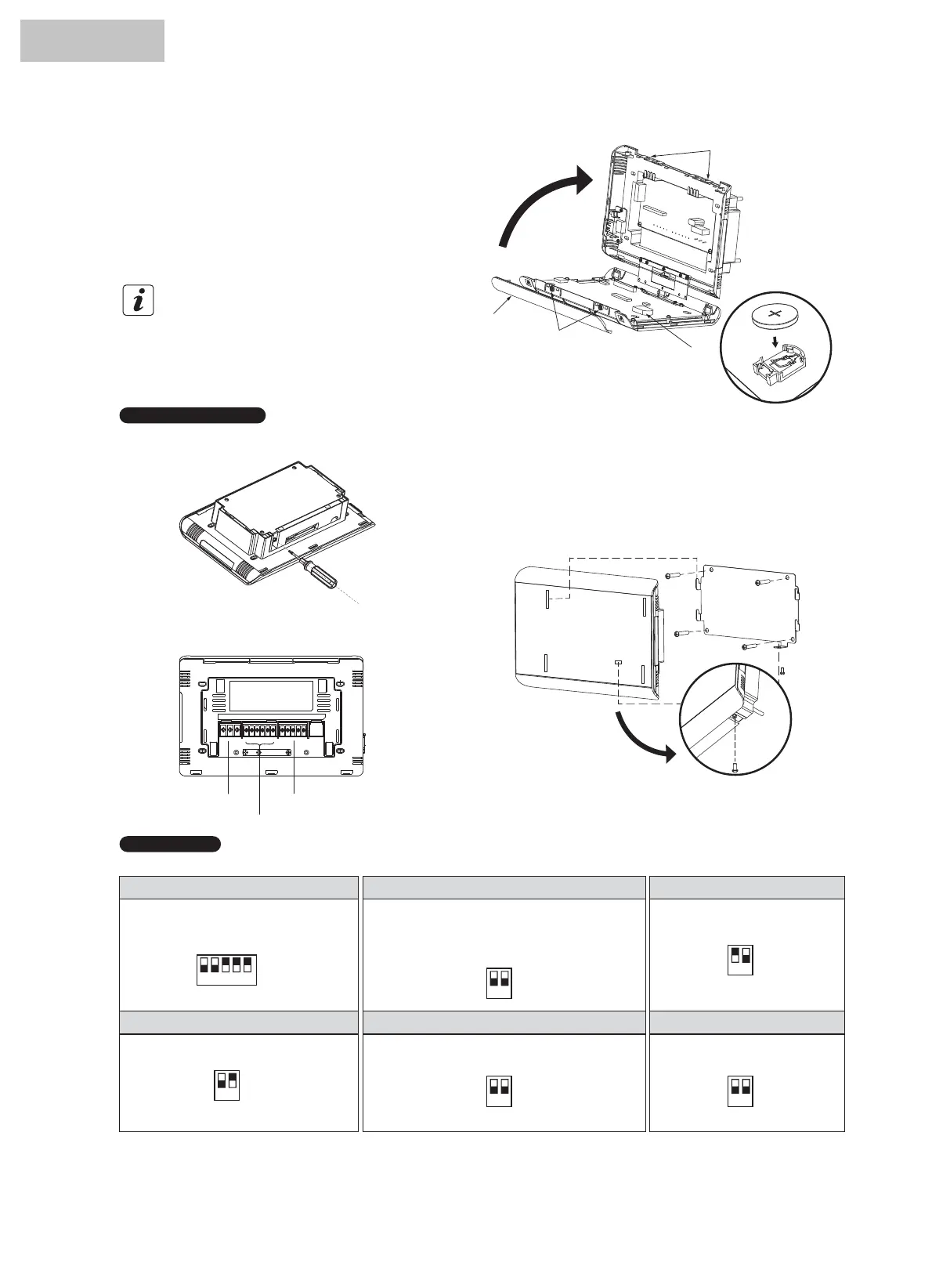

8. Install the battery as shown.
9. Close the unit body until hearing snapping sound, and make
sure if the top and bottom close fully. At this time, check if the
top side cover is fixed and closed firmly.
Catch for fixing
Top cover
Convex part
Install battery
Switch setting:
Factory defaults:1 OFF 2 OFF 3 ON 4 ON 5 ON
Control Board Coding Switch SC2
ON
OFF
12345
ON
OFF
12
ON
OFF
12
ON
OFF
12
Factory defaults:1 OFF 2 ON
Factory defaults:1 OFF 2 OFF
1 ON After the fuse failure though the code shield can continue
to use
2 ON Connect the terminating resistor and capacity to the H-NET
communication line
Factory defaults:1 OFF 2 OFF
1 ON 2 ON Connect the terminating resistor to the RS485
communication line
NOTE
The life cycle of battery is 1-2 years.Please change the battery
after running out.
Control Board Coding Switch SC1
Power Board Coding Switch SP2
Power Board Coding Switch SP1
ON
OFF
12
ON
OFF
12
Factory defaults:1 ON 2 OFF
Factory defaults: 1 OFF 2 OFF
Communication Board Coding Switch S2
Communication Board Coding Switch S1
123456
AC 100 ~ 240V H-NET(Non-pole)
Terminals for external input/output
Wall Surface Mounting:
1. Take off the rack as shown.
2. Open the terminal cover, and connect the wring to the
terminal of controller.
3. When the connection is finished, the wires shall be fixed with a
press plate.
4. Cover the rear cover and fix the cover with 2 screws (M3x6mm)。
6. Close the terminal cover. Fix the rack by accessory fixing
screw (M3.5 x 25mm) .
7. Hang the controller on the rack . Fix the controller by accessory
fixing screw (M3 x 6mm).
5. Install the battery.(The installation method as above) .
HYJM-S01H
