NOTE:
The above shows the setting temperature range for standard model. The setting temperature range may be different
according to the connected unit model.
<FAN SPEED>
Depress the "FAN SPEED switch.
By depressing the "FAN SPEED" switch, the indication is changed
in the following order;
HIGH MED LOW
The above figure shows the case of setting
"MED" fan speed.
NOTES:
#
In case of dry operation, the fan speed is automatically changed and fi xed at the "LOW" fan speed.
In this case, the fan speed can not be changed (The indication remains at the setting condition).
#
The above fi gure shows the indication of the standard unit. There is a case where the fan speed is not indicated
according to the unit connected.
<LOUVER ANGLE>
Depress the
"
AUTO LOUVER" switch.
Every time the "AUTO LOUVER" switch is depressed,
the indication of the louver angle is changed.
Depress the "AUTO LOUVER" switch at the position
of
, the indication is changed to and
this indication indicates the auto-swing.
Depress the "AUTO LOUVER" switch again, the indication is
turned to
.
NOTES:
#
The above indications show the case of setting operation mode for "ZONE 3, GROUP 6".
The same setting procedure shall be performed for other groups.
#
The temperature, fan speed and louver angle can be set while the unit is stopped or in operation.
The above fi gure shows the case of setting
auto-swing.

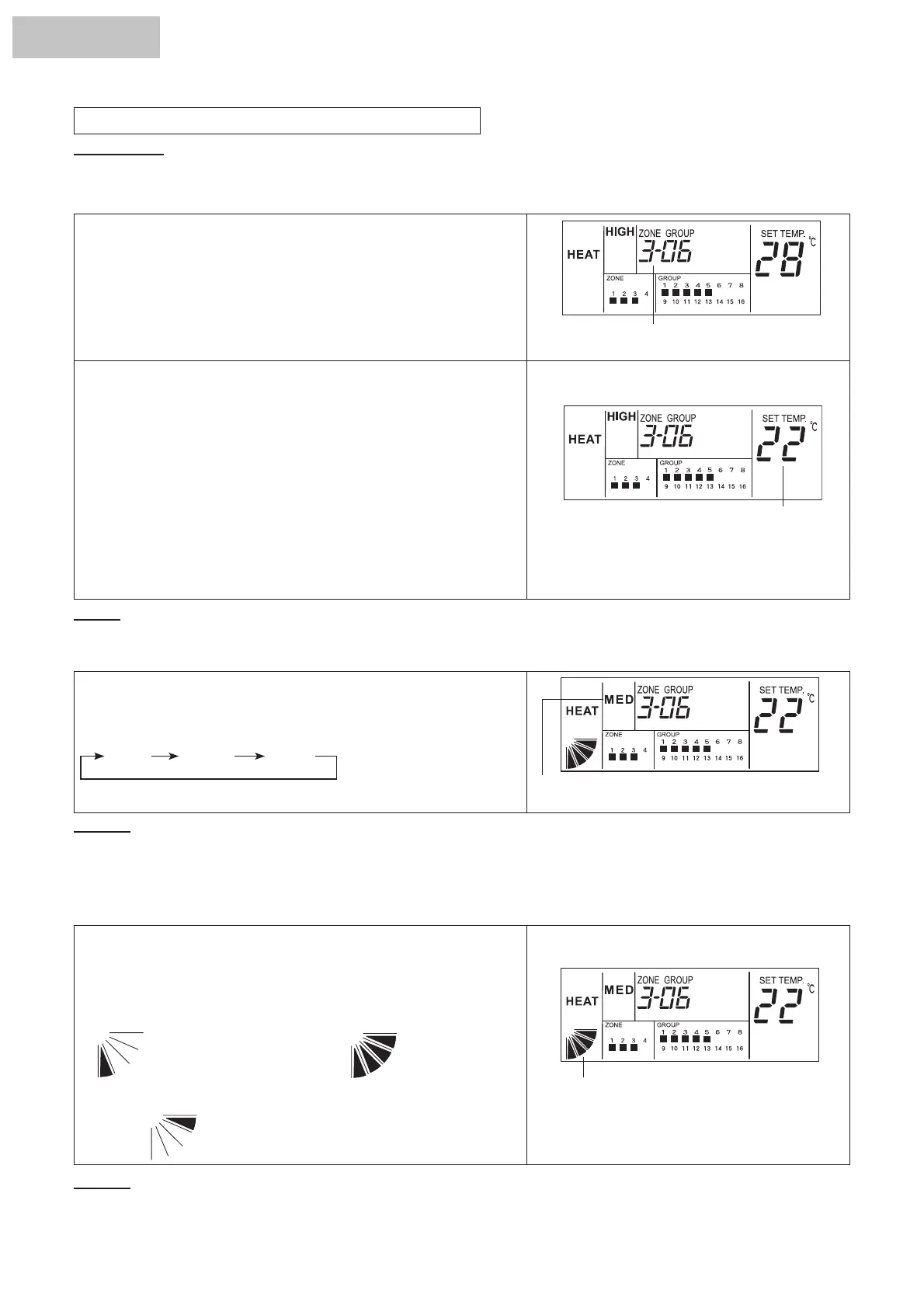

C. Setting of Temperature, Fan Speed and Louver Angle
ATTENTION:
A. Do not touch the "CHECK" switch. The "CHECK" switch is only for service use.
B. When the "CHECK" switch is depressed by a mistake and the central station is changed to the check mode,
depress the "RESET" switch to cancel.
1. Depress the "ZONE" switch and the "GROUP" switch and select
the setting target.
(Refer to item 2 of "A. Setting Target Selection and Monitoring
Unit Operation Status" .)
The above fi gure shows the case of selecting
"ZONE 3, GROUP 6".
<TEMPERATURE>
Set temperature by depressing "TEMP" switch.
Depressing
,
switch, the temperature is increased by 1
o
C
(Maximum: 30
o
C)
Depressing
,
switch, the temperature is decreased by 1
o
C
(Minimum: 19
o
C (for "COOL", "DRY" and "FAN" mode), 17
o
C (for
"HEAT" mode))
When depressing
,
for 3 seconds at set temperature at 30
o
C,
or depressing
,
for 3 seconds at the minimum temperature,the
temperature is not set and the indication of setting temperature
is “- -”. In this case, depress
,
or
,
, the indication of setting
temperature returns to the minimum temperature or 30
o
C.
The above fi gure shows the case of setting 22
o
C.
HYJE-D02H
