FUNCTIONS
The table below shows the main functions.
4.1 SELECTION OF INSTALLATION PLACE
4 INSTALLATION WOR.
Select a suitable place for handling and determine the installation place of the central controller with the customer’s acceptance.Do
not install the central controller at such places as:
- Where children can touch.
- Where the air from the air conditioner is directly discharged.
Prior to the installation work, ensure that foundation is flat, level and sufficiently strong and then fix the unit securely. If the
foundation is not strong enough,it may lead to injuries caused by falling of the product, electrical shock or fire.
4.2 BEFORE INSTALLATION

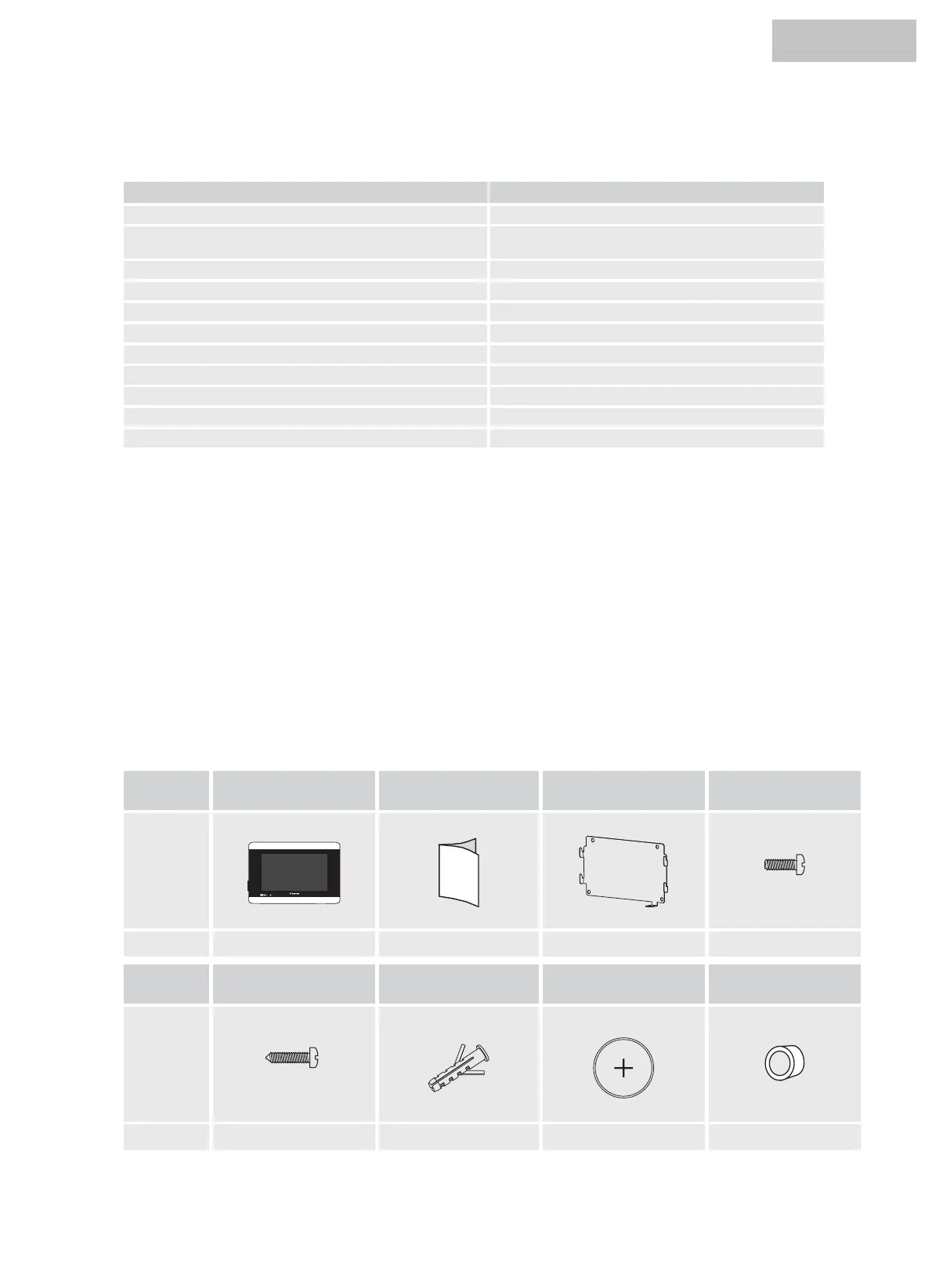

When unpacking central controller HYJM-S01H, check that it has not suffered damage during transport.
Check to ensure that the following parts are packed with the central controller.
Menu FunctionOperation Procedure
Swing Louver Direction
Setting Temperature
Permitting/Prohibiting Operation from Remote Control Switch
Start ECO/Set Temperature Limitation
Accumulated Operation Time of Unit
Contact Information
Language Setting
ECO Setting
Display of Specified Block (All the remote control groups in the block
which are connected to the central controlle.)
Simultaneous Run/Stop for All Group
Simultaneous Run/Stop for Block
Run/Stop for Each Group
Operation Mode Change
Fan Speed Setting
Filter Sign Reset
Schedule Operation
Adjusting Date/Time
Touchscreen Cleaning
Registering Groups/Blocks Name
Screen Display Setting
Display of All Groups (All the indoor central controllers.) Menu(Menu Items and Details)
Item
Apperarance
Q’ty
Central Controller
HYJM-S01H
1
Installation and
Operations Manual
1
Wall Mouting
Metal Plate
1
Item
Apperarance
Q’ty
Screw
4
M3x 20mm
Magnetic Ring
1
Battery
1
Plastic
Expansion Bolt
4
Screw
4
M3.5x 25mm
HYJM-S01H
To Next Page
