2.7.13 Cabling Diagram and Parts List
—Track Ball

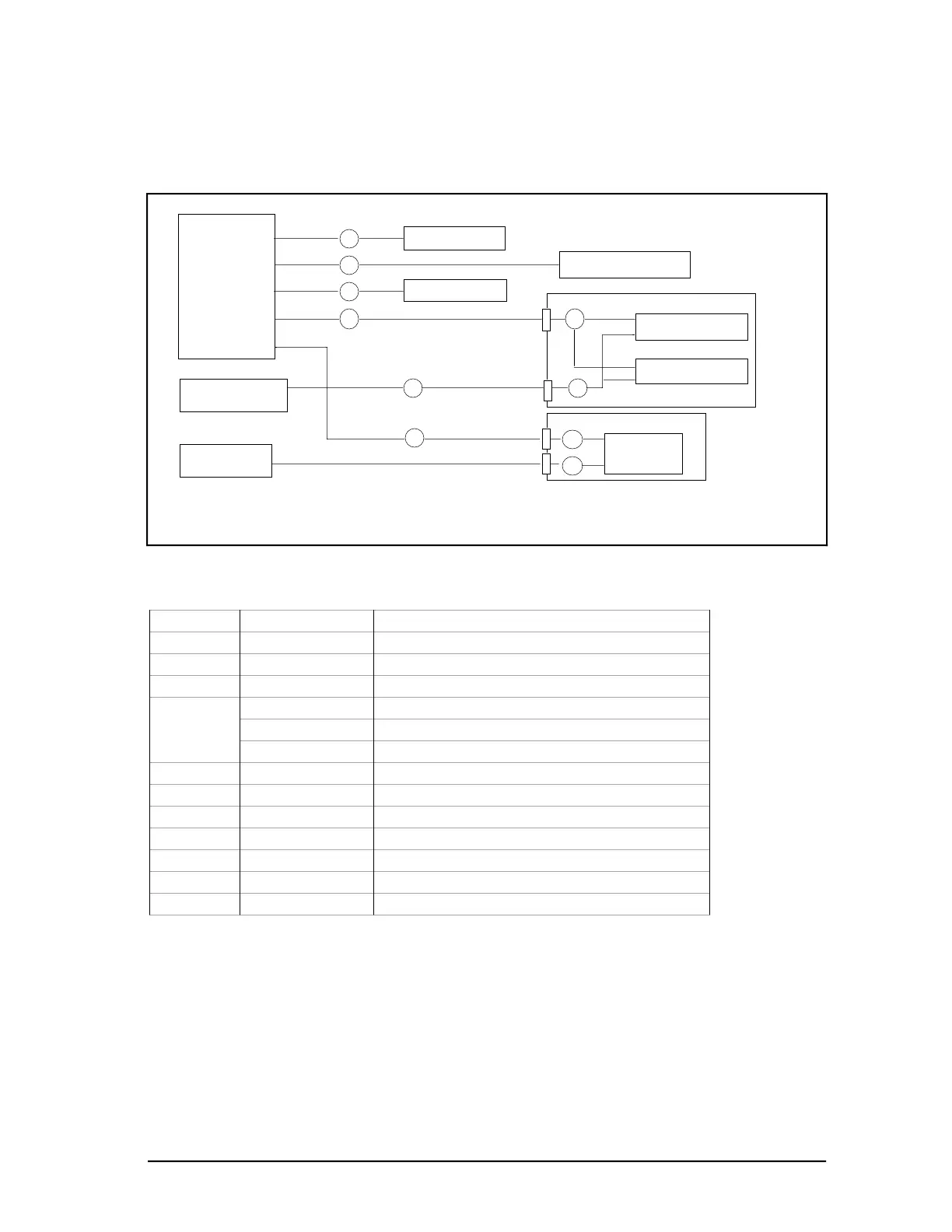

Cabling for the Universal Station is shown in the following figure and table.
53417
Engineering
Keyboard
Enclosure
Operator Keyboard
Monitor
Printer
Cartridge Drive 0
EPDGC I/O
Video
Cursor
Printer
SCSI
Keyboard
1
4
5
2
7
6
Mouse or Trackball
Five-Slot
Module PS
8
J
8
J
9
9
Cartridge Drive 1
10
11
Figure 2-14 — Enhanced Micro TDC 3000 Cabling — Standard
Table 2-2 — Micro TDC 3000 Cabling — Standard (Trackball)
Ref. # Part Number Application Notes
1 51192126-200 Video Cable
2 51308099-100 Mouse/Trackball Interface Cable
3 Not Applicable
4 51308103-003 Printer Cable – 3 meters/9.8 ft.
51308103-008 Printer Cable – 8 meters/26.3 ft.
51308103-015 Printer Cable — 15 meters/49.2 ft.
5 51192054-101 Cable,SCSI Shielded, 50 position
6 51305070-200 Cable, SCSI
7 51308110-100 Cartridge DC Power Cable
8 51308109-100 Cartridge DC Power Cable (in Enclosure)
9 51308105-200 Keyboard Interface Cable
10 51308104-100 Keyboard Interface Cable (in Keyboard Tray)
11 51304496-046 Engineer"s Keyboard Cable (in Keyboard Tray)
