2.8.4 Optional Computer Gateway CLI/A I/O
The optional computer gateway adds one or two connections to a host computer.

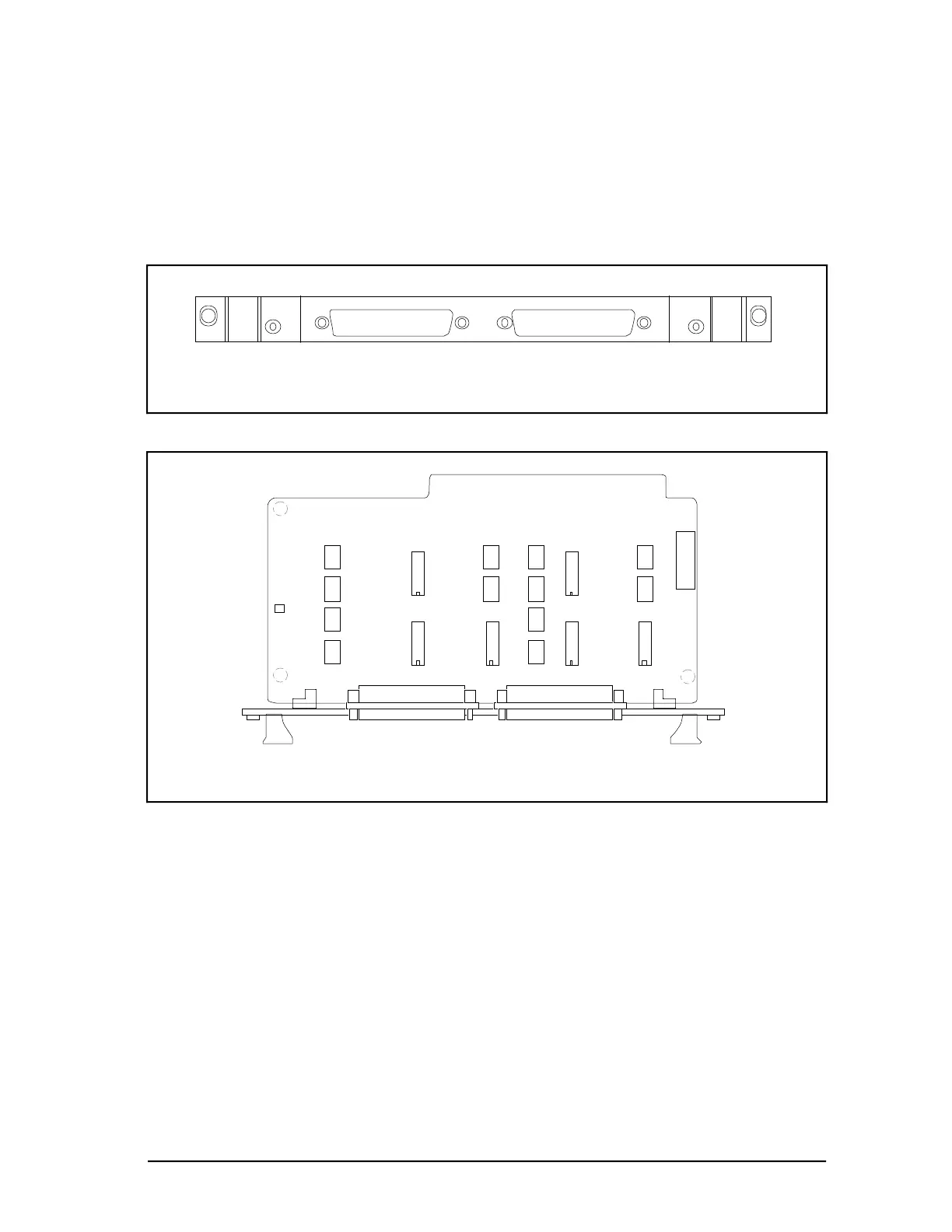

Figure 2-17 and Figure 2-18 show the physical characteristics of the Computer Gateway
I/O board designed to follow the EMC Directive. The board design remains the same as the
old version. A bulkhead face plate is added to the PWA and supports the two D-type
connectors. The cables are changed to braid over foil shield with 360 degree metalized
plastic back-shells.
53371
JB RS-449 JA
Figure 2-17 — CLI/A Face Plate
53404
ASSY NO. 80360230-001
REV G
JB JA
BAR CODE
Figure 2-18 — CLI/A I/O Board
