System architecture Galaxy Flex Installer Manual
8
System architecture

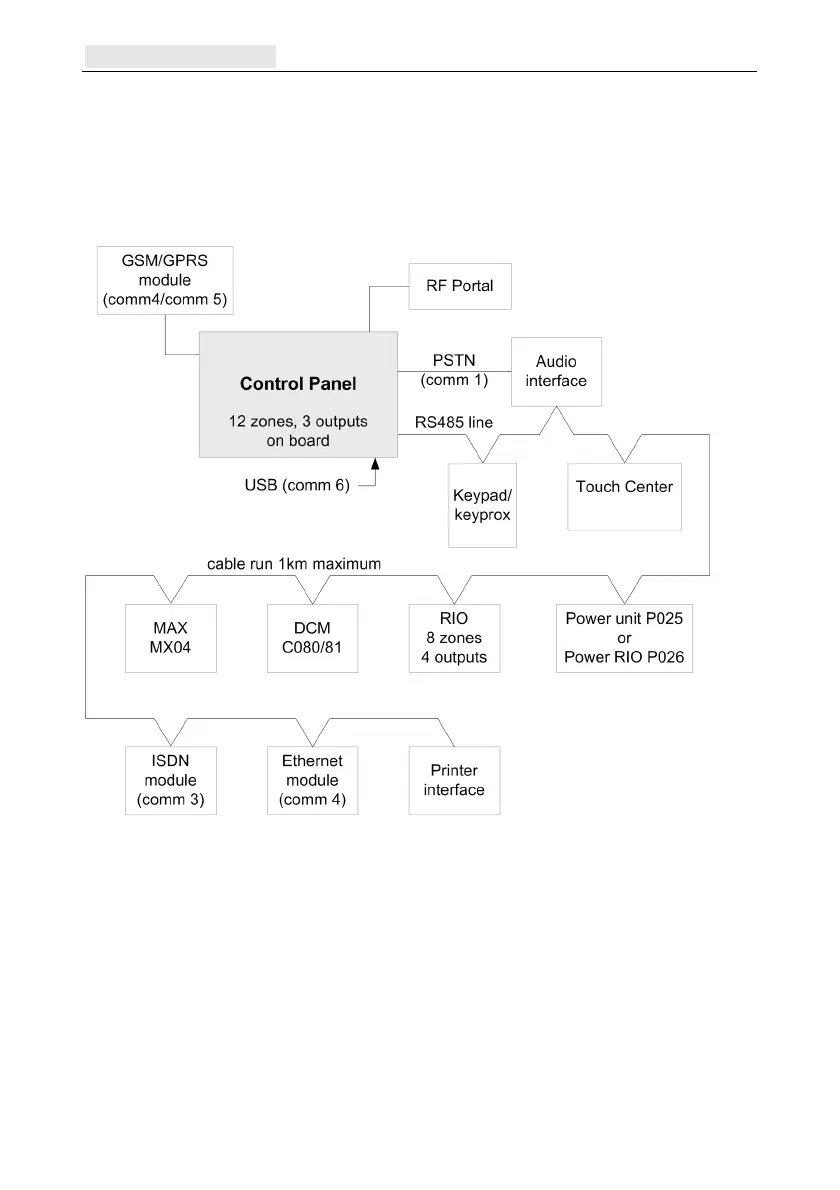

Figure 2 shows the full range of peripheral devices that can be connected to the system via
the RS485 data bus or to other specific connection points on the control panel PCB (see
page 10).
Figure 2 System configuration
