8.2.4 Mapping LED Points

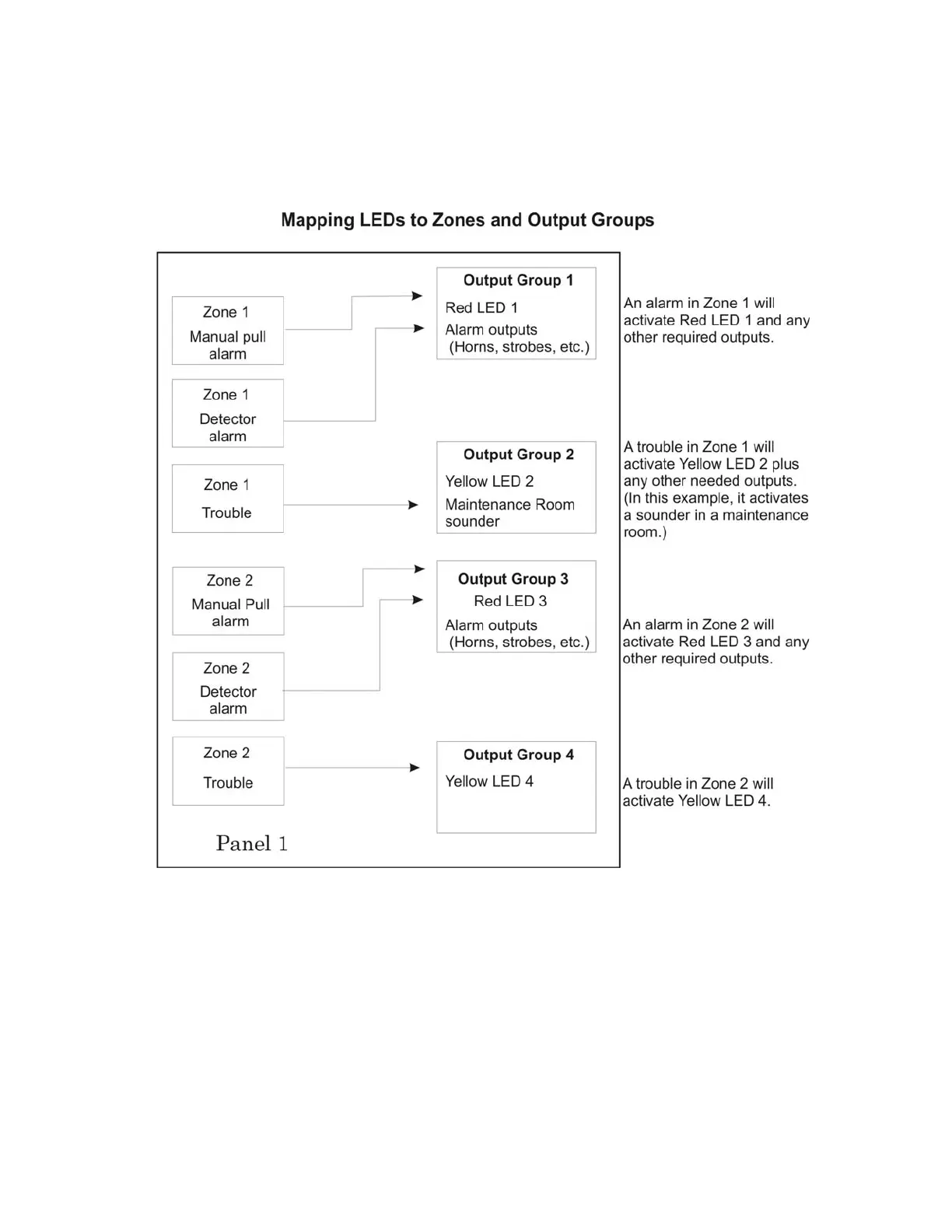

Figure 8-7 is a simple example showing how LED points are mapped to zones and output groups. Typically you

would create two output groups for each zone, one for alarms and one for troubles. (LED points are available

when models 5865-3/4 and/or 5880 are used with the system).

Figure 8-7 Example of LED Points Mapped to Output Groups

(Applies to Models 5865-3/4 and 5880)
