4.12.2 5865 Mounting
Mount the 5865-4 to a standard 4-gang electrical box. Mount the 5865-3 to a standard 3-gang electrical box. In
Figure 4-43, the 5865-4 attached to a 4-gang box is used as an example.

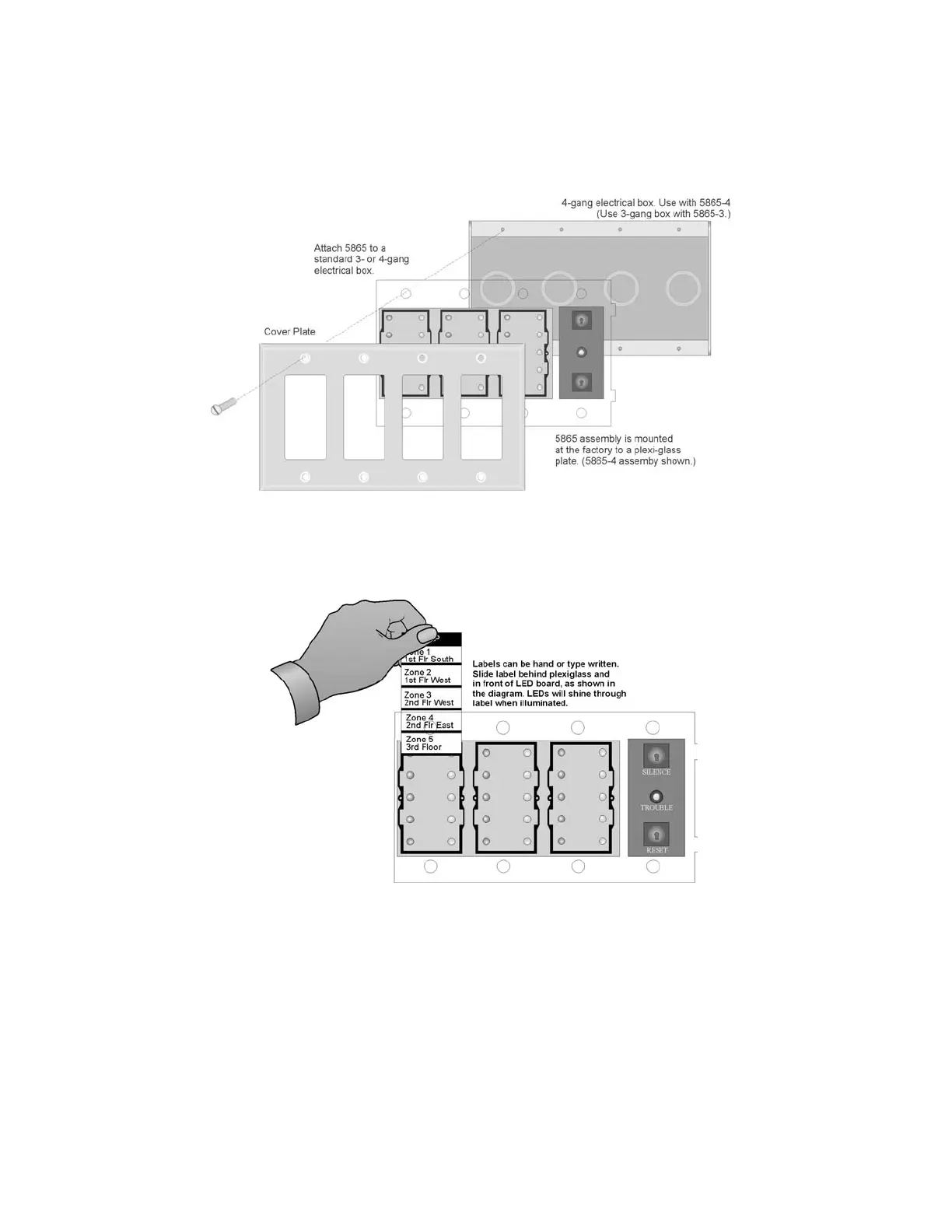

Figure 4-43 5865 Mounting Example
The 5865 ships with a set of zone description labels that can be inserted into the 5865 board assembly. These
labels can be used in a typewriter or can be written on by hand. Slide the labels under the plexiglass as shown in
Figure 4-44. The LEDs will show through the label when illuminated.
Figure 4-44 Inserting Zone Description Labels
