7. Select the amplifier and circuit for the audio to play through during programming. A user would generally
pick the audio circuit that is in closest proximity to them.
Note: The VCM will light the green Select Key LED for message slots that are occupied.
If a message is already
stored in the desired slot, then you must erase the message first. (see Section 11.8.3).
8. Press ECS Message Key 1 to enter the message slot selection mode. Then, press the Select Key 1-15 that
corresponds to the message slot that you wish to record to. The associated Select Key red LED will begin
flashing, indicating that the message slot is ready for recording.
9. Simultaneously press ECS Message Key 3 and start playing the audio source on the PC or laptop.
10. When the audio file from the PC is finished playing, press ECS Message Key 3 again to stop the recording.
The Select Key green LED will come on.
11. To playback the recorded message, press the Select Key 1-15 that was just recorded to.
Recording with Aux Audio Input Example:
The user wants to record into memory slot 2 via the Aux Audio Input channel.
Upon entering the Local Recording mode via the keypad menu, the VCM will light the Select Key green LEDs
1-15 for each occupied message slot.
If a message already exists in message slot 2, it must first be erased. Press ECS Message Key 8, then press Select
Key 2, (see Section Figure 11.8.3 on page 15). When the message has been erased Select Key 2’s green LED will
turn off.
To record a message, press ECS Message Key 1, then press Select Key 2 (this will use message slot 2 for the
recording). Select Key 2's red LED will begin flashing.
Press ECS Message Key 3 while simultaneously pressing play on the PC to start recording the Aux Audio Input.
When the PC message is done, press ECS Message Key 3 to stop recording. Select Key 2's red LED will stay on
until processing is completed. Select Key 2's green LED comes on after the recording is completed.
Pressing Select Key 2 will start a playback of the recorded message.

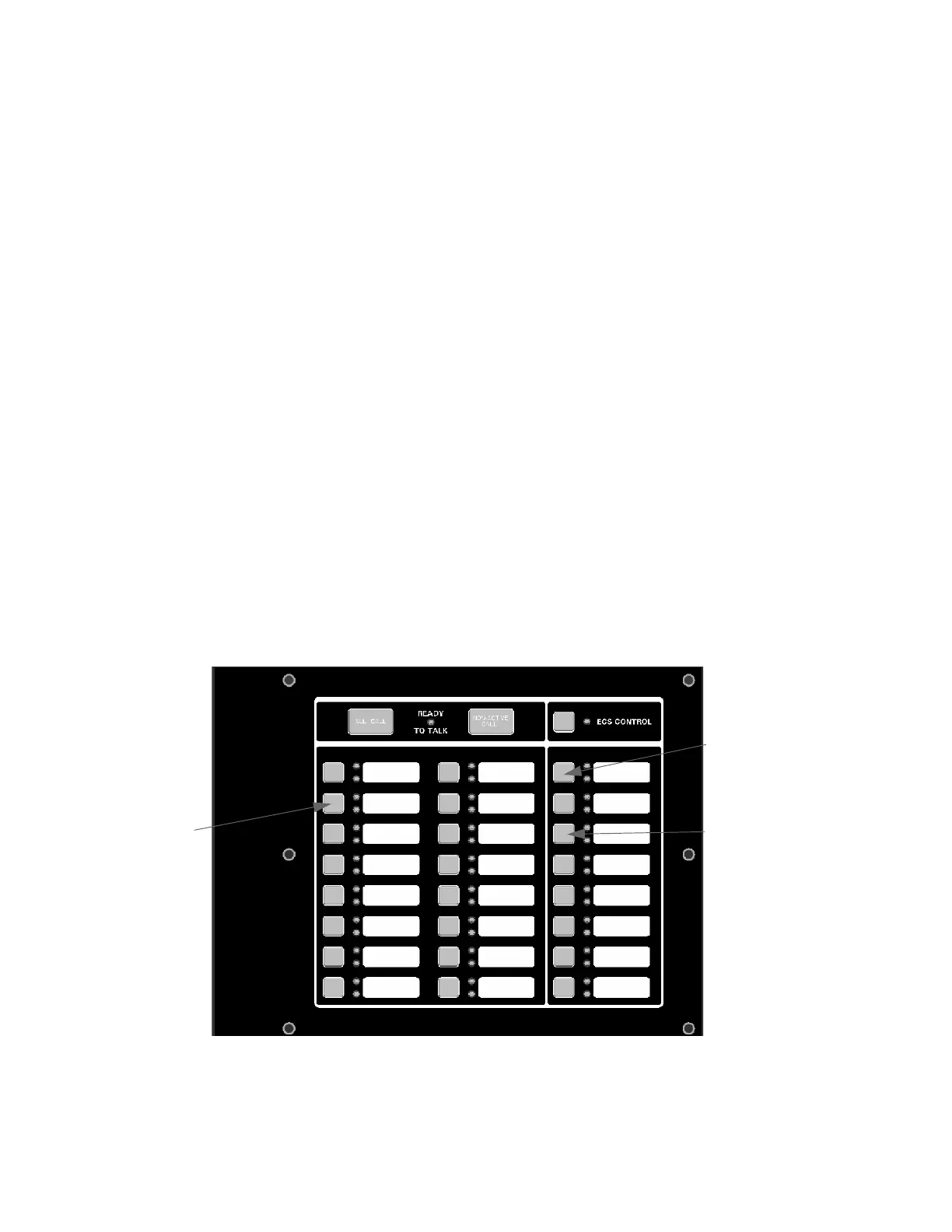

Figure 11-6 Aux Audio Input Example
Press
ECS Message
Key 1 to enter
message slot
selection mode
Press ECS
Message Key 3
to start and top
Recording from the
Aux Audio Input
Press Select
Key 2 to record
Message to
this message
lot
