Model IFP-2100/ECS Installation Manual LS10143-001SK-E

5-9

5.4.2.3 Fiber Optic and Twisted Pair Wiring between Multiple Panels

A mixture of fiber optic cable and twisted pair wiring between multiple panels is shown in Figure 5-10. Class A

cabling is shown with dotted line.

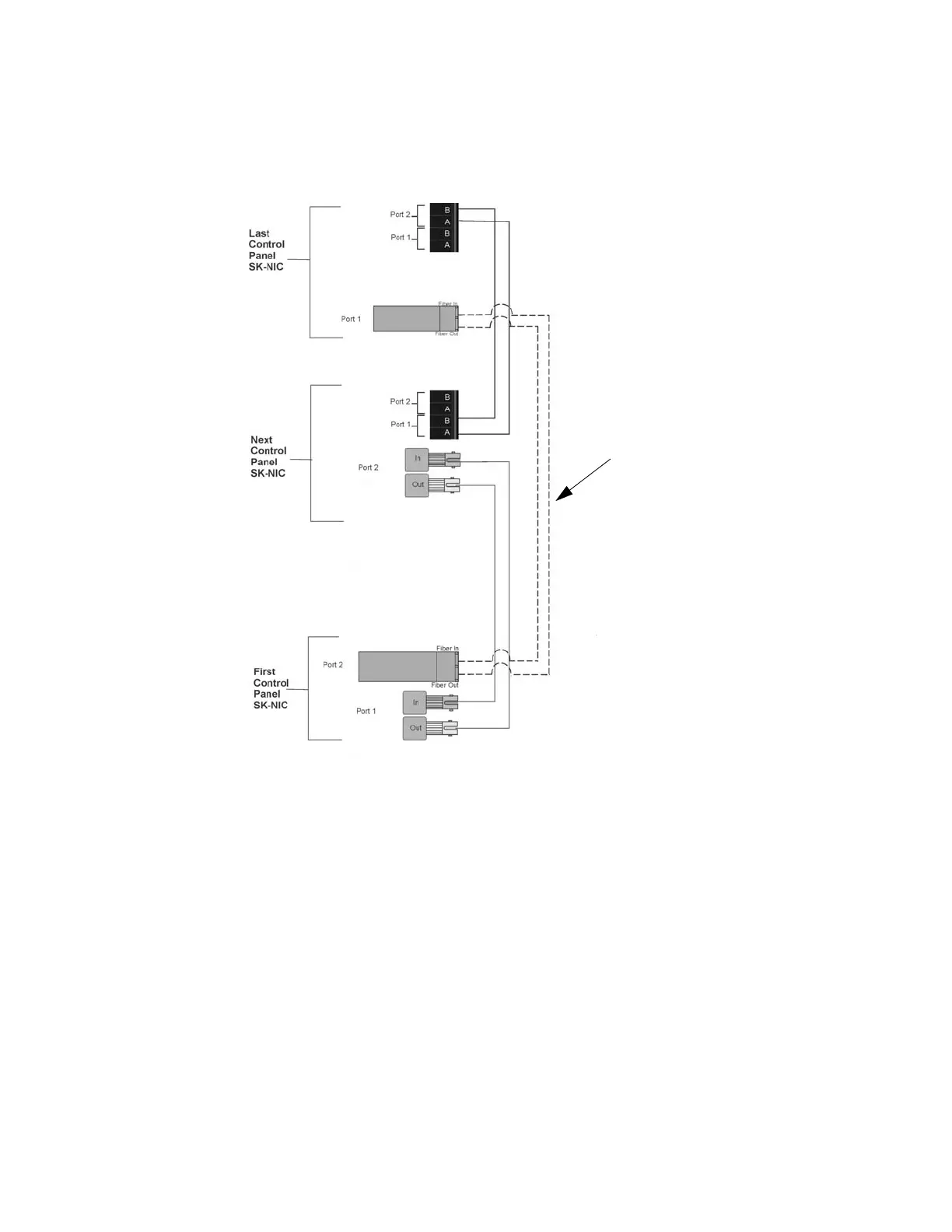

Figure 5-10 Twisted Pair and Fiber Optic Combination Wiring Example

Class A wiring
