Model IFP-2100/ECS Installation Manual LS10143-001SK-E

5-7

5.4.2.2 Fiber Optic Multi-Mode Wiring between Multiple Panels

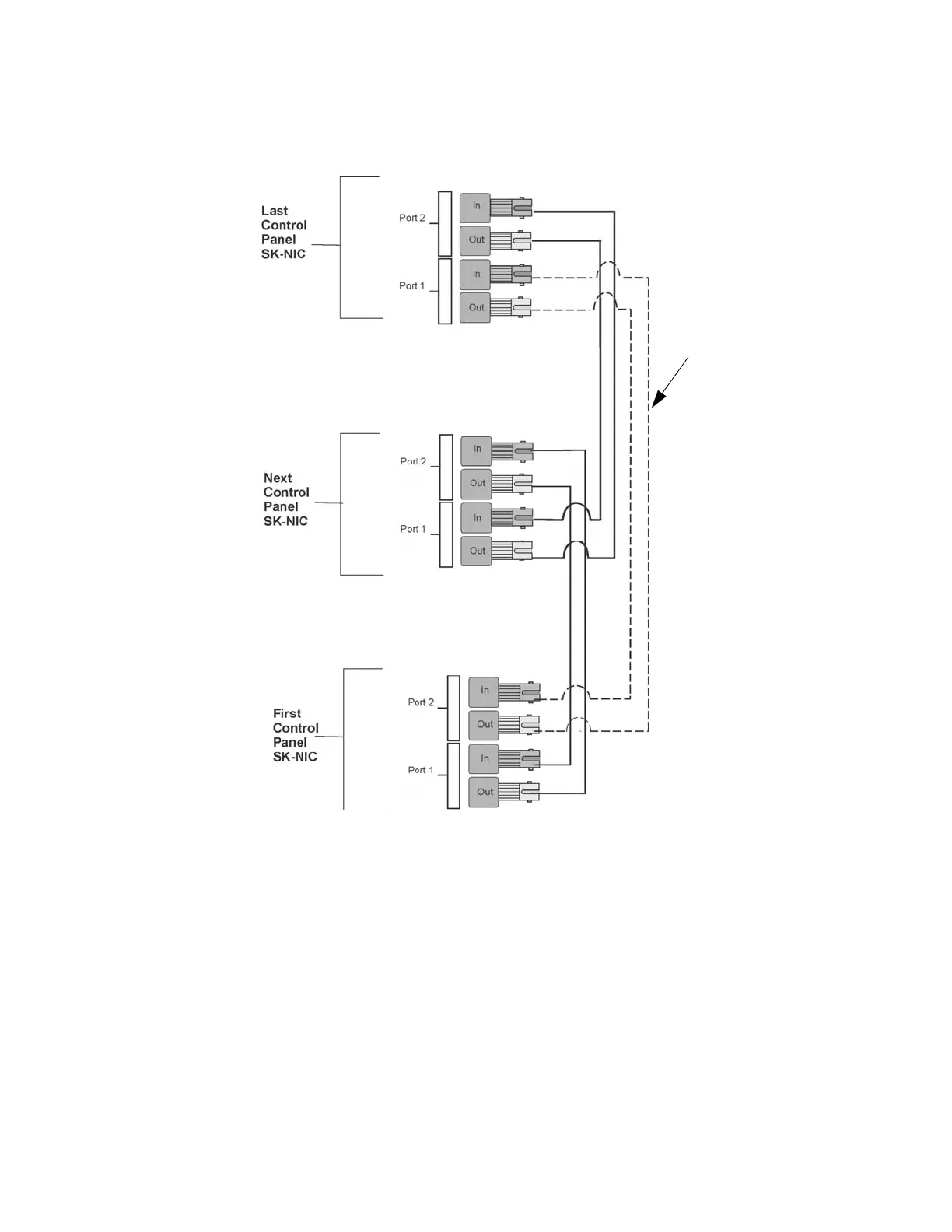

Fiber optic cable between multiple panels is shown in Figure 5-8. Class A is shown with a dotted line.

Figure 5-8 Fiber Optic Wiring Multi-Mode Example

Class A

wiring
