10.8 Smoke Alarm Verification

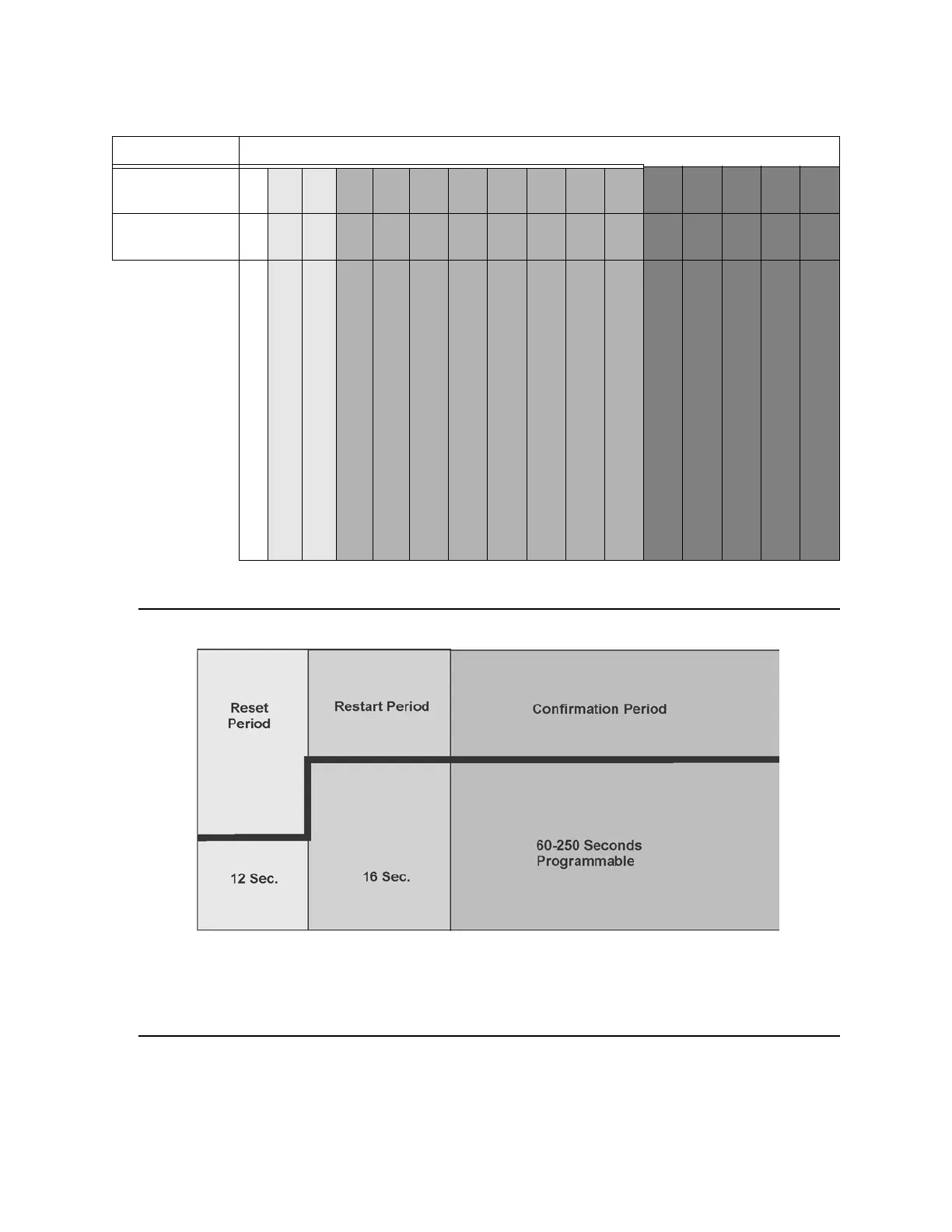

Figure 10-7 illustrates how the Smoke Alarm Verification cycle operates.
Figure 10-7 Smoke Verification Cycle
During the Confirmation Period if there is no alarm indication then the system will return to normal operation.
10.9 Function Keys
The function keys on the IFP-2100/ECS have multiple features. Their macro key functionality can simplify the
disabling, activating, or inhibiting points or groups respectively. They can also be used as a status type activation
event and for activating Map Inhibit. Each F-Key macro can hold 50 events.
Manual Release
Station
X X X X X X X X
Interlock/
Pressure Switch
X X X X X X X X
Normal
Interlock Release Alert Interlock Release Alert
Interlock Release Alert and Detector Alarm Interlock Release Alert and Detector Alarm Interlock Release Alert and Detector Alarm Interlock Release Alert and Detector Alarm Interlock Release Alert and Detector Alarm Interlock Release Alert and Detector Alarm Interlock Release Alert and Detector Alarm Interlock Release Alert and Detector Alarm
Interlock Release Alarm and Detector Alarm Interlock Release Alarm and Detector Alarm Interlock Release Alarm and Detector Alarm Interlock Release Alarm and Detector Alarm Interlock Release Alarm and Detector Alarm
Table 10-5 Double Interlock Zone Operation
Inputs Output Results
