9.5.4 Point Programming For 5880/5865 Modules
To program the 5880/5865 module output points:
1. Enter the installer code. The panel will automatically go to the main menu.
2. Select 7 for Panel Programming.
3. Press 4 to enter point menu.
4. Press the up or down arrow key to select the desired module. Refer to Section 8.5 for available choices. Then
press ENTER.

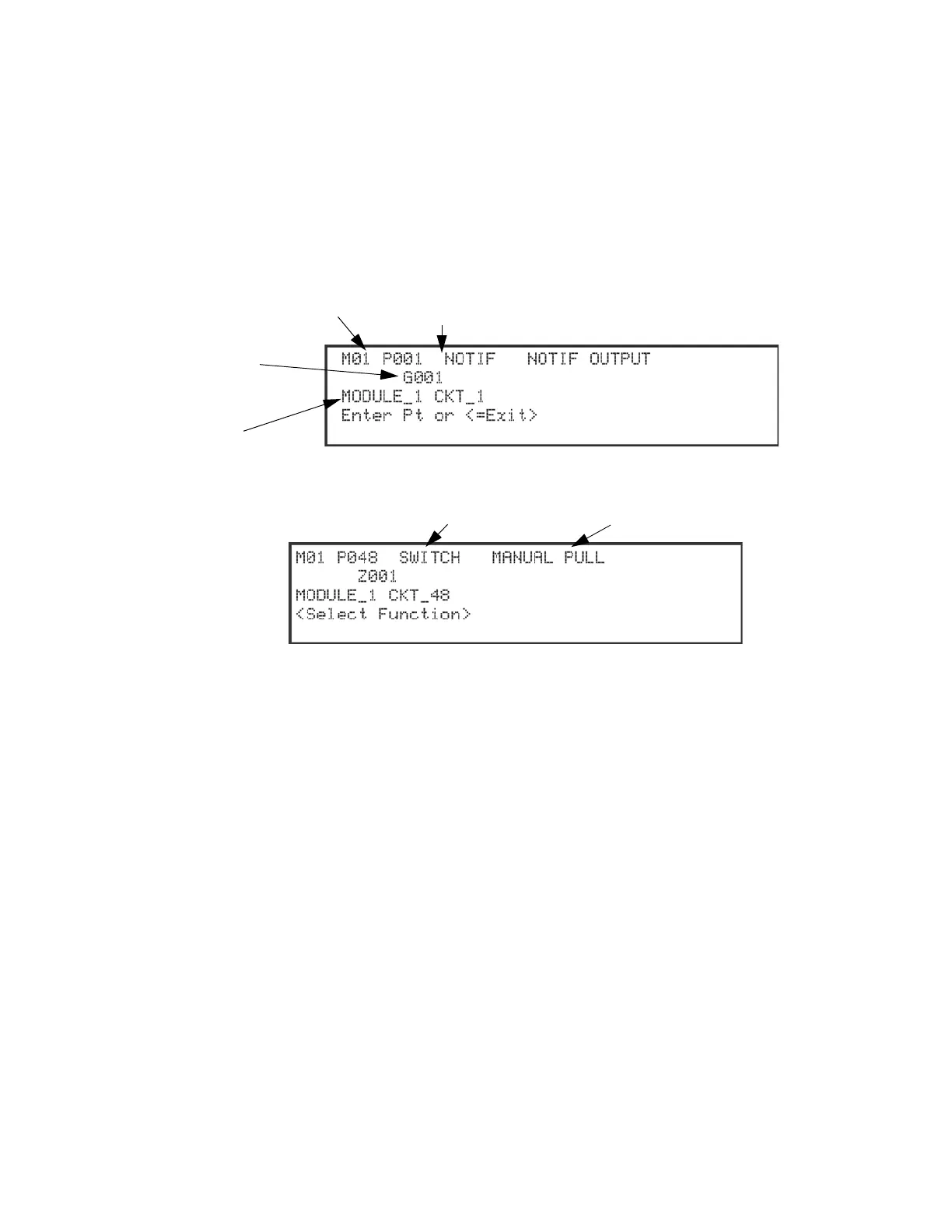

Figure 9-4 Programming Points as Outputs for the 5880 Module
Figure 9-5 Programming Points as Inputs for the 5880 Module
5. Enter the point number, then press ENTER.
6. Press the up or down arrow key to select the type (notification or unused)., then press ENTER.
7. Press the up or down arrow key to select the desired group., then press ENTER.
8. Press ENTER to edit point name. See Appendix B. Or, Press right arrow key to skip point name edit.
9. Repeat Steps 1 through 8 for all output points.
10. To use 5880 as Input point, Enter point number 41 - 48. (See Figure 9-5 on page 17). Then press ENTER.
11. Press the up or down arrow key to select type (switch or unused), then press ENTER.
12. Press the up or down arrow key to select the desired function. (See Figure 9-7 on page 20), then press
ENTER.
13. If the point supports latching press the up or down arrow key to select latching or non-latching, then press
ENTER.
14. Press the up or down arrow key to select the desired group/zone, then press ENTER.
15. Edit point name Or Press right arrow key to skip module name edit.
16. Repeat steps 10 through 15 for all input points.
9.5.5 Point Programming for 5496
To program module points:
Enter Point
Select NOTIF
or Unused
Select an output Group
for this Zone/Group
Select a name
for the Point
Select Switch or Unused
Select Function
To Next Page
