Page 6
Mini-AT User Guide
Specifications
Input Volume
• Dual Dry-reed switches, one pulse per each meter revolution
• Uncorrected volume totalized on mechanical index, also displayable on LCD
• Input pulse counting continues with dead or removed main battery
Input Pressure
• Precision strain gauge pressure transducer compensated to minimize ambient temperature effects
• Standard Transducer Ranges:
Pressure Range Transducer Type
PSI BAR
0-1 0.07 Gauge only
0-3 0.2 Gauge only
0-6 0.4 Gauge only
0-15 1.0 Gauge only
0-30 2.0 Gauge or Absolute
0-60 4.0 Gauge or Absolute
0-100 7.0 Gauge or Absolute
0-300 20 Gauge or Absolute
0-600 41 Gauge or Absolute
0-1000 70 Gauge or Absolute
0-1500 100 Gauge or Absolute
• Live display of input pressure on LCD
Input Temperature

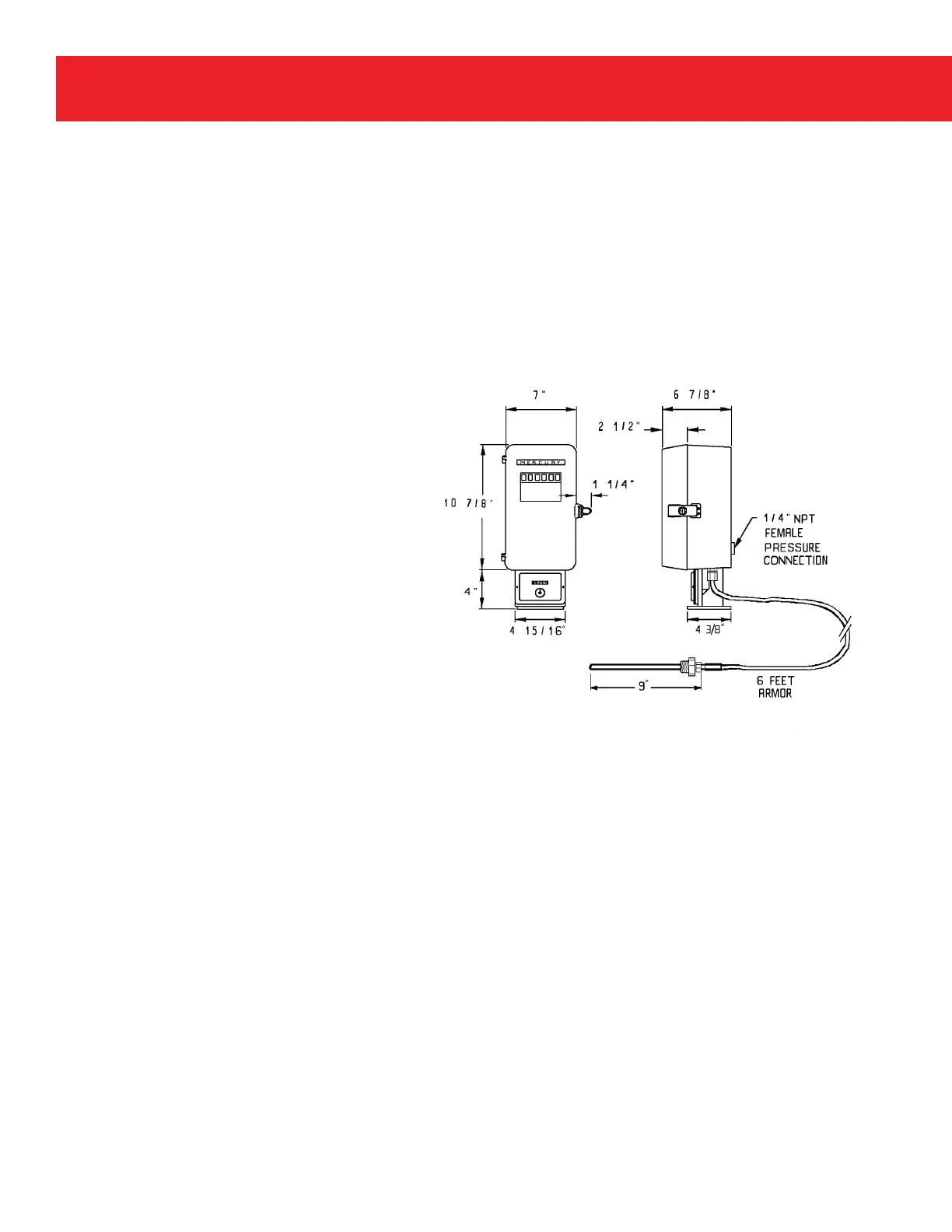

• Highly stable, solid state temperature sensor in a sealed ¼” diameter, 9” long stainless steel probe
with 6’ armored conductor and ½” NPT nylon slip-along fitting to match thermowell
• Range: -40
O
F. to 170
O
F. (-40
O
C. to 76.6
O
C.)
• Live display of input temperature on LCD
Corrected Volume
• Corrected to desired Base Pressure & Base Temperature
• Corrected for Supercompressibility (NX-19 or AGA-8)
• Selectable volume units, both Metric & Imperial
• Displayed continuously on 8-digit x ½” LCD
Power
• 5.5 to 9.0 VDC
• Battery life: 3 years+ (w/ Alkaline Battery Pack)
• On-board UPS (3-AA Alkaline battery)
• Lithium, AC or Solar (Optional)
• Main battery voltage, Backup battery voltage and alarms displayable on LCD
