Component ID
Hardware and Software Guide 1–10

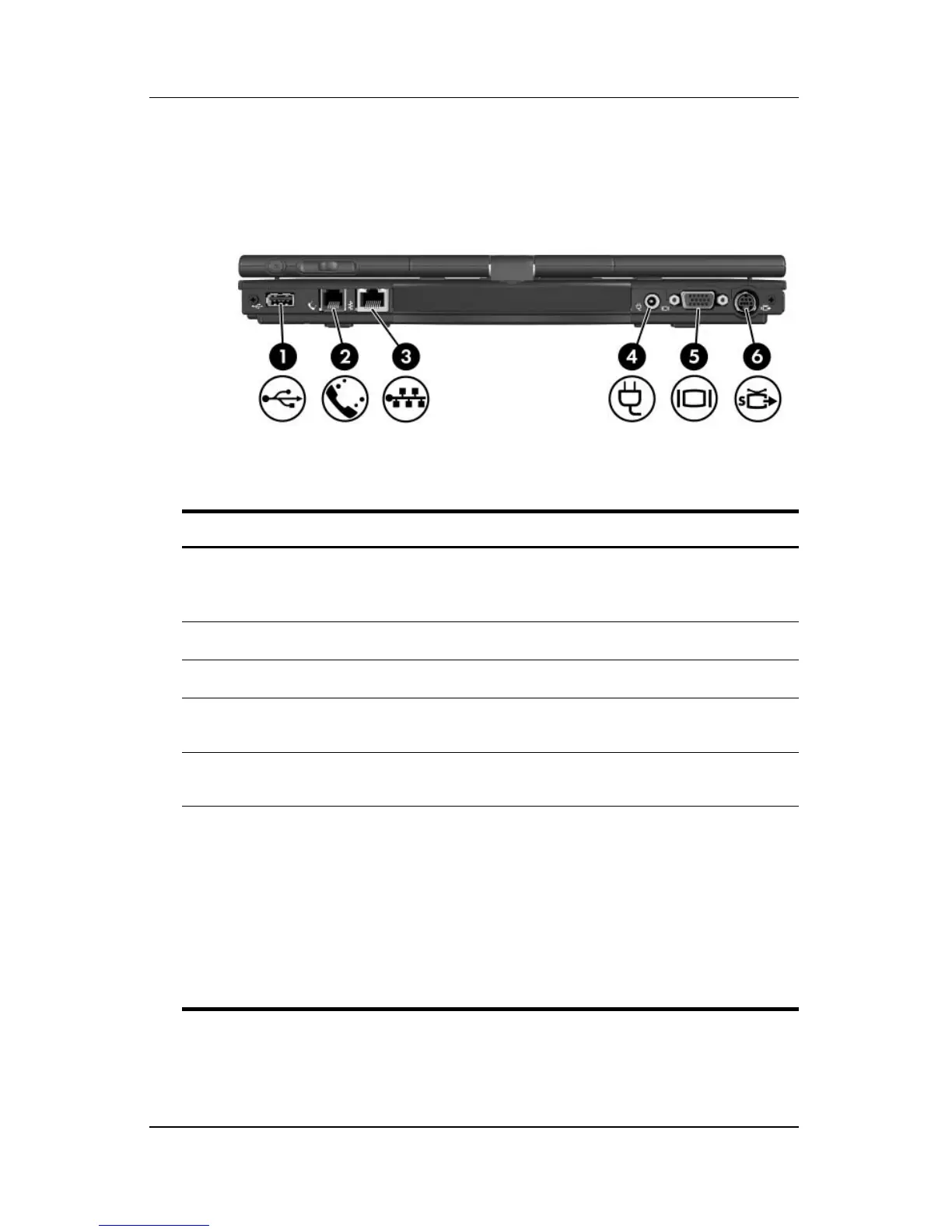

Rear Components
Component Description
1
USB port Connects USB 1.1- and 2.0-compliant
devices to the tablet PC using a
standard USB cable.
2
RJ-11 (modem) jack Connects a modem cable.
3
RJ-45 (network) jack Connects a network cable.
4
Power connector Connects an AC adapter, an optional
adapter, or an optional power cable.
5
External monitor port Connects an optional VGA external
monitor or projector.
6
S-Video-out jack Is a 7-pin, dual-purpose jack.
It connects an optional S-Video device,
such as a television, VCR, camcorder,
overhead projector, or video capture
card, with an optional, standard (4-pin)
S-Video cable.
The extra 3 pins also enable an
optional S-Video-to-composite adapter
to be used with the tablet PC.
