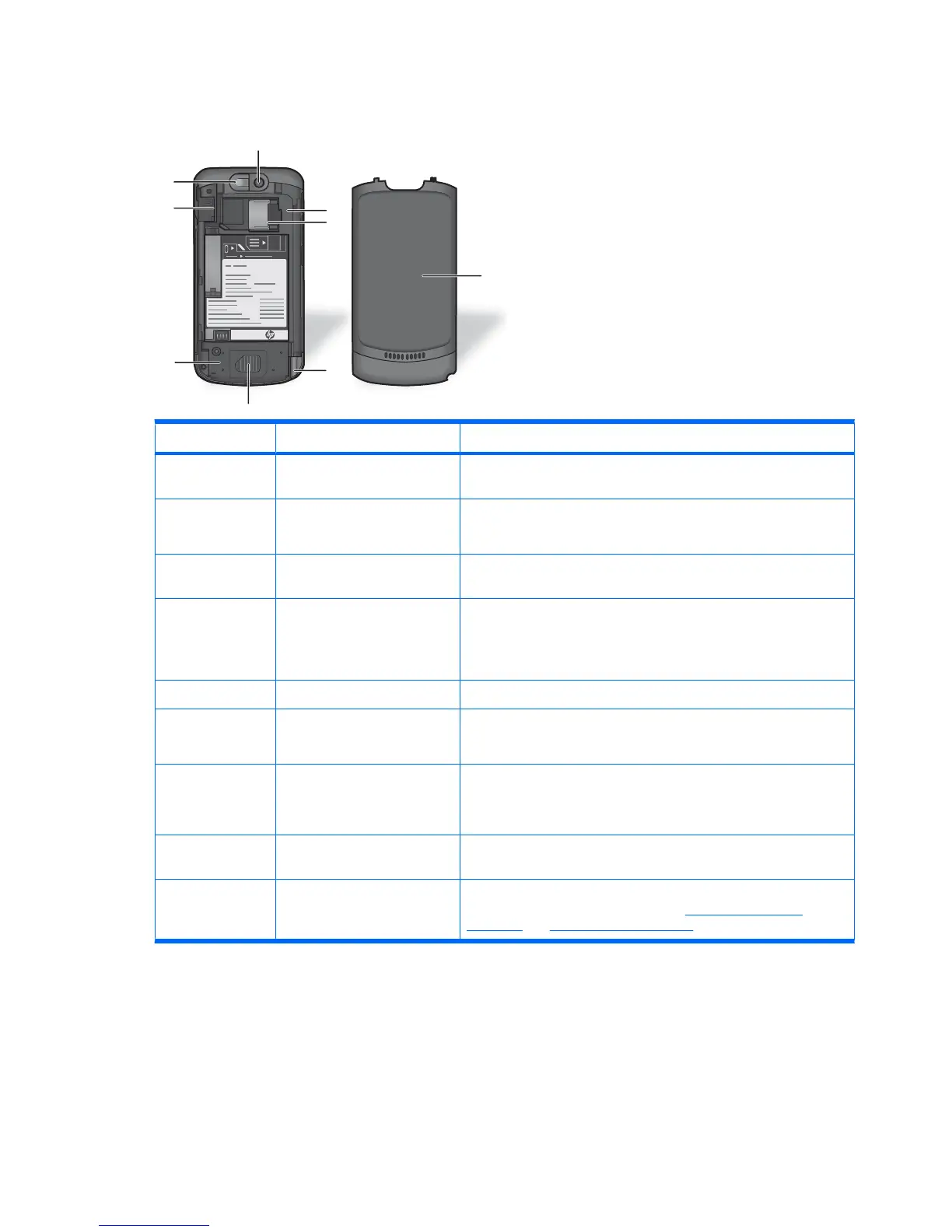

Back panel components
123456789
1234567890123456
(8)
(1)
(3)
(4)
(7)
(6)
(9)
(5)
(2)
Component Description Function
(1) 3.1 Megapixel Camera Use the 3.1 megapixel camera to take pictures. Do not cover the lens
while taking pictures.
(2) Bluetooth and Wi-Fi Antenna Detects Bluetooth and Wi-Fi signals.
NOTE: This component will be visible externally.
(3) SIM Card Slot Insert a SIM card with the metal contacts facing down to make and
receive calls.
(4) Stylus Use to select elements on the screen and input information.
Slide down to remove the stylus.
Slide up to place the stylus.
(5) Speaker Use the speaker to listen to music or as a speakerphone.
(6) WCDMA Antenna Detects WCDMA signals.
NOTE: This component will be visible externally.
(7) MicroSD Slot Insert a Micro Secure Digital (microSD) storage card with the label-side
up for data storage.
NOTE: Open the back cover to gain access to the slot.
(8) Camera Flash LED Use the camera flash LED to illuminate your subject while you capture
photos.
(9) Back Cover Covers the battery, SIM card, and microSD card. For more information
about installing these components, see
Set up your HP iPAQ
on page 7 and Storage cards on page 61.
6 Chapter 3 Components
