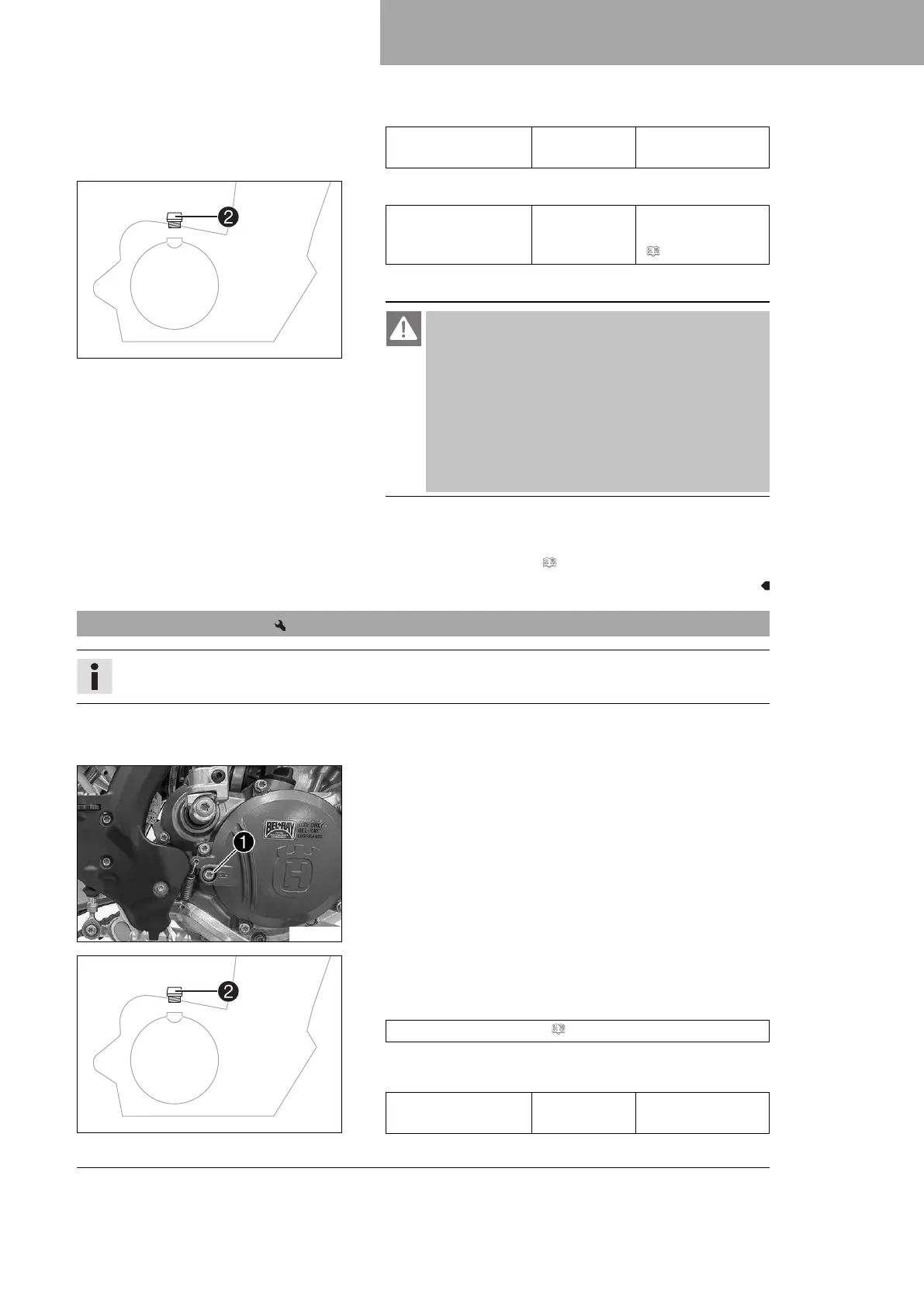

16 SERVICE WORK ON THE ENGINE
105
Guideline
Oil drain plug with
magnet
M12 20 Nm (14.8 lbf ft)
401955-11
–
Remove filler plug
2
and fill up with gear oil.
Gear oil 0.50 l
(0.53 qt.)
Engine oil
(SAE 10W/40)
( p. 121)
–
Mount and tighten filler plug
2
.
Danger
Danger of poisoning Exhaust gases are toxic and
inhaling them may result in unconsciousness and
death.
– Always make sure there is sufficient ventilation
when running the engine.
– Use an effective exhaust extraction system when
starting or running the engine in an enclosed
space.
– Start the engine and check that it is oil-tight.
Finishing work
– Check the gear oil level. ( p. 104)
16.3 Adding gear oil
Info
Too little gear oil or poor-quality gear oil results in premature wear to the transmission.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
K00976-10
Main work
–
Remove screw
1
.
401955-11
–
Remove filler plug
2
.
– Add gear oil up to bottom of the hole of the gear oil level
screw.
Engine oil (SAE 10W/40) ( p. 121)
–
Mount and tighten screw
1
.
Guideline
Screw, gear oil level
check
M6 8 Nm (5.9 lbf ft)
–
Mount and tighten filler plug
2
.
