14 COOLING SYSTEM
92

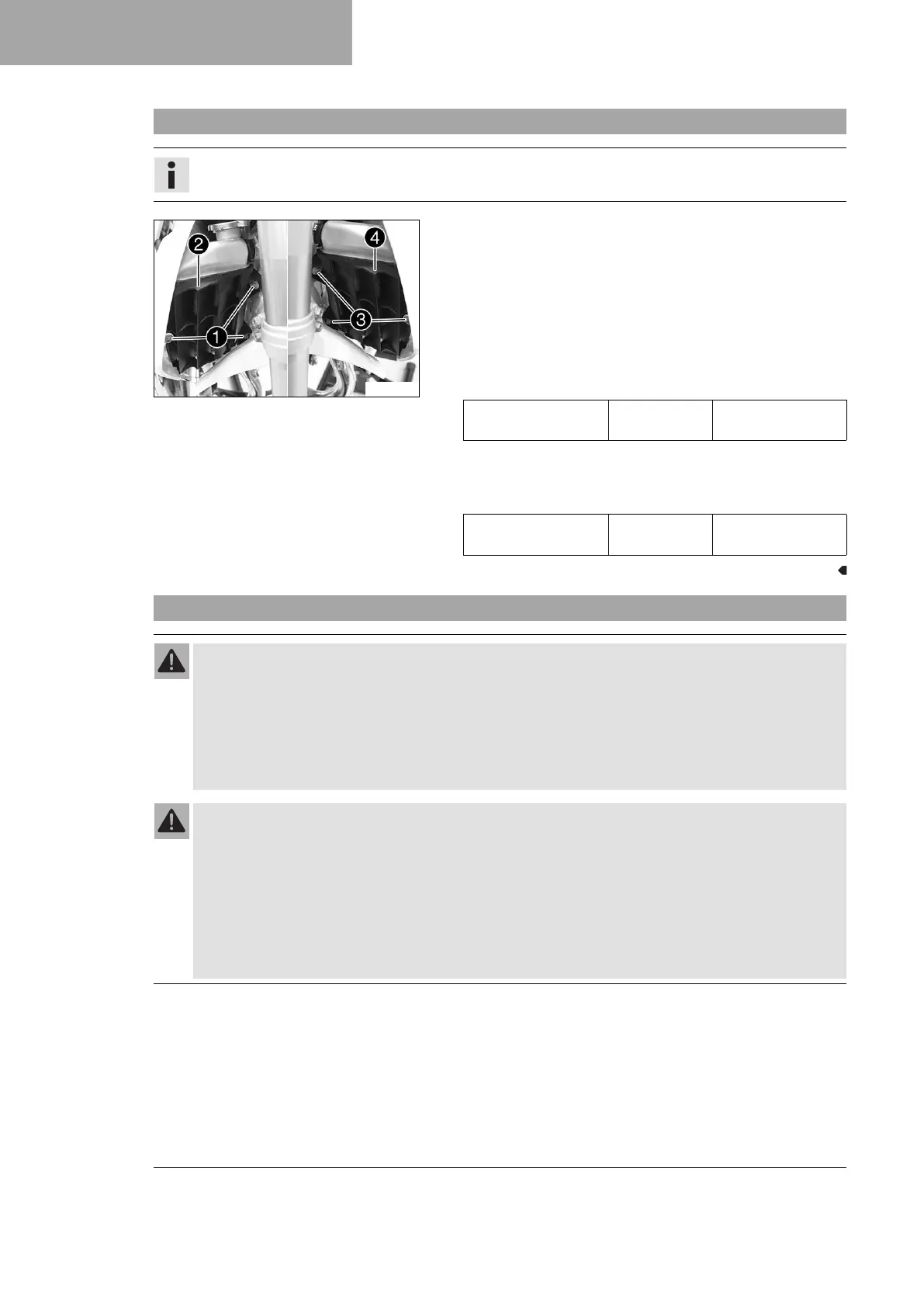

14.4 Removing the radiator cover
Info
Only remove left radiator shield if both radiator covers are mounted.
H02536-10
–
Remove screws
1
.
–
Remove right radiator shield
2
.
–
Remove screws
3
.
–
Remove left radiator shield
4
.
– Remove corresponding radiator cover.
–
Position right radiator shield
2
.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Position left radiator shield
4
.
–
Mount and tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
14.5 Checking the antifreeze and coolant level
Warning
Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure.
– Do not open the radiator, the radiator hoses or other cooling system components if the engine or
the cooling system are at operating temperature.
– Allow the cooling system and the engine to cool down before you open the radiator, the radiator
hoses or other components of the cooling system.
– In the event of scalding, rinse the area affected immediately with lukewarm water.
Warning
Danger of poisoning Coolant is toxic and a health hazard.
– Keep coolant out of the reach of children.
– Do not allow coolant to come into contact with the skin, the eyes and clothing.
– Consult a doctor immediately if coolant is swallowed.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water and consult a doctor immediately if coolant gets into the eyes.
– Change clothing if coolant spills onto your clothing.
Condition
The engine is cold.
