11 SERVICE WORK ON THE CHASSIS
69
Info
Turn the adjusting screw clockwise to increase the
distance between the clutch lever and the handlebar.
Turn the adjusting screw counterclockwise to
decrease the distance between the clutch lever and
the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not
apply force.
Do not make any adjustments while riding!

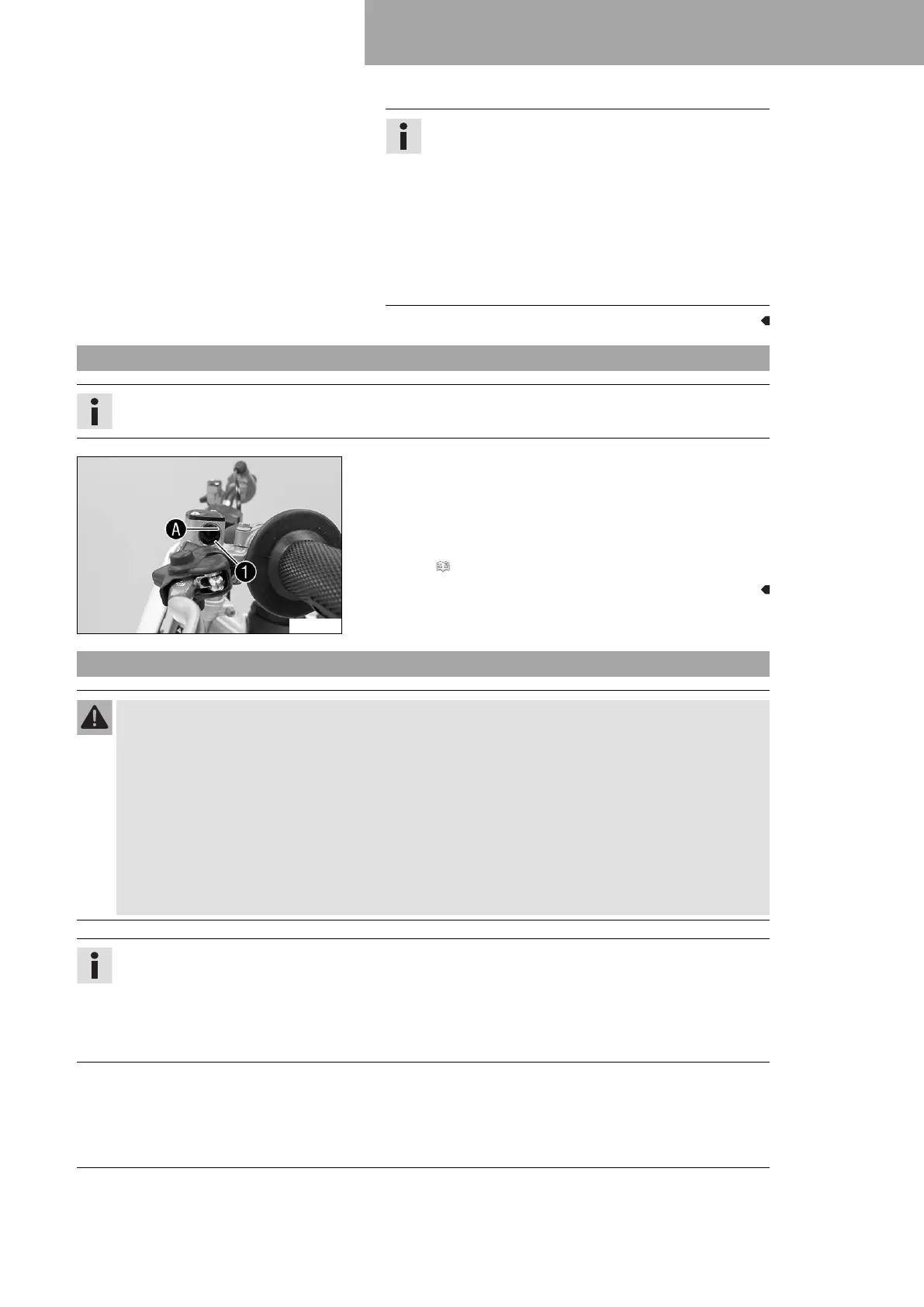

11.44 Checking the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch facing discs.
K00983-10
– Move the clutch fluid reservoir mounted on the handlebar to a
horizontal position.
–
Check the fluid level in viewer
1
.
»
If the fluid has dropped below marking
A
in the viewer:
– Correct the fluid level of the hydraulic clutch.
( p. 69)
11.45 Correcting the fluid level of the hydraulic clutch
Warning
Skin irritation Brake fluid causes skin irritation.
– Keep brake fluid out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Do not allow brake fluid to come into contact with the skin, the eyes or clothing.
– Consult a doctor immediately if brake fluid has been swallowed.
– Rinse the affected area with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water immediately and consult a doctor if brake fluid comes into contact
with the eyes.
– If brake fluid spills on to your clothing, change the clothing.
Info
The fluid level rises with increasing wear of the clutch facing discs.
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and clutch lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
