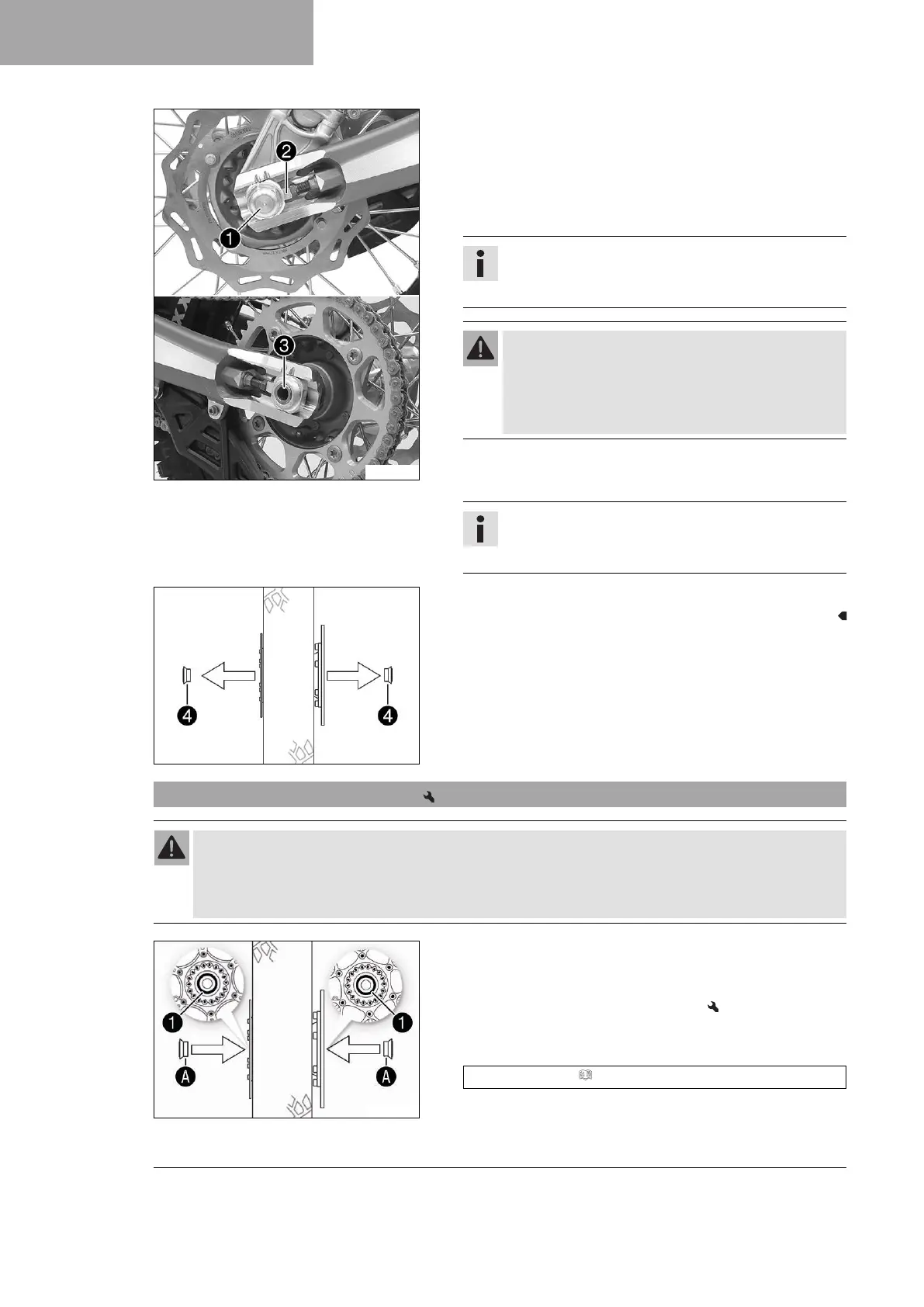

13 WHEELS, TIRES
86
H02529-12
Main work
–
Remove nut
1
.
–
Remove chain adjuster
2
. Pull out wheel spindle
3
far
enough to allow the rear wheel to be pushed forward.
– Push the rear wheel forward as far as possible. Remove the
chain from the rear sprocket.
Info
Cover the components to protect them against dam-
age.
Warning
Danger of accidents Damaged brake discs reduce
the braking effect.
– Always lay the wheel down in such a way that the
brake disc is not damaged.
– Holding the rear wheel, withdraw the wheel spindle. Take the
rear wheel out of the swingarm.
Info
Do not operate the foot brake lever when the rear
wheel is removed.
H00936-10
–
Remove spacers
4
.
13.4 Installing the rear wheel
Warning
Danger of accidents Oil or grease on the brake discs reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when necessary.
H00937-10
Main work
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the rear wheel bearing.
–
Clean and grease shaft seal rings
1
and contact surface
A
of the spacers.
Long-life grease ( p. 123)
– Insert the spacers.
