10 TUNING THE CHASSIS
43
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping.
–
Mount protection cap
1
.

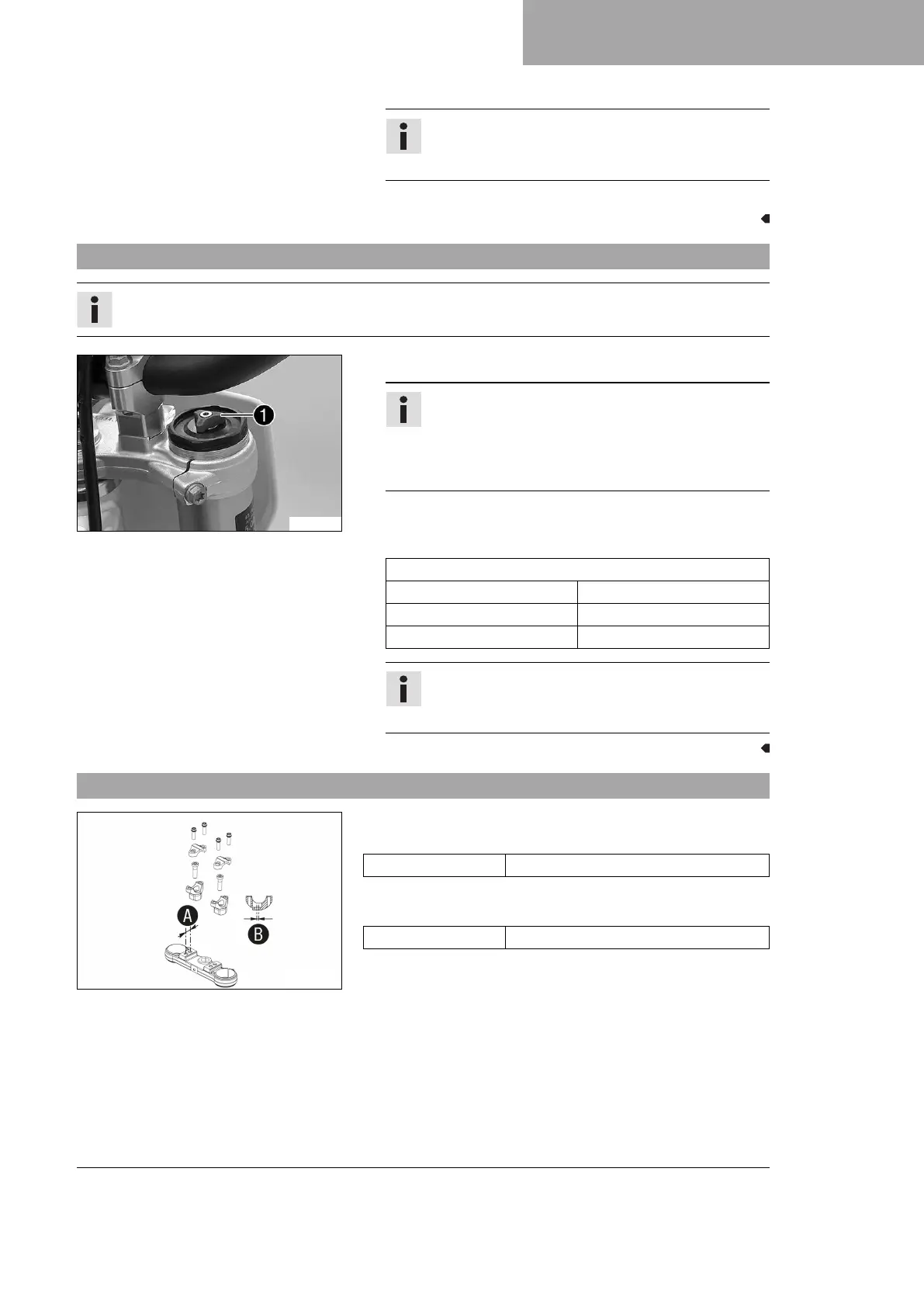

10.15 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
K00962-10
–
Turn red adjusting screw
1
clockwise as far as it will go.
Info
Adjusting screw
1
is located at the upper end of the
right fork leg.
The rebound damping is located in right fork leg REB
(red adjusting screw).
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Rebound damping
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping.
10.16 Handlebar position
C00248-10
On the upper triple clamp, there are 2 holes at a distance of
A
to each other.
Hole distance A 15 mm (0.59 in)
The holes on the handlebar supports are placed at a distance
of
B
from the center.
Hole distance B 3.5 mm (0.138 in)
The handlebar supports can be mounted in four different posi-
tions. This allows the handlebar to be mounted in the most com-
fortable position for the rider.
