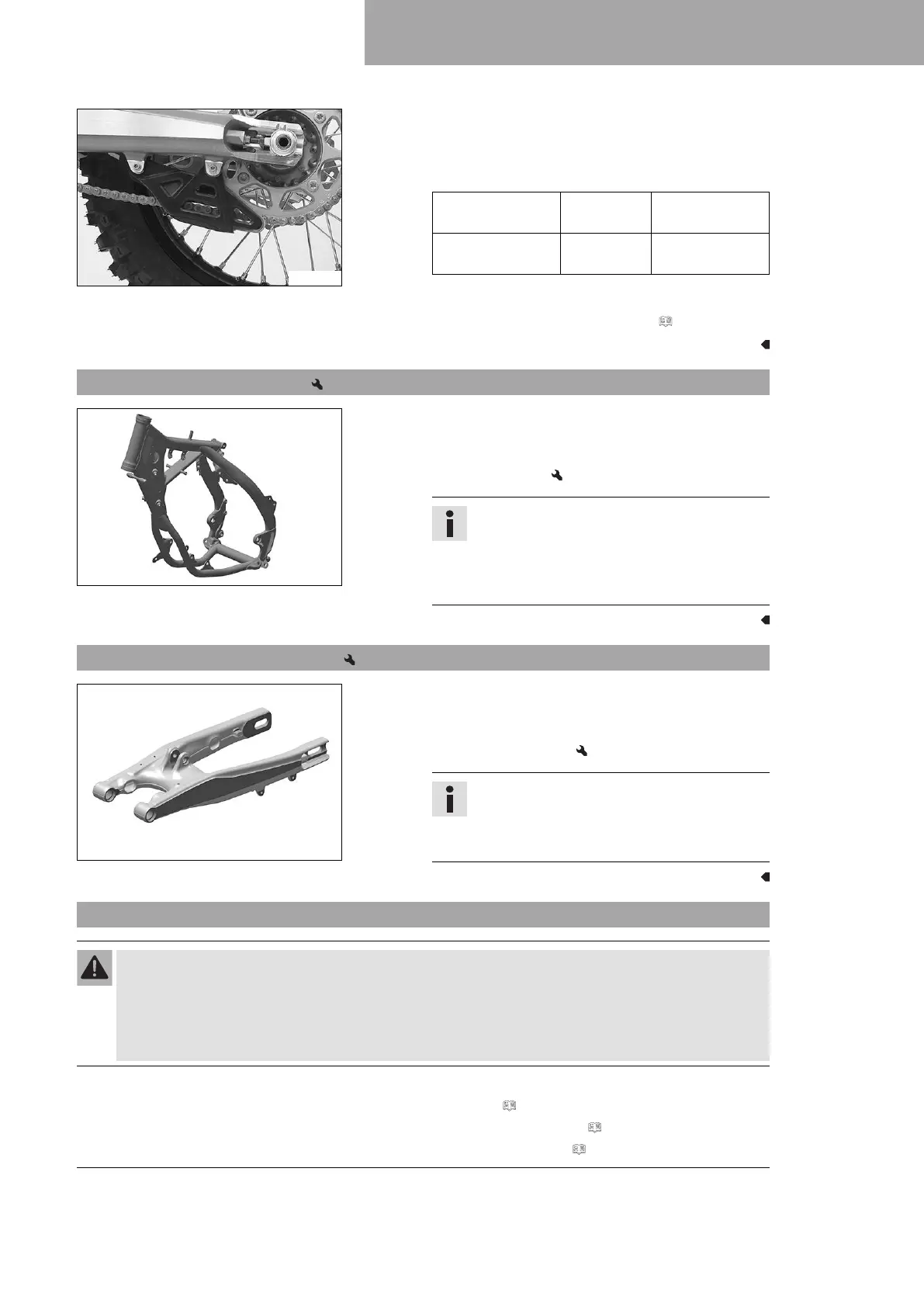

11 SERVICE WORK ON THE CHASSIS
67
H02532-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining
screws, chassis
M6 10 Nm (7.4 lbf ft)
Remaining nuts,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 45)
11.39 Checking the frame
V00858-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been
damaged due to a mechanical impact. Repair
of the frame is not authorized by Husqvarna
Motorcycles.
11.40 Checking the swingarm
V00857-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or
deformation:
– Change the swingarm.
Info
Always change a damaged swingarm. Repair
of the swingarm is not authorized by Husq-
varna Motorcycles.
11.41 Checking the throttle cable routing
Warning
Danger of accidents The throttle cable may slip out of the guide if routed incorrectly.
The throttle slide will then no longer be closed and the speed can no longer be controlled.
– Make sure that the throttle cable routing and the play in throttle cable complies with the specifica-
tion.
Preparatory work
– Remove the seat. ( p. 55)
– Remove the air filter box cover. ( p. 55)
– Remove the right side cover. ( p. 59)
