10.3 Compression damping of the shock absorber
The compression damping of the shock absorber is divided into two ranges: high-speed and low-speed.
High-speed and low-speed refer to the compression speed of the rear wheel suspension and not to the vehicle
speed.
The high-speed setting, for example, has an effect on the landing after a jump: the rear wheel suspension com-
presses quickly.
The low-speed setting, for example, has an effect when riding over long ground swells: the rear wheel suspen-
sion compresses slowly.
These two ranges can be adjusted separately, although the transition between high-speed and low-speed is
gradual. Thus, changes in the high-speed range affect the compression damping in the low-speed range and
vice versa.
10.4 Adjusting the low-speed compression damping of the shock absorber
Caution
Risk of injury Parts of the shock absorber will fly off if the shock absorber is disassembled incor-
rectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized Husqvarna Motorcycles workshop will be
glad to help.)
Info
The effect of the low-speed setting can be seen in slow to normal compression of the shock absorber.

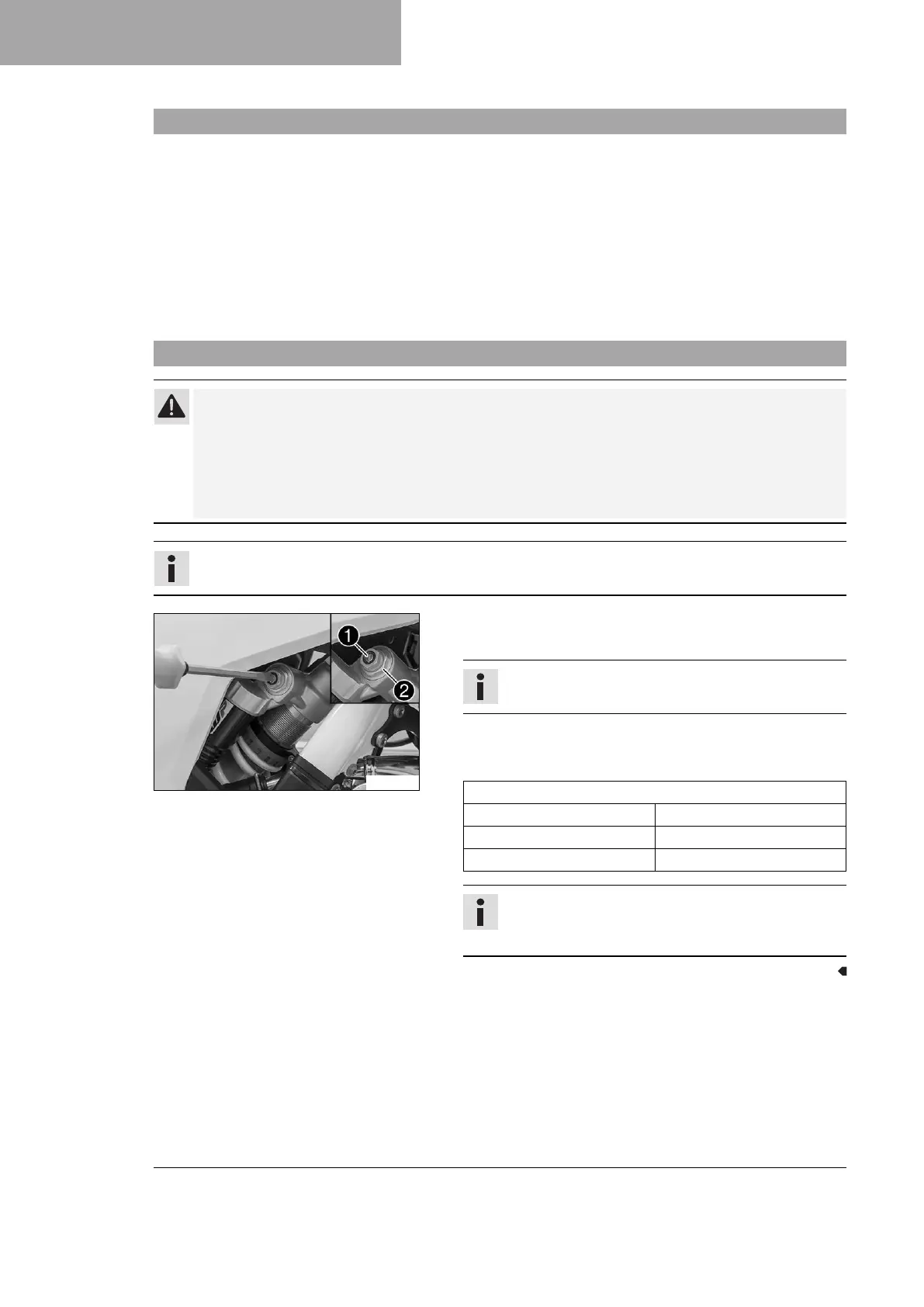

K00959-10
–
Turn adjusting screw
1
clockwise with a screwdriver as far
as the last perceptible click.
Info
Do not loosen fitting
2
!
– Turn counterclockwise by the number of clicks correspond-
ing to the shock absorber type.
Guideline
Compression damping, low-speed
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping.
