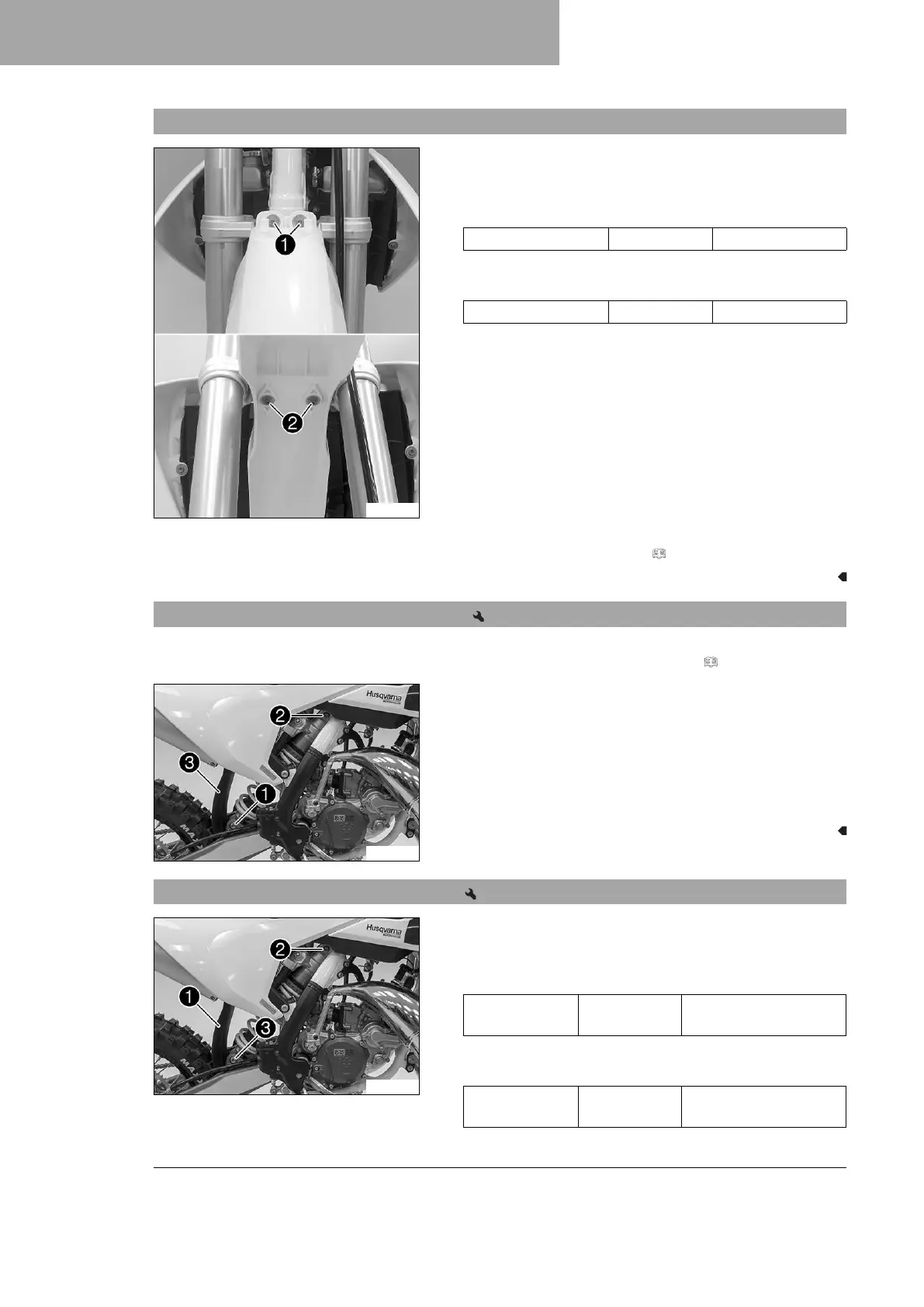

11 SERVICE WORK ON THE CHASSIS
54
11.17 Installing front fender
A00138-10
Main work
– Position front fender.
–
Mount and tighten screws
1
.
Guideline
Screw, front fender M6 10 Nm (7.4 lbf ft)
–
Mount and tighten screws
2
.
Guideline
Screw, front fender M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 53)
11.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 45)
K00978-10
Main work
– Detach brake line from the brake line guide.
–
Remove screw
1
and lower the rear wheel with the
swingarm as far as possible without blocking the rear wheel.
Secure the rear wheel in this position.
–
Remove screw
2
, push splash protector
3
to the side,
and remove the shock absorber.
11.19 Installing the shock absorber
K00978-11
Main work
–
Push splash protector
1
to the side and position the shock
absorber. Mount and tighten screw
2
.
Guideline
Screw, top
shock absorber
M12 60 Nm (44.3 lbf ft)
Loctite
®
2701™
–
Mount and tighten screw
3
.
Guideline
Screw, bottom
shock absorber
M12 60 Nm (44.3 lbf ft)
Loctite
®
2701™
– Attach brake line.
