Husqvarna TC 85 User Manual

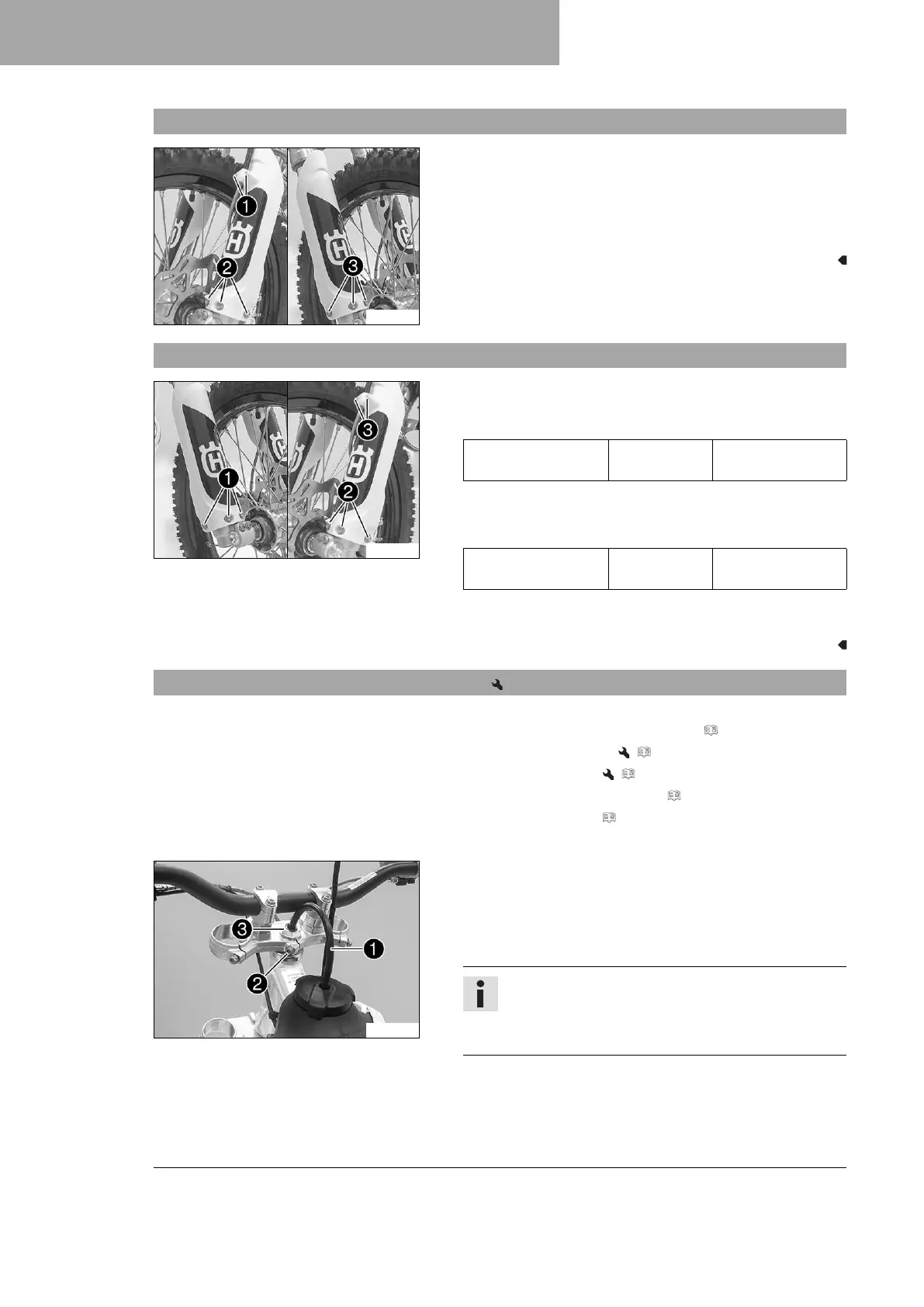

11 SERVICE WORK ON THE CHASSIS
48
11.7 Removing the fork protector
A00140-10
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
on the left fork leg. Take off the fork pro-
tector.
–
Remove screws
3
on the right fork leg. Take off the fork
protector.
11.8 Installing the fork protector
A00141-10
– Position the fork protector on the right fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the fork protector on the left fork leg. Mount and
tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line and clamp. Mount and tighten
screws
3
.
11.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 45)
– Remove the front wheel. ( p. 84)
– Remove the fork legs. ( p. 46)
– Remove the start number plate. ( p. 52)
– Remove front fender. ( p. 53)
– Remove the handlebar cushion.
A00145-10
Main work
–
Pull fuel tank breather
1
out of the steering stem.
–
Loosen screw
2
. Remove nut
3
, pull off the upper triple
clamp with the handlebar in an upward direction, and hang it
to the side.
Info
Cover the components to protect them against dam-
age.
Do not kink the cables and lines.

Husqvarna TC 85 Specifications

General

Starter	Kickstarter
Transmission	6-speed
Engine Type	Single-cylinder, 2-stroke
Displacement	84.9 cc
Clutch	Wet multi-disc
Front Brake	Disc brake
Rear Brake	Disc brake
Front Tire	70/100
Rear Tire	90/100
Wheelbase	1290 mm
Final Drive	Chain
