About this task
This task assumes that the following conditions are met:
v You removed the PSU, following the procedure described in “Removing a power
supply: 2145-92F” on page 112.
v You removed the fascia that covers the PSU from the front of the expansion
enclosure, as described in “Removing the fascia: 2145-92F” on page 94.
v You are aware of the procedures for handling static-sensitive devices.
Procedure
1. Read all safety information.
2. Rotate the handles on the PSU outward, as shown in Figure 89.
3. Slide the PSU forward into the chassis until it clicks in to place, as shown in
Figure 90 on page 93.

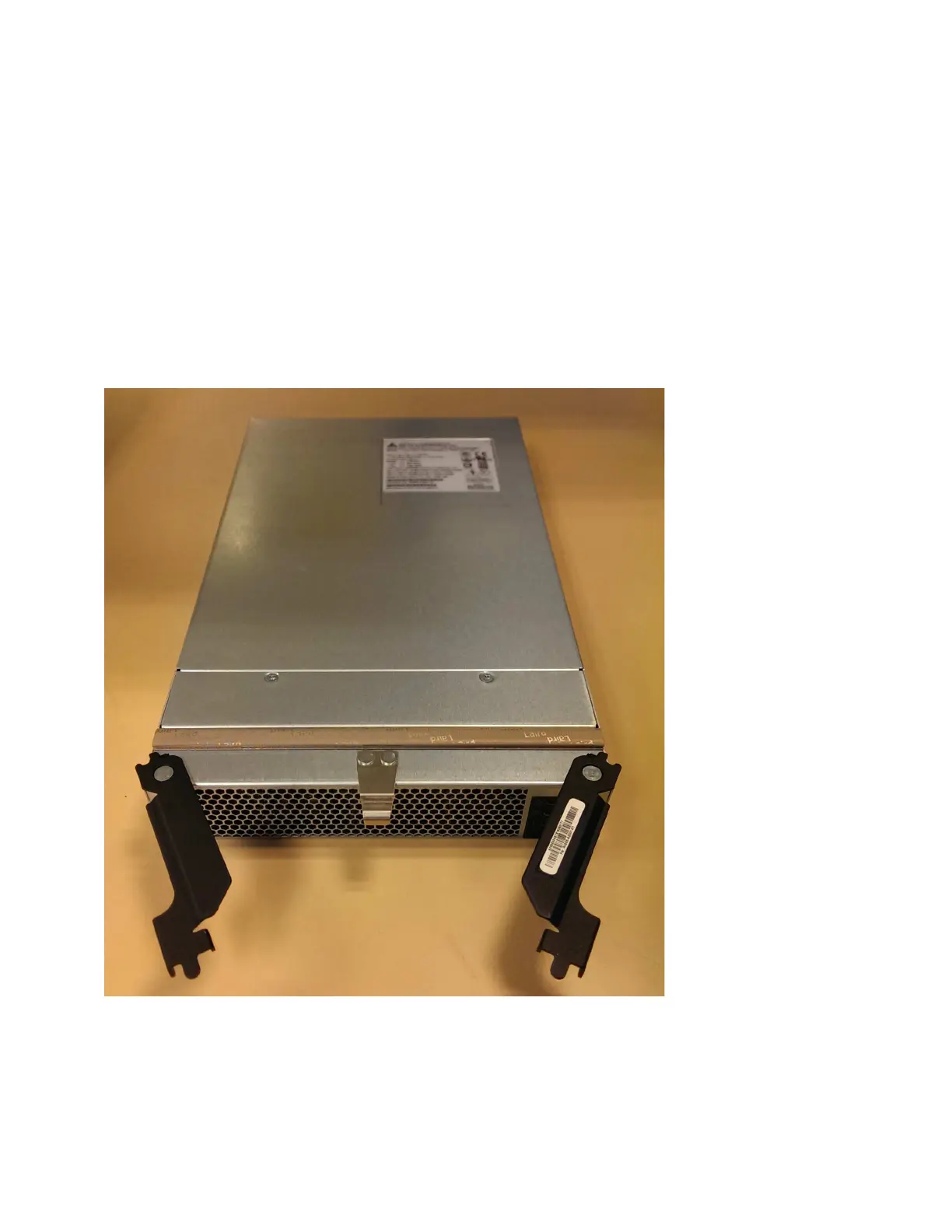

Figure 89. Preparing to install the power supply
92 SAN Volume Controller: Model 2145-SV1 Hardware Installation Guide
