Boot drive status LED
The amber drive status LED indicates one of the following conditions.
Off The drive is in a good state or has no power.
Flashing
The drive is being identified.
On The drive has failed.
Battery fault LED
The amber Battery fault LED indicates one of the following conditions.
Off The battery is functioning normally.
Flashing
The battery is being identified.
On The battery has failed.
SAN Volume Controller 2145-SV1 operator-information panel
The operator-information panel contains buttons and indicators such as the
power-control button, and LEDs that provide node information.

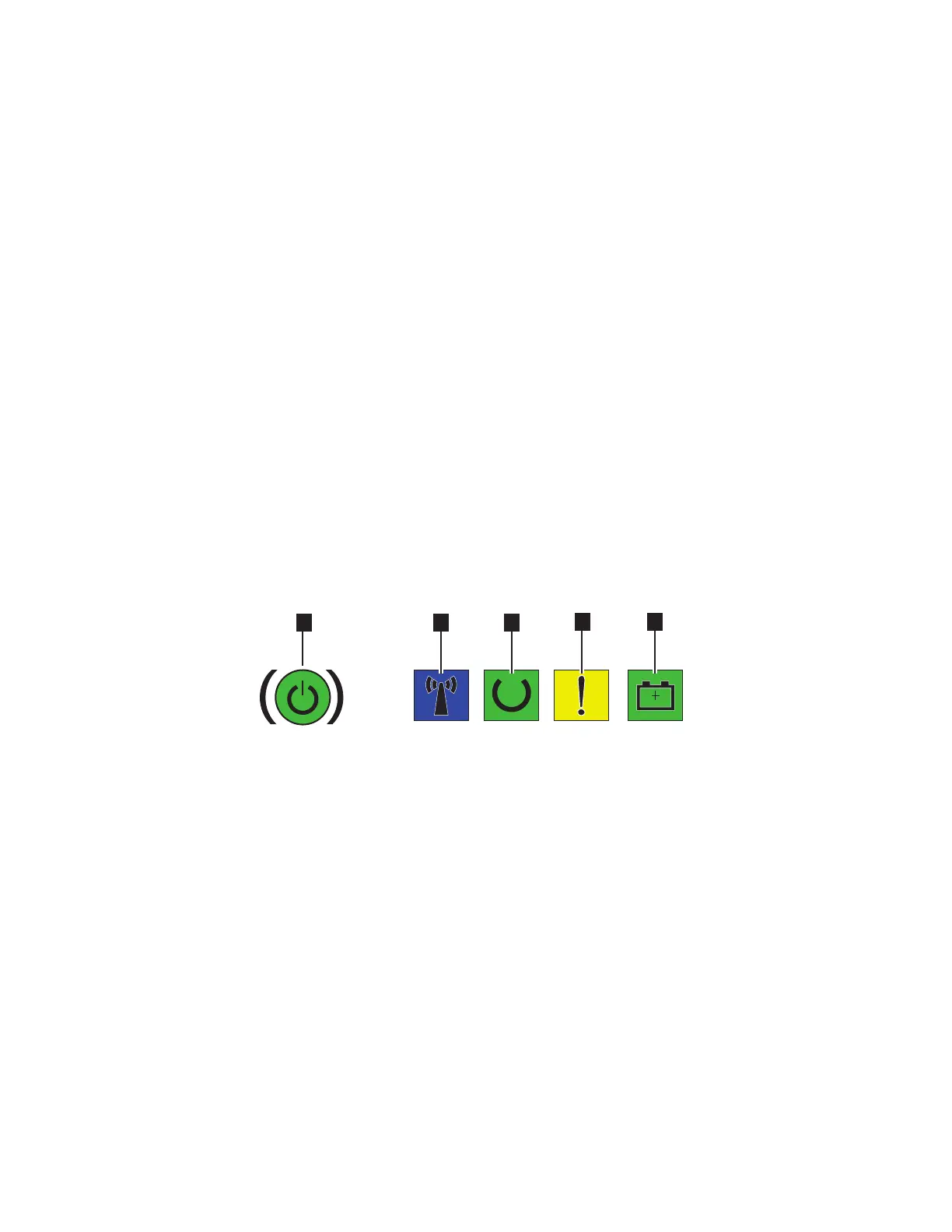

Figure 2 shows the operator-information panel for the SAN Volume Controller
2145-SV1.
▌1▐ Power-control button and power-on LED
▌2▐ Identify LED
▌3▐ Node status LED
▌4▐ Node fault LED
▌5▐ Battery status LED
Power LED
The green power LED indicates one of the following power conditions.
Off One or more of the following are true:
v No power is present at the power supply input.
v The power supply has failed.
v The LED has failed.
On The SAN Volume Controller node is turned on.
Figure 2. SAN Volume Controller 2145-SV1 operator-information panel
4 SAN Volume Controller: Model 2145-SV1 Hardware Installation Guide
