IBM MTM 2145-SV1 User Manual

b. Turn the rotation plate upward.
c. Slide the middle section back.
4. Install the inner section of the rail onto the chassis. No screws are required. Fit
the holes in the inner rail section over the heads of the pins on the side of the
appliance, then slide the rail toward the rear of the appliance to lock, as
shown in Figure 20.
5. Repeat steps 3 on page 19-4 for the opposite rail.
6. Install the outer section of the rail to the front frame, as shown in the
following figure.
sv100026
2
3
4
5
6
1
2
1
SAN Volume Controller
7
8
2
3
4
5
6
1
2
1
SAN Volume Controller
7
8

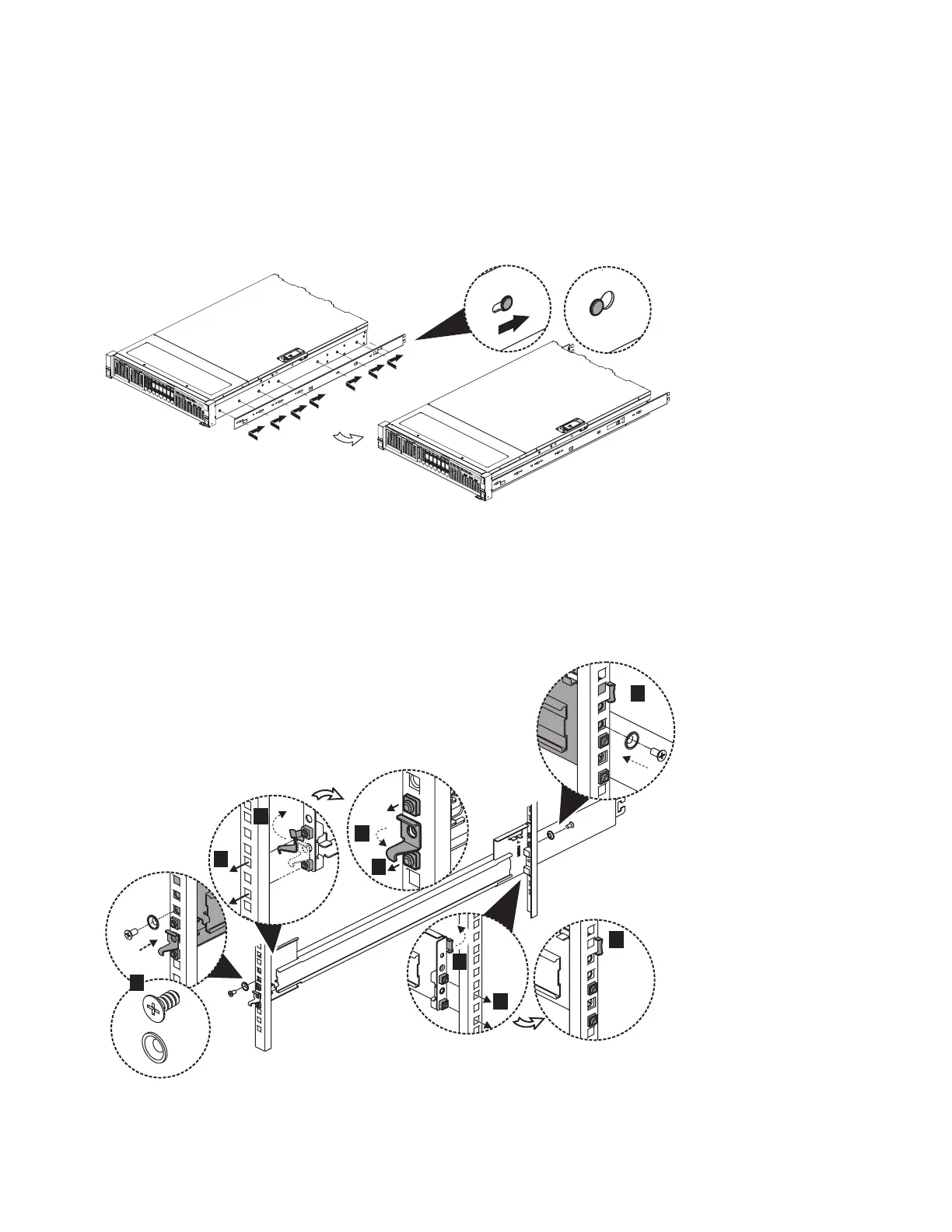

Figure 20. Attach inner rail section to chassis
1
2
3
4
6
7
5
sv100027
8
9
Figure 21. Install the bracket assembly to the frame
20 SAN Volume Controller: Model 2145-SV1 Hardware Installation Guide
