▌1▐ SAN Volume Controller 2145-SV1 node
▌2▐ SAN Volume Controller 2145-SV1 support rails
▌3▐ SAN Volume Controller 2145-SV1 cable-management arm assembly
Country-specific power cables come with the SAN Volume Controller node. These
cables are intended for your country-specific power sockets.
Before you start the installation, verify that all the parts that were ordered have
been received and that all the optional features are fitted. Verify that you know the
quantity of nodes and optional features that were ordered.
A label on the main shipping box indicates the features that were shipped.
Note: You must install at least two SAN Volume Controller nodes.
Procedure
To prepare for installation, complete the following steps.
2
3
4
5
6
1
2
1
SAN Volume Controller
7
8
sv100015
1
3
2

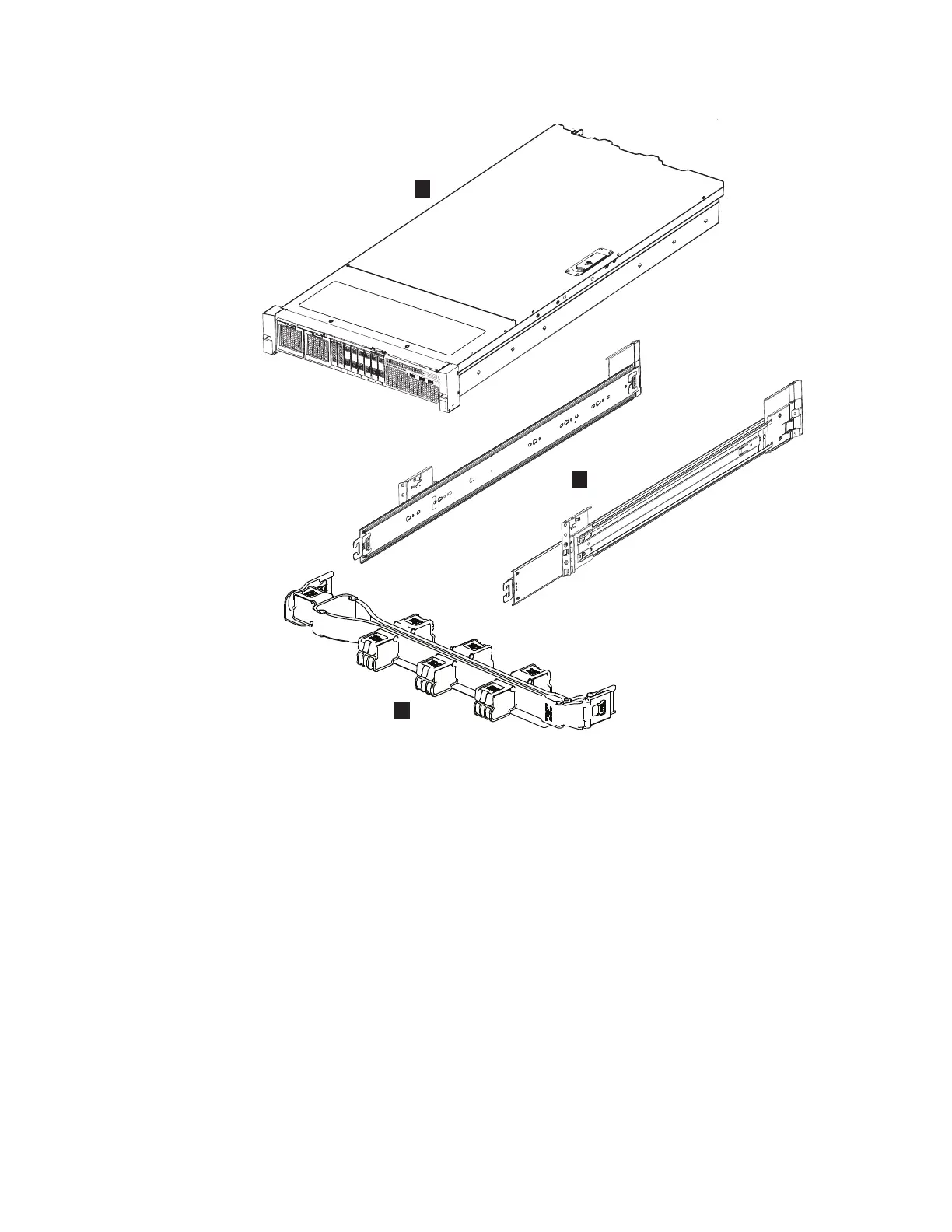

Figure 17. Parts provided for SAN Volume Controller 2145-SV1 hardware installation in a
rack
16 SAN Volume Controller: Model 2145-SV1 Hardware Installation Guide
