▌1▐ 10 Gbps Ethernet fault LEDs.
▌2▐ 10 Gbps Ethernet link LEDs.
SAN Volume Controller 2145-SV1 connectors
The SAN Volume Controller 2145-SV1 includes multiple external connectors for
data, video, and power.

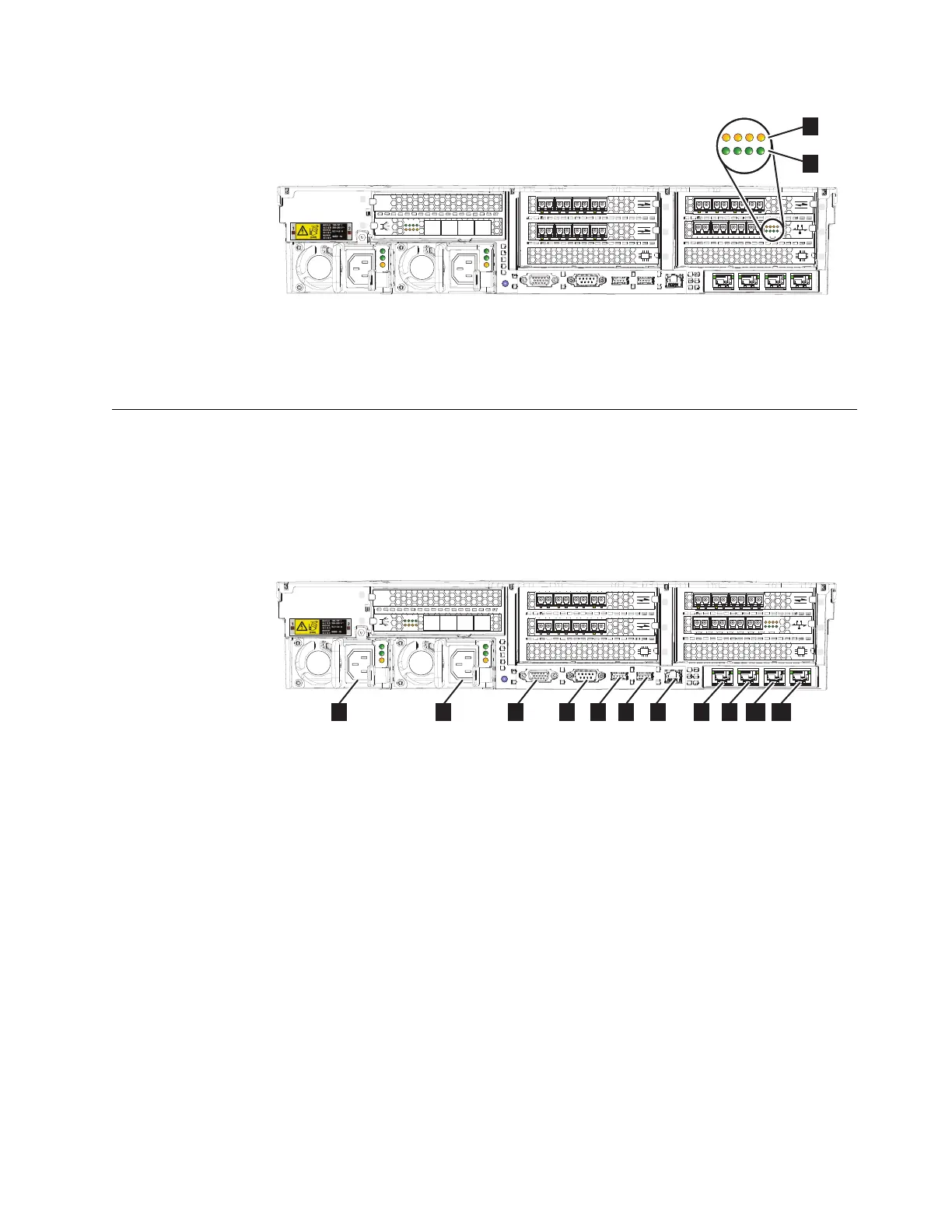

Figure 11 shows the external connectors on the SAN Volume Controller 2145-SV1
back panel assembly.
▌1▐ Power supply 1
▌2▐ Power supply 2
▌3▐ Video port
▌4▐ Serial port (not used)
▌5▐ Rear USB port 1
▌6▐ Rear USB port 2
▌7▐ Unused Ethernet port
▌8▐ 10 Gbps Ethernet port 1
▌9▐ 10 Gbps Ethernet port 2
▌10▐ 10 Gbps Ethernet port 3
▌11▐ Technician port (Ethernet)
Figure 12 on page 12 shows the type of connector that is on each power-supply
assembly.
Figure 10. Ethernet port LEDs on a 10 Gbps Ethernet adapter
1
2
4
5
3
7
8
6
12
sv100010
3 4 5 6 7 8 91 2
10
11
Figure 11. Connectors on the rear of the SAN Volume Controller 2145-SV1
Chapter 1. Preparing to install the SAN Volume Controller 11
