4. If needed, repeat steps 2 on page 102 and 3 on page 103 to replace the other
FIB.
5. Replace the narrow metal cover, which is shown in Figure 103, over the FIB
assemblies. The attachment screws are on each side of the chassis.
6. Place the enclosure back in the rack, as described in “Installing or replacing an
expansion enclosure in a rack: 2145-92F” on page 61
7. Replace each of the fan modules. Follow the procedure that is described in
“Installing or replacing a fan module: 2145-92F” on page 100.
8. Replace the drives, secondary expander modules, and other heavy FRUs that
were removed before the enclosure was removed from the rack.
9. Replace the top cover, as described in “Installing or replacing the top cover:
2145-92F” on page 80.
10. Reconnect power to the enclosure, as described in “Powering on the
expansion enclosure: 2145-92F” on page 140.
Removing an expansion enclosure from a rack: 2145-92F
You might need to slide the 2145-92F expansion enclosure out of the rack to apply
service. For some tasks, you might need to completely remove the expansion
enclosure from the rack.

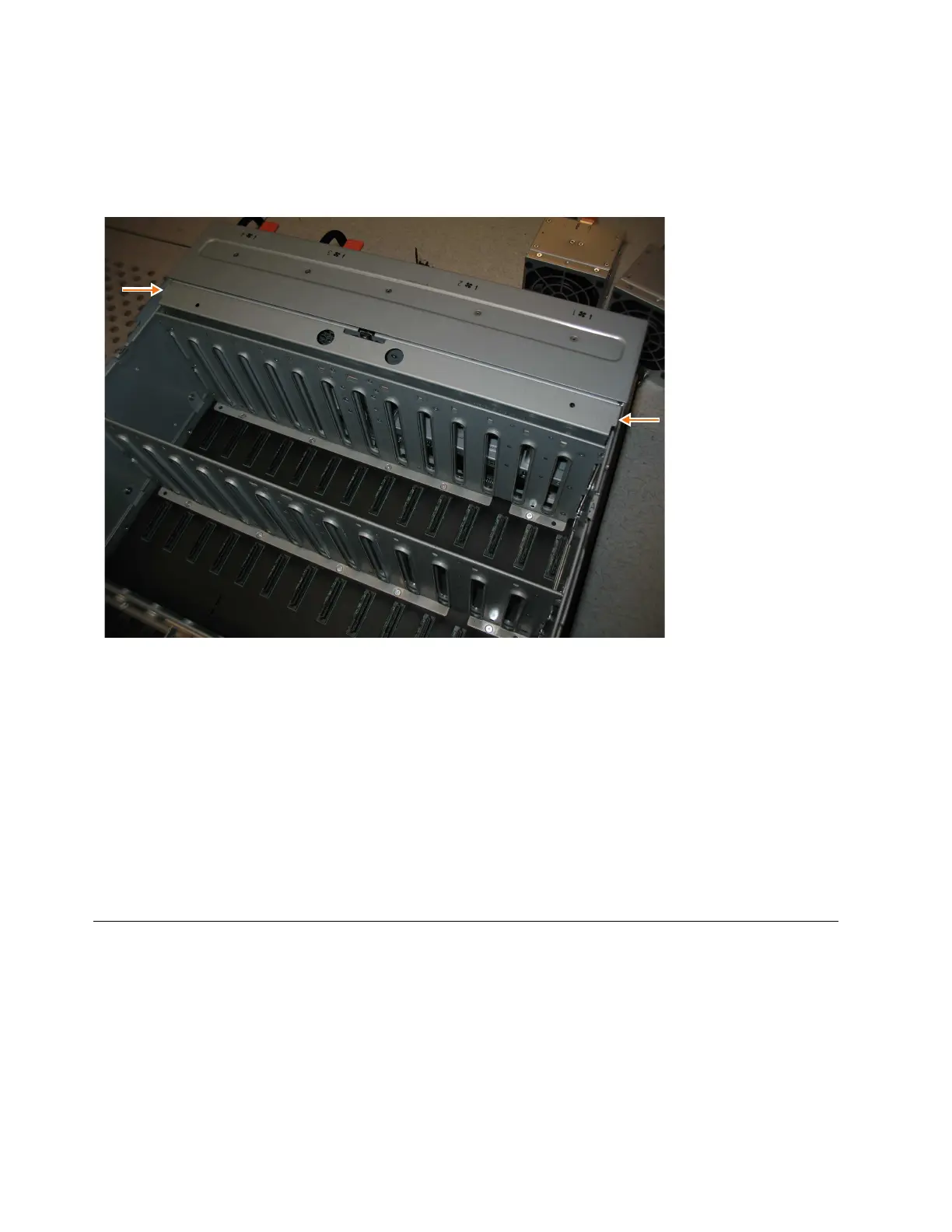

Figure 103. Replace the FIB cover
104 SAN Volume Controller: Model 2145-SV1 Hardware Installation Guide
