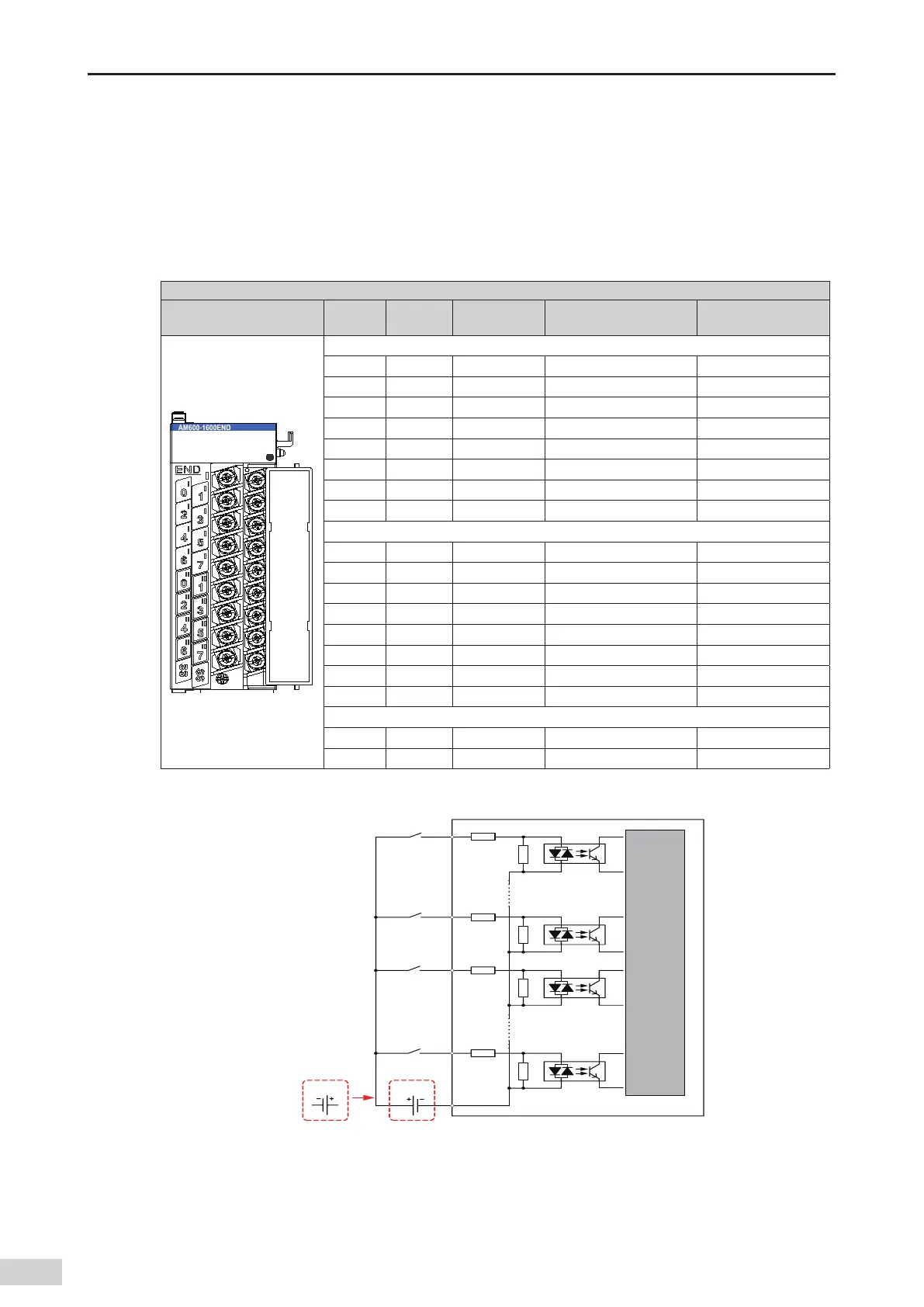

5.6 Wiring of Local Expansion Modules
5.6.1 DI Module
1) AM600-1600END DI module
■
Terminal arrangement and signal de󶍾nitions (AM600-1600END)
DI module AM600-1600END
Terminal Arrangement No.
Terminal
Symbol
Type Function Remarks
4 5 6 73210 I
II
0 1 2 3 7654
Input Interface Group 1
1 I0 Input User input 0 of group 1 Sink/Source input
2 I1 Input User input 1 of group 1 Sink/Source input
3 I2 Input User input 2 of group 1 Sink/Source input
4 I3 Input User input 3 of group 1 Sink/Source input
5 I4 Input User input 4 of group 1 Sink/Source input
6 I5 Input User input 5 of group 1 Sink/Source input
7 I6 Input User input 6 of group 1 Sink/Source input
8 I7 Input User input 7 of group 1 Sink/Source input
Input Interface Group 2
9 I0 Input User input 0 of group 2 Sink/Source input
10 I1 Input User input 1 of group 2 Sink/Source input
11 I2 Input User input 2 of group 2 Sink/Source input
12 I3 Input User input 3 of group 2 Sink/Source input
13 I4 Input User input 4 of group 2 Sink/Source input
14 I5 Input User input 5 of group 2 Sink/Source input
15 I6 Input User input 6 of group 2 Sink/Source input
16 I7 Input User input 7 of group 2 Sink/Source input
Common End Interfaces
17 SS Power Common -
18 SS Power Common -
■
Wiring requirements (AM600-1600END)
*OUFSOBM
DJSDVJU
%$7
44
%$7
0QUPDPVQMFS
JOTVMBUJPO
0QUPDPVQMFS
JOTVMBUJPO
0QUPDPVQMFS
JOTVMBUJPO
0QUPDPVQMFS
JOTVMBUJPO
_ _
ă
*
ă
*
ăă
*
ăă
*
_ _
4PVSDFTJHOBM
JOQVUNPEF
4JOLTJHOBM
JOQVUNPEF
Figure 5-36 DI module AM600-1600END connection
