Inovance AM600 Series Hardware Manual

-98-
Introduction
5.6.3 AI/AO Module
3 AI module AAM600-4AD wiring

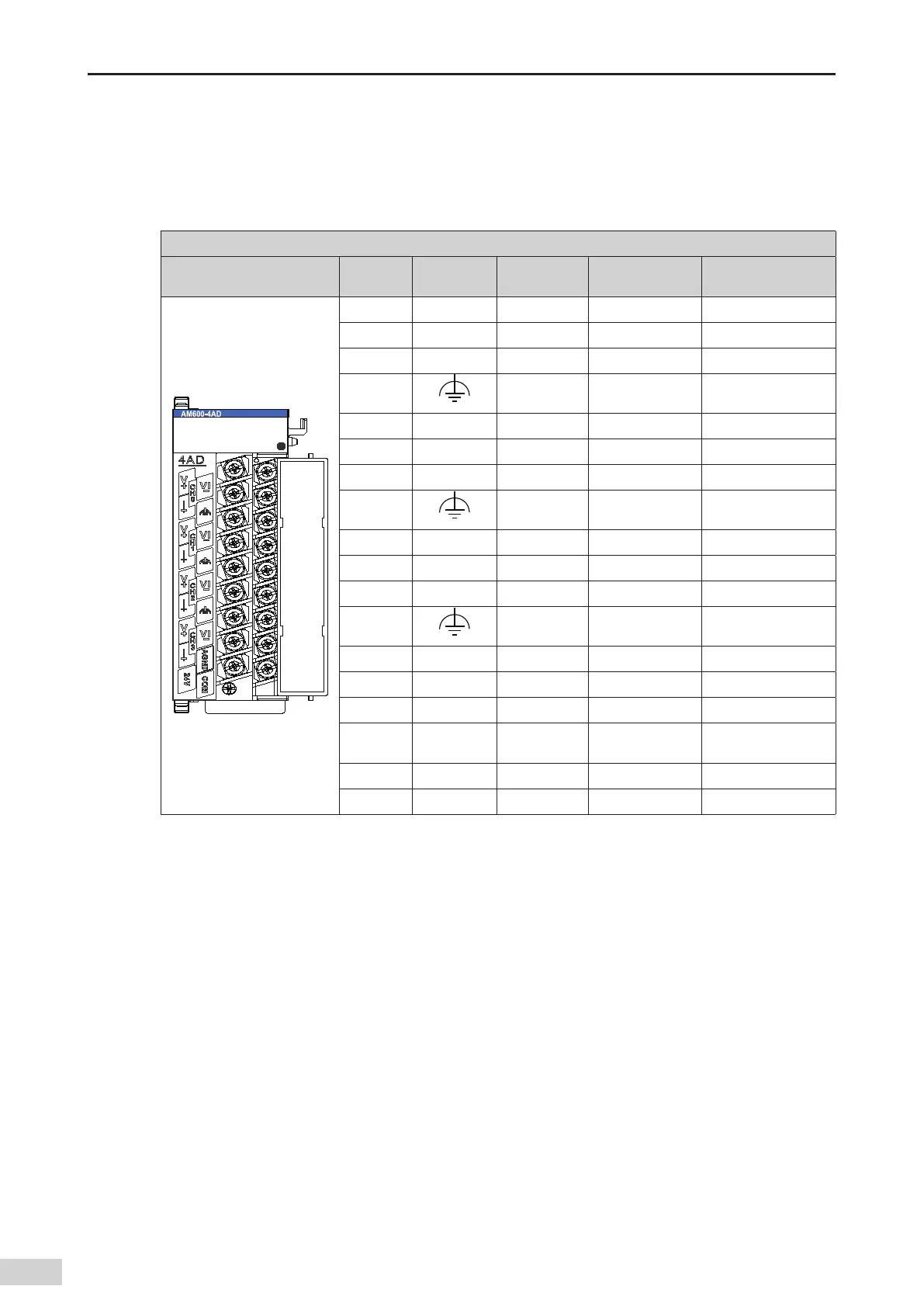

5) Terminal signal arrangement and de󶍾nitions
AI Module AM600-4AD
Terminal Arrangement No.
Terminal
Symbol
Type Function Remarks
RUN
ERR
1 V+ Input V+ of channel 0 Voltage input
2 VI- Input V-/I- of channel 0 Voltage/Current input
3 I+ Input I+ of channel 0 Current Input
4 - Shielding ground
Internally connected
to housing ground
5 V+ Input V+ of channel 1 Voltage input
6 VI- Input V-/I- of channel 1 Voltage/Current input
7 I+ Input I+ of channel 1 Current Input
8 - Shielding ground
Internally connected
to housing ground
9 V+ Input V+ of channel 2 Voltage input
10 VI- Input V-/I- of channel 2 Voltage/Current input
11 I+ Input I+ of channel 2 Current Input
12 - Shielding ground
Internally connected
to housing ground
13 V+ Input V+ of channel 3 Voltage input
14 VI- Input V-/I- of channel 3 Voltage/Current input
15 I+ Input I+ of channel 3 Current Input
16 AGND
Analog
ground
Analog ground -
17 24 V Power 24 V power supply -
18 COM Power ground Power ground -
