8 Specifications and Model Selection
-
120
-
8

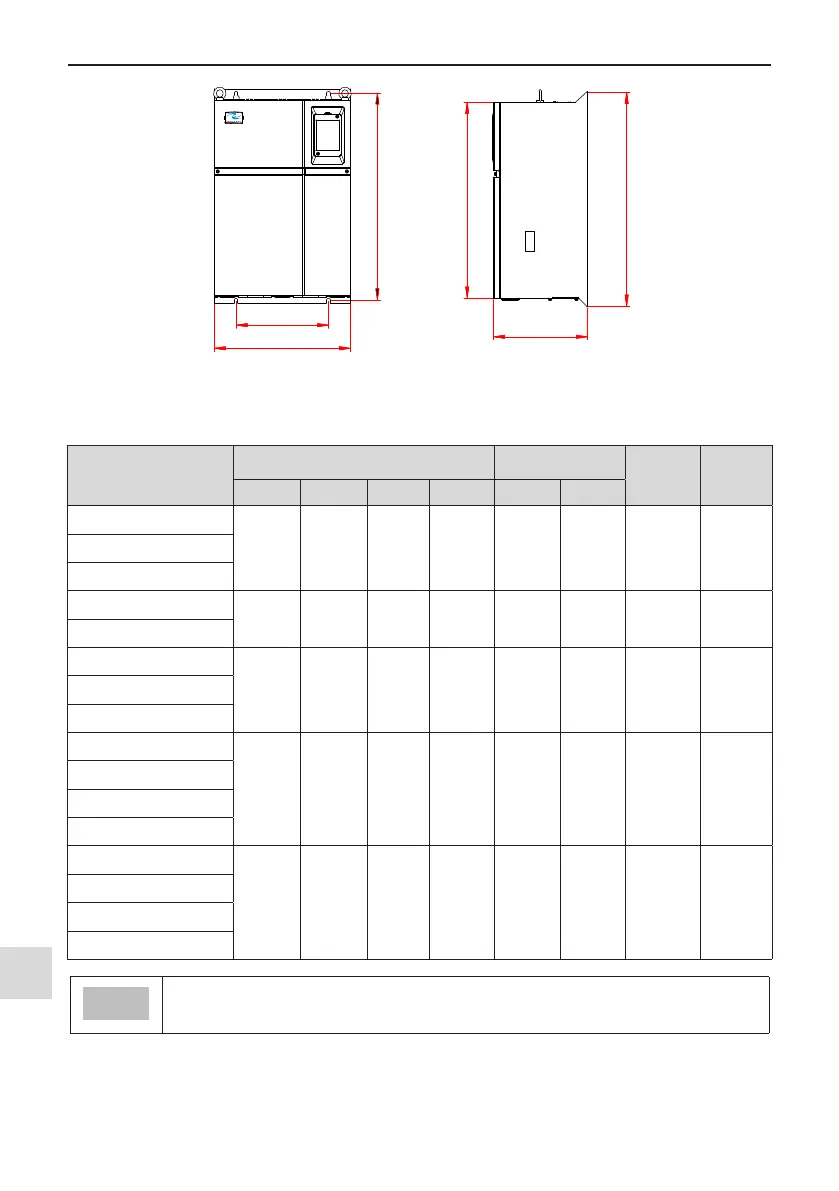

Figure 8-22 Overall dimensions of the AFE unit in MD050
Table 8-11 Overall dimensions of the AFE unit in MD050
MD500 Model
Overall Dimensions (mm)
Hole Dimensions
(mm)
Hole
Diameter
(mm)
Weight
(kg)
H H1 W D A B
MD050-T37G
549 600 385 265 260 580 10 32MD050-T45G
MD050-T55G
MD050-T75G
660 700 473 307 343 678 10 47
MD050-T90G
MD050-T110G
880 930 579 380 449 903 10 90MD050-T132G
MD050-T160G
MD050-T200G
983 1060 650 377 420 1030 12 130
MD050-T220G
MD050-T250G
MD050-T280G
MD050-T315G
1203 1358 800 400 520 1300 14 200
MD050-T355G
MD050-T400G
MD050-T450G
● For installation and use of the AFE unit, refer to 19010310 MD051 AFE User Manual or 19010130
MD050 AFE User Manual.
