Inovance MD500 User Manual

5 Basic Operations and Trial Run
-
68
-
5
5.7.3 Start/Stop via Communication
The controller can start/stop the AC drive via various communications. When using communication functions,
the relative parameters F0-02 and F0-28 are needed to be set according to different communication types,
refer to the following table. In addition, an optional communication extension card is needed. For information
about optional communication cards, refer to Appendix A Expansion Optional Cards.
Setting Procedure Function Code Description
Use frequency command to
set the serial communication
mode
F0-02 F0-02 = 2
Select serial communication
mode
F0-28
Modbus protocol F0-28 = 0
PROFIBUS-DP protocol F0-28 = 1
CANopen protocol F0-28 = 1
CANlink is always valid and does not need to be set.
5.8 Start the AC Drive
5.8.1 Start Mode
F6-00
Start mode Default 0
Setting Range
0 Direct Start
1 Catching a Spinning Motor
2 Pre-excited start
3 SVC quick start
0: Direct start
If the DC injection braking time is set to 0, the drive will start from the setting start-up frequency (F6-03). If the
DC injection braking time is not set to 0, the drive will start DC braking rstly and then start from the setting
start-up frequency (F6-03). This DC injection braking function is applicable to small-inertia loads which is easy
to slip during startup stage.
It is applicable to most small-inertia loads, the frequency curve is shown in the following gure. The DC injec-
tion braking function is applicable to drive load such as elevator and crane. Start frequency is applicable to
drive equipment which requires startup torque, such as cement mixer.
F6-07
Acceleration/
deceleration mode
F
0-10
Max. frequency
F0-17
Acceleration time
f
t
Running command
F6-00
=0: Direct start
0
1
2
F6-03
Startup frequency
DC injection
braking time
F6-
06
F
6-04
Startup frequency
retention time
F 0-10
Max. frequency
F0-17
Acceleration time
f
t
Running command
Default value:
F6-06=0.0s;
F6-03=0.00Hz;
F6-04=0.0s;
F6-07=0.
F6-00 = 0: Direct start

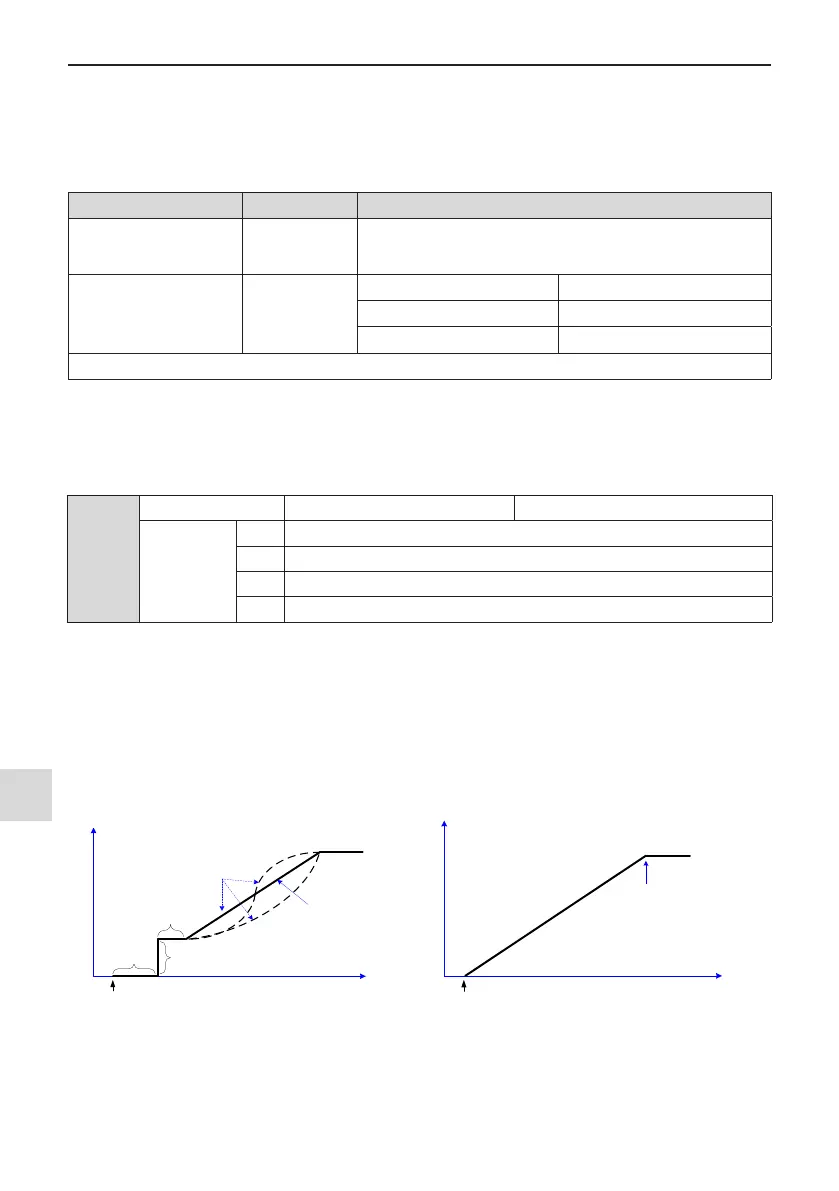

Figure 5-9 Direct start
