Inovance MD500 User Manual

Appendix A
-
139
-

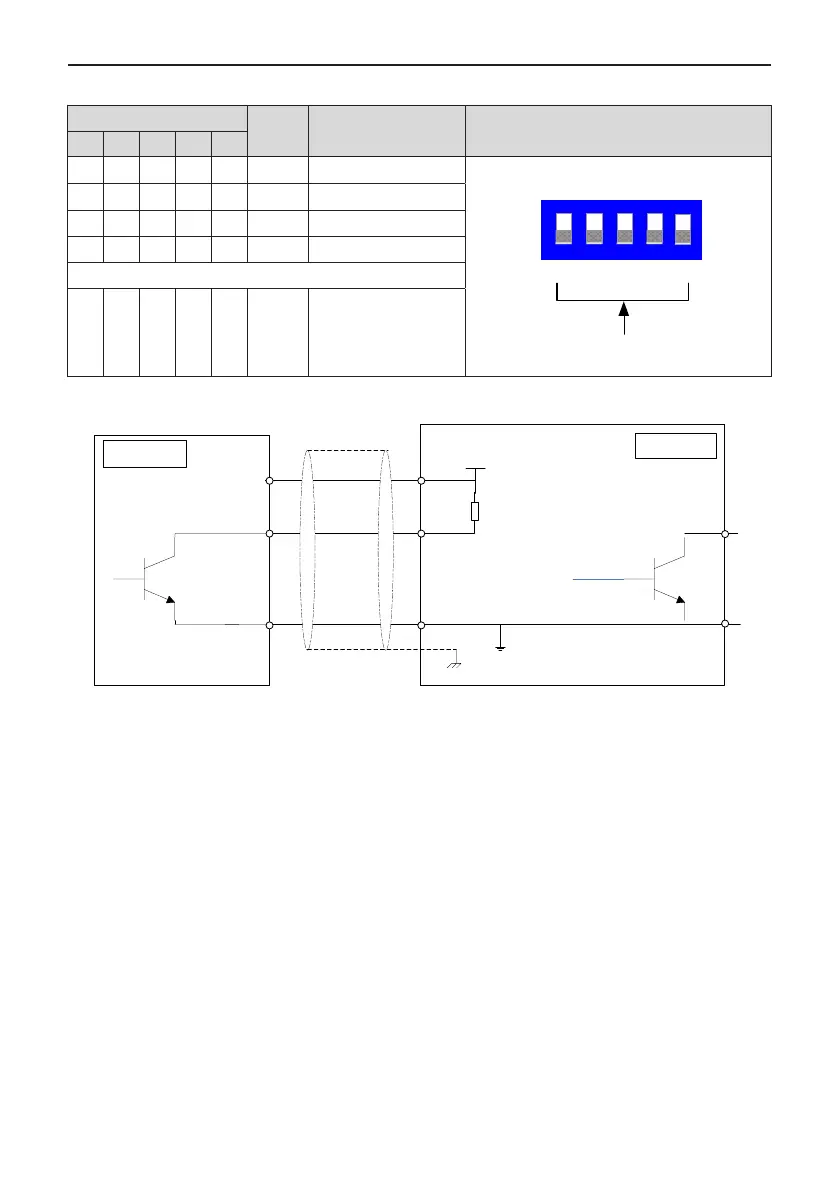

Table A-15 Descriptions of DIP Switch of MD38PG5D
DIP Switch Setting
Value
Frequency Dividing
Coefcient
DIP Switch
1 2 3 4 5
0 0 0 0 0 0 No output
ON
1
2
3
4 5
1 2 3 4 5
Frequency dividing
coefficient setting
S1
0 0 0 0 1 1 No output
0 0 0 1 0 2 Frequency divided by 4
0 0 0 1 1 3 Frequency divided by 6
…
1 1 1 1 1 31 Frequency divided by 62
COM
15V
A,B,Z
0V
VCC
A,B,Z
PE
Shield
A1,B1
COM
Frequency
dividing output
PG card
Encoder
Figure A-7 Port circuit of MD38PG5 and MD38PG5D
