3 Installation and Wiring
-
22
-
3
A
Clearance Requirements
A
0.4kW~15kW
30kW~37kW
45kW~160kW
Power Rating
18.5kW~22kW
A≥10
A≥50
A≥50
Clearance
Requirements (mm)
A≥10

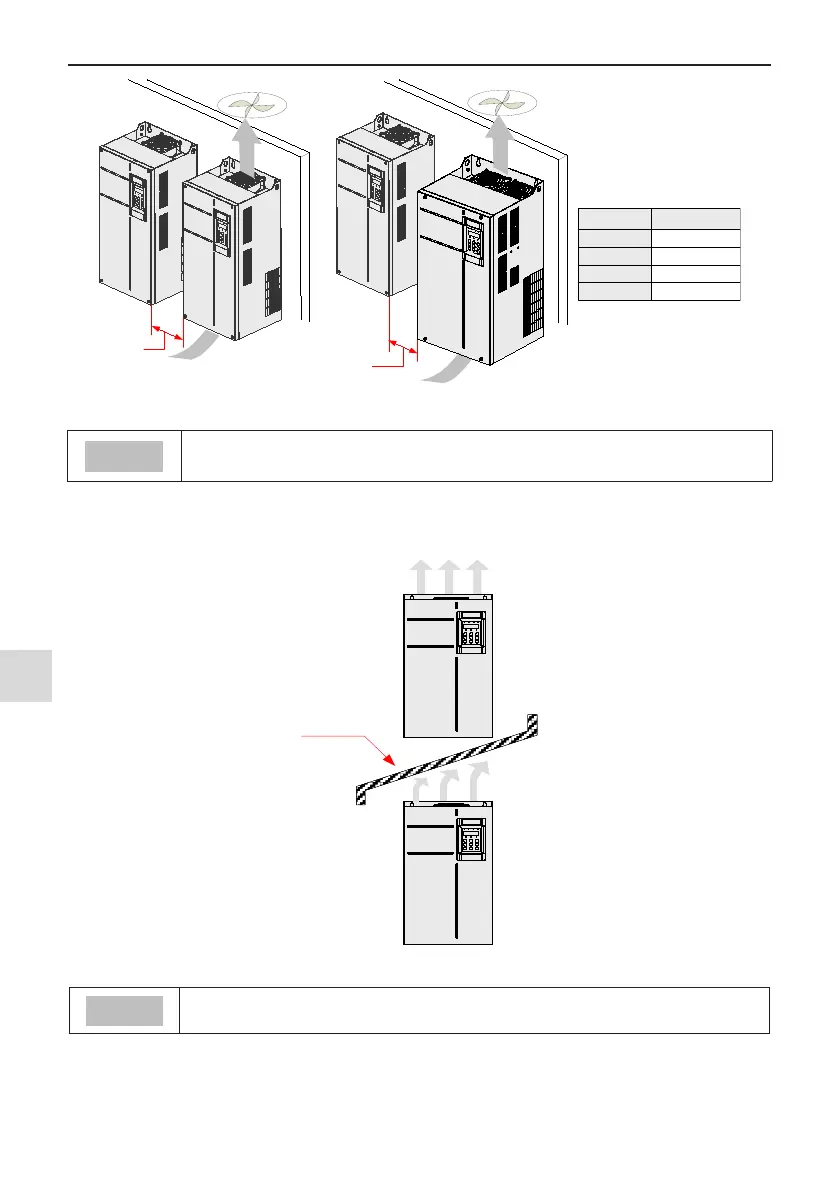

Figure 3-4 Clearance for multi-drive installation (MD500T0.4GB to MD500T160G)
● MD500T200G(-L) to MD500T450G(-L) support only single-drive installation. For multi-drive
installation, contact the manufacturer.
■
Installation of an air guide plate
Where an AC drive is required to be mounted directly above another AC drive, it is recommended to install an
Air Guide Plate to divert exhaust cooling air of the bottom unit away from the top unit.
Figure 3-5 Installation of an air guide plate
● MD500T200G(-L) to MD500T450G(-L) do not support this mode.
