– 105 –
(3) Bank function setup
The bank function means a function of sewing effected through changeover to a pattern by an external signal,
which is registered in multiple pattern buttons in cases of cassette discrimination and others.
For sewing by the bank function, an external signal input is entered before the feeding frame is lowered at the
time of pedal treading-on. According to the input condition, a maximum of 16 patterns can be used for changeover.
(A sewing pattern is displayed when the pedal is trodden on.)
When the bank function is used, the fixed refuge position preset in regard to “5.-(2) Fixed escape position
setting” is automatically enabled.
The reason is that the feeding frame in ordinary operation is made ready at the start of sewing (or the second
origin). This function is always possible if there is only one sewing pattern. In the case of the bank function,
however, the next sewing pattern is not always coinciding with the previous sewing pattern (or the second
origin) at the start of sewing. Therefore, it is necessary to use this refuge position function to secure the same
standby position for the feeding frame.
1. It is not always necessary to set up the memory switch K090 because the fixed refuge position mode is automati-
cally secured for the bank function.
2. The fixed refuge position, defined by the fixed refuge position Coordinate X of Memory Switch K117 and the fixed
refuge position Coordinate Y of Memory Switch K118, is regarded as the standby position of the feeding frame
for the bank function.
In standard setting, the feeding frame stops at the origin because the conditions are set at X:0 and Y:0. An
arbitrary position can be set up with the memory switches K117 and K118.
The bank functions and the input terminals can be set up with the following memory switches:
(1) Bank function setup

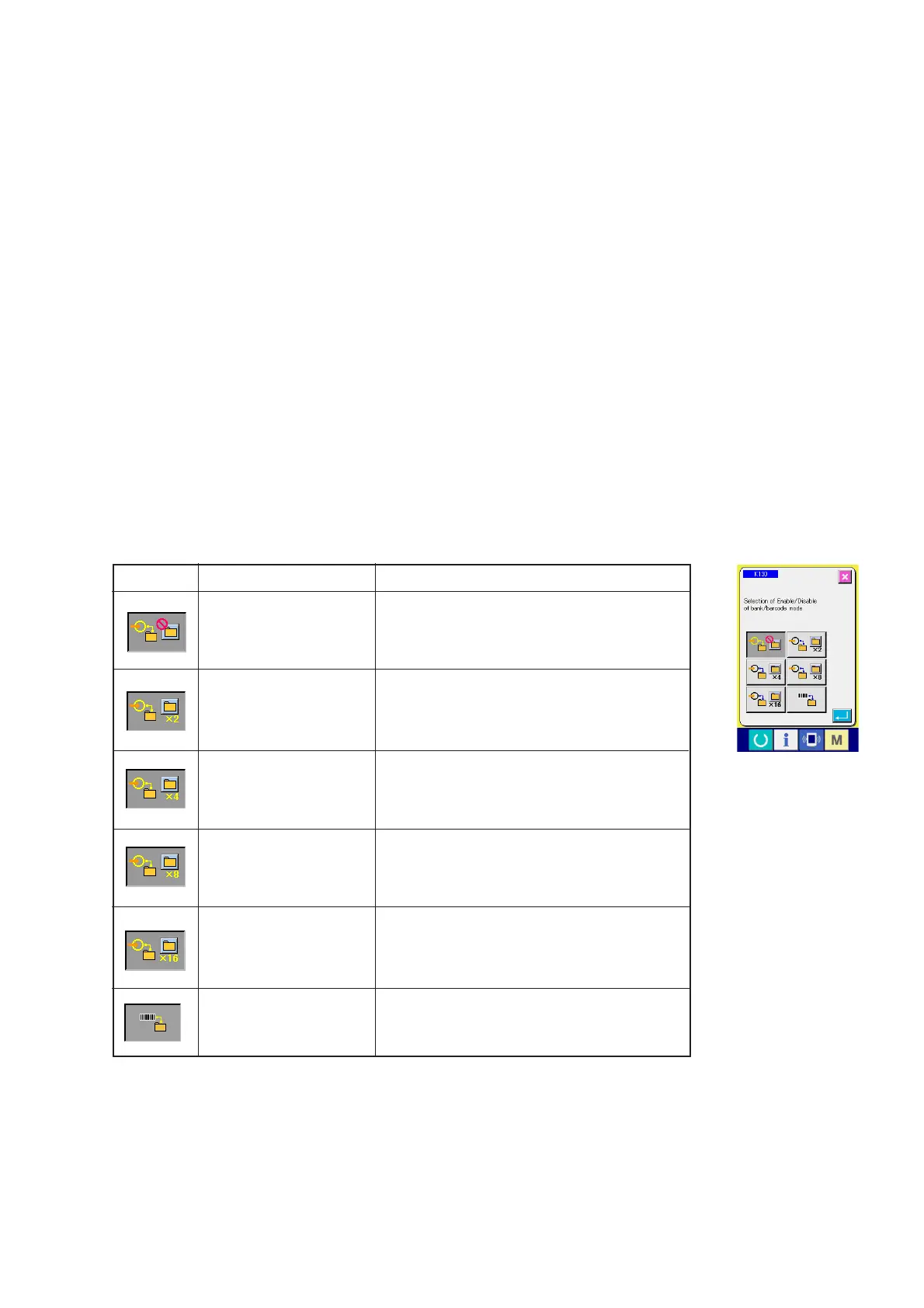

The memory switch K130 is used to set up the number of banks (quantity of input terminals).
Setup Contents Explanation
Bank/bank code invalid The bank and bank code functions are not
used.
No. of banks 2 Two patterns are set for the number of banks.
One Input Terminal 0 is used.
No. of banks 4 Four patterns are set for the number of banks.
Two Input Terminal 0 to 1 are used.
No. of banks 8 Eight patterns are set for the number of banks.
Three Input Terminal 0 to 2 are used.
No. of banks 16 Sixteen patterns are set for the number of banks.
Four Input Terminal 0 to 3 are used.
Barcode function valid The barcode function is used.
Refer to the instruction manual of the
barcode function for the details.
To Next Page
