– 12 –

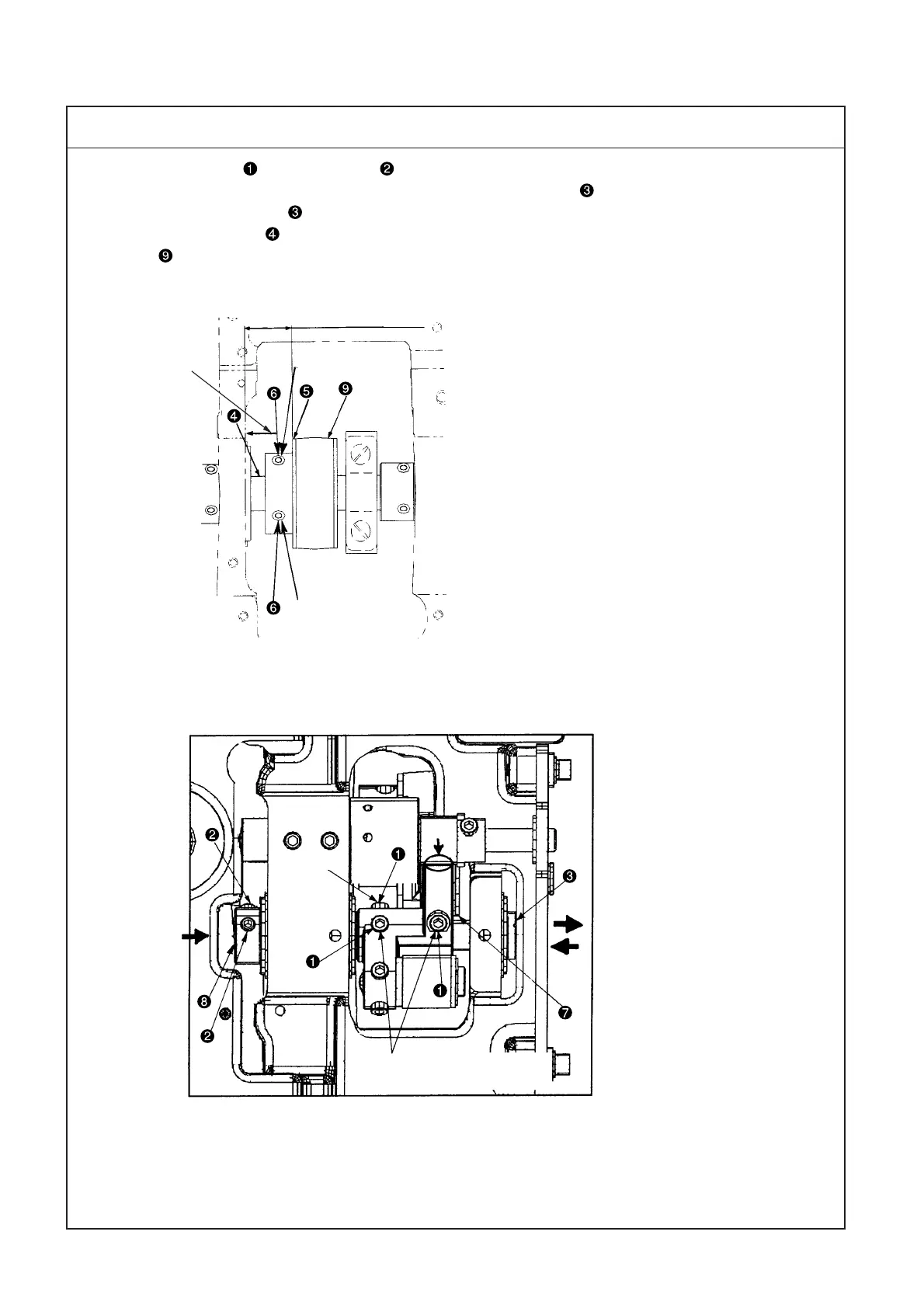

(6) Crank rod connection/disconnection
1. Loosen 3 setscrews and 2 setscrews . On this occasion, loosen No. 2 setscrews first, and completely
disengage No. 1 setscrews from the flat section of the oscillator shaft .
2. Pull out the oscillator shaft in the direction of Arrow A.
3. Remove the main shaft according to “3.-(4) Main shaft connection/disconnection”, and remove the crank
rod unit .
22.1 to 22.6mm
Face B
No. 2 setscrew
No. 1 setscrew
C
A
E
D
Procedures of disassembling
No. 1 setscrew
No. 2 set
screw
