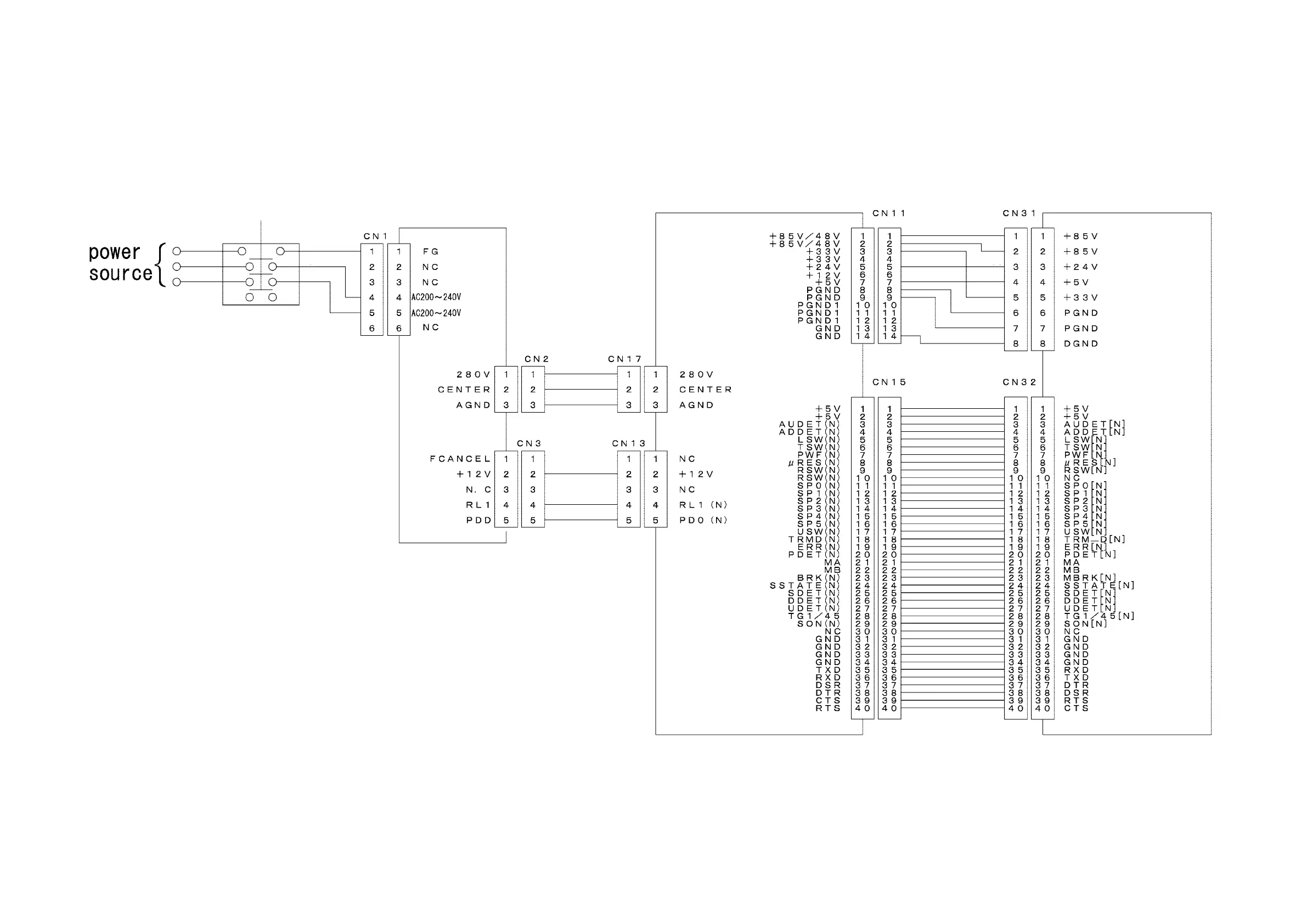

(4) Power supply circuit diagram C
– 242 –
POWER SWITCH
Green/
Yellow
Brown
Light Blue
FLT-S BOARD
SDC BOARD MAIN BOARD
Green/Yellow
Brown
Light Blue
White
White
Yellow
Red
Orange
Black
Black
Black
Red
White
Black
Brown
White
Yellow
