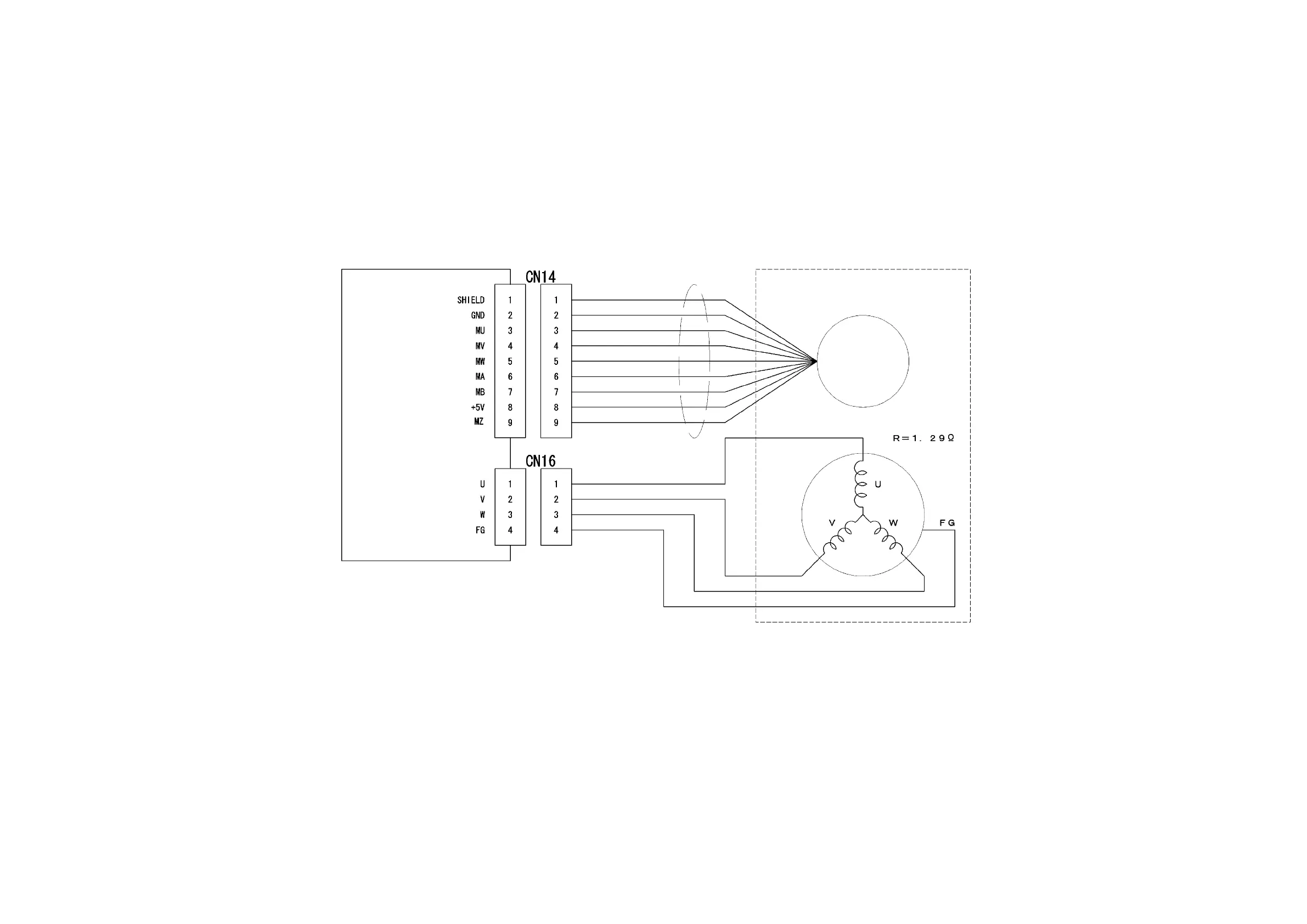

(5) Servo motor circuit diagram
– 243 –
ENCODER
SDC BOARD
AC SERVO MOTOR
Black
Red
White
Green + Yellow
White (Drain line)
Black
Orange
Blue
Purple
Light Blue
Pink
Red
Yellow
