JUKI AMS-221EN Series User Manual

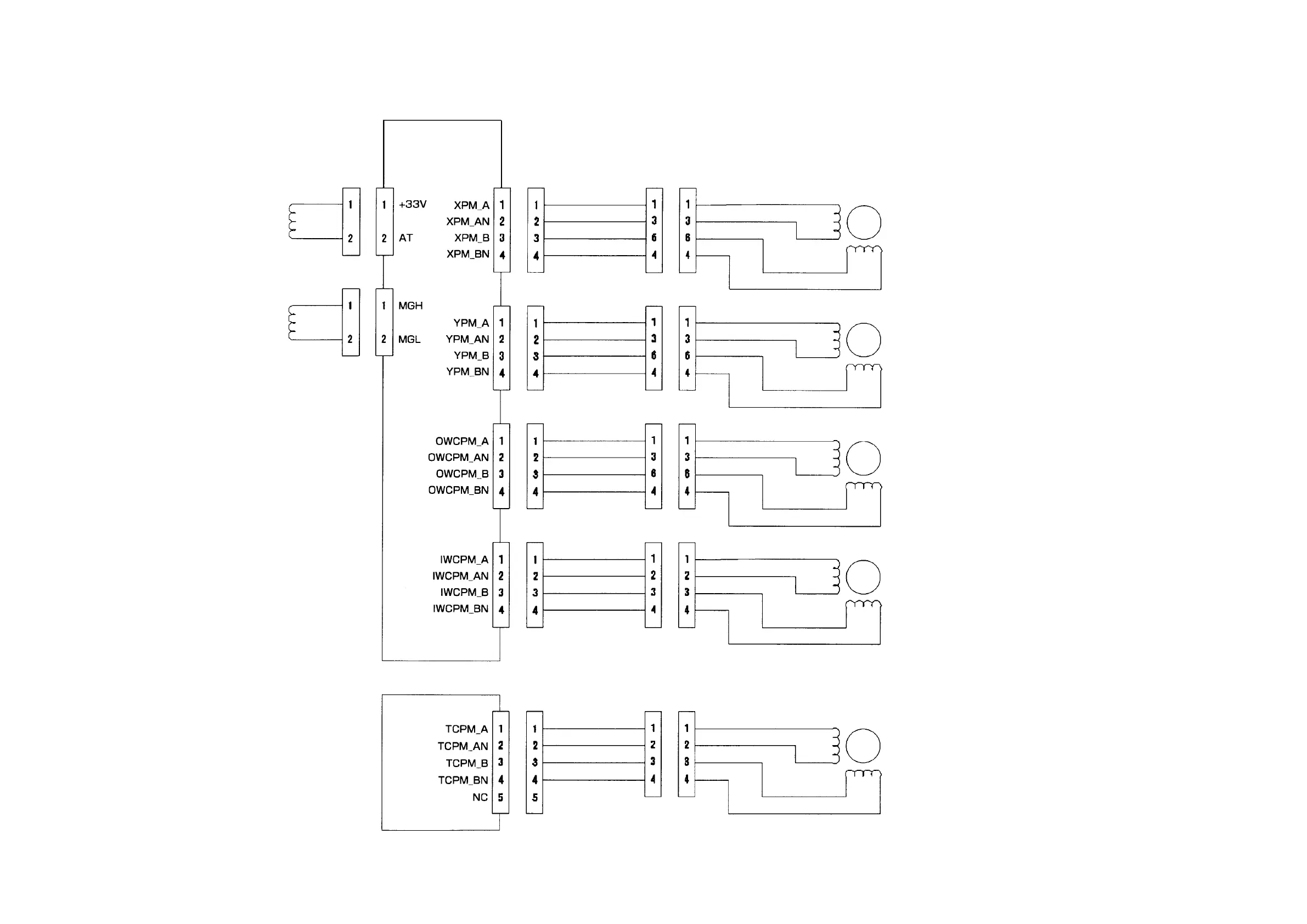

(8) Motor•solenoid circuit diagram
– 246 –
X feed motor
R = 1.05
Ω/1ø
AT solenoid
R = 13.8
Ω
White
Black
Wiper solenoid
R = 5Ω
CN39 (Yellow)
Y feed motor
R = 1.05Ω/1ø
Thread trimmer lifting the work clamp foot motor
R = 0.45Ω/1ø
Needle thread clamp motor
R = 1.5Ω/1ø
Intermediate presser motor
R = 1.5
Ω/1ø
Black
White
CN47 (White)
MAIN BOARD
Yellow
Blue
Red
Orange
CN40 (Red)
Yellow
Blue
Red
Orange
CN41 (White)
Yellow
Blue
Red
Orange
CN42 (Black)
Yellow
Blue
Red
Orange
CN43 (Blue)
Yellow
Blue
Red
Orange
CN22 (White)
SUB BOARD
